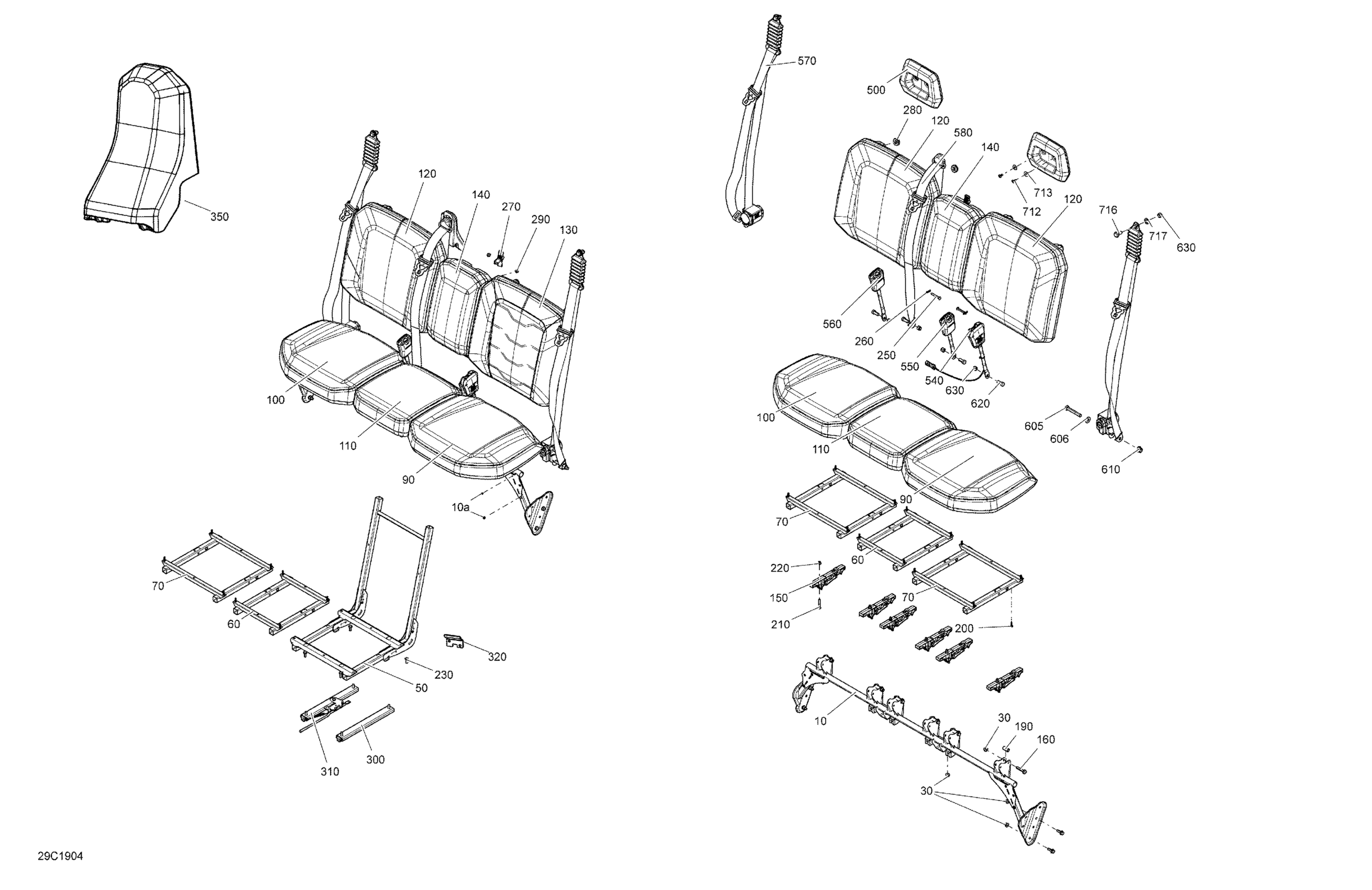

Can-Am Defender MAX HD8 - 2019 Seat Diagram

#

Description
Price

10

Seat Member | Includes 10 to 10a7

708002817

$126.09

10

Seat Member | Includes 10 to 10a8

703501076

$139.99

10a

Pop Rivet 3/16"

390402200

$0.30

30

Hex. Flange Elastic Nut M8

233281414

$1.31

50

Operator Seat Member | Includes 50 to 50a7

708001723

$296.24

50a

Pop Rivet 3/16"

390402200

$0.30

60

Mid Seat Member

708002815

$182.81

70

Passenger Seat Member

708002821

$182.81

90

LH Cushion Ass'y

708002544

$261.16

90

LH Cushion Ass'y

708002545

$261.16

90

LH Seat Base Ass'y

708002661

$253.70

90

LH Cushion Ass'y

708002789

$223.85

100

RH Cushion Ass'y

708001498

$255.94

100

RH Cushion Ass'y

708001926

$255.94

100

RH Seat Base Ass'y

708002663

$253.70

100

RH Cushion Ass'y

708002791

$223.85

110

Central Cushion Ass'y

708001629

$223.85

110

Central Cushion Ass'y

708001928

$223.85

110

Central Seat Base Ass'y

708002659

$253.70

110

Central Cushion Ass'y

708002793

$223.85

120

Backrest Ass'y

708001701

$379.99

120

Backrest Ass'y

708001995

$349.99

120

Backrest Ass'y

708002667

$349.99

120

BACKREST ASSY - Call your local BRP dealership

708002797

Unavailable

120a

Rubber Bumper

293830005

$6.12

130

Backrest Ass'y | Includes 130 to 130d

708001930

$349.99

130

Backrest Ass'y | Includes 130 to 130d

708002514

$349.99

130

BACKREST ASSY - Call your local BRP dealership

708002795

Unavailable

130a

Rubber Bumper

293830005

$6.12

130

Backrest Ass'y | Includes 130 to 130d

708002665

$349.99

140

Center Backrest Ass'y | Except Package XT, Cab

708001630

$349.99

140

Center Backrest Ass'y | Package XT, Cab

708001932

$349.99

140

Backrest Ass'y | Break Up Country Camo Models

708002668

$349.99

140

Center Backrest Ass'y

708002798

$349.99

150

Seat Base Pivot

708002581

$9.33

160

Hex. Flange Screw M8 X 45

207684544

$3.57

170

Hex. Flange Elastic Nut M8

233281414

$1.31

175

Hex. Flange Elastic Nut M8

233281414

$1.31

190

Bushing

708001903

$2.85

200

Torx Screw Truss Head K50X20 T20

250000760

$2.00

210

Hex. Screw M6 X 45

207064544

$1.96

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

230

Hex. Screw M8 X 20

207182044

$0.70

250

Pin

250400069

$2.88

260

Hairpin Cotter

269800431

$0.97

270

Latch

269501487

$14.90

280

Grommet

517303756

$3.61

290

Rubber Bumper

293830005

$6.12

300

LH Rail

708000848

$52.99

310

RH Rail | Package XT, Cab

708002001

$35.99

320

Seat Stopper

708003672

$2.59

330

Pop Rivet 3/16"

390402200

$0.30

350

Cover

708002293

$35.04

500

Headrest

708002853

$52.21

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$60.42

560

Passenger Buckle

708002329

$60.42

570

Lateral Safety Belt

708002642

$203.70

580

Central Safety Belt

708002643

$223.85

605

Hex. Screw M12 X 80

207028046

$3.73

606

Flat Washer M12

250200102

$2.00

610

Elastic Flange Nut M12

233221416

$2.67

620

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.79

630

Lock Nut Nylon 7/16

250100183

$1.88

712

Torx Truss Screw M6 X 16

250000721

$1.60

713

Flat Washer M6.6 X 22

250200162

$2.19

716

Safety Belt Screw

708000890

$3.79

717

Position Washer

708000891

$0.97

750

Torx Screw Truss Head K50X20 T20

250000760

$2.00
