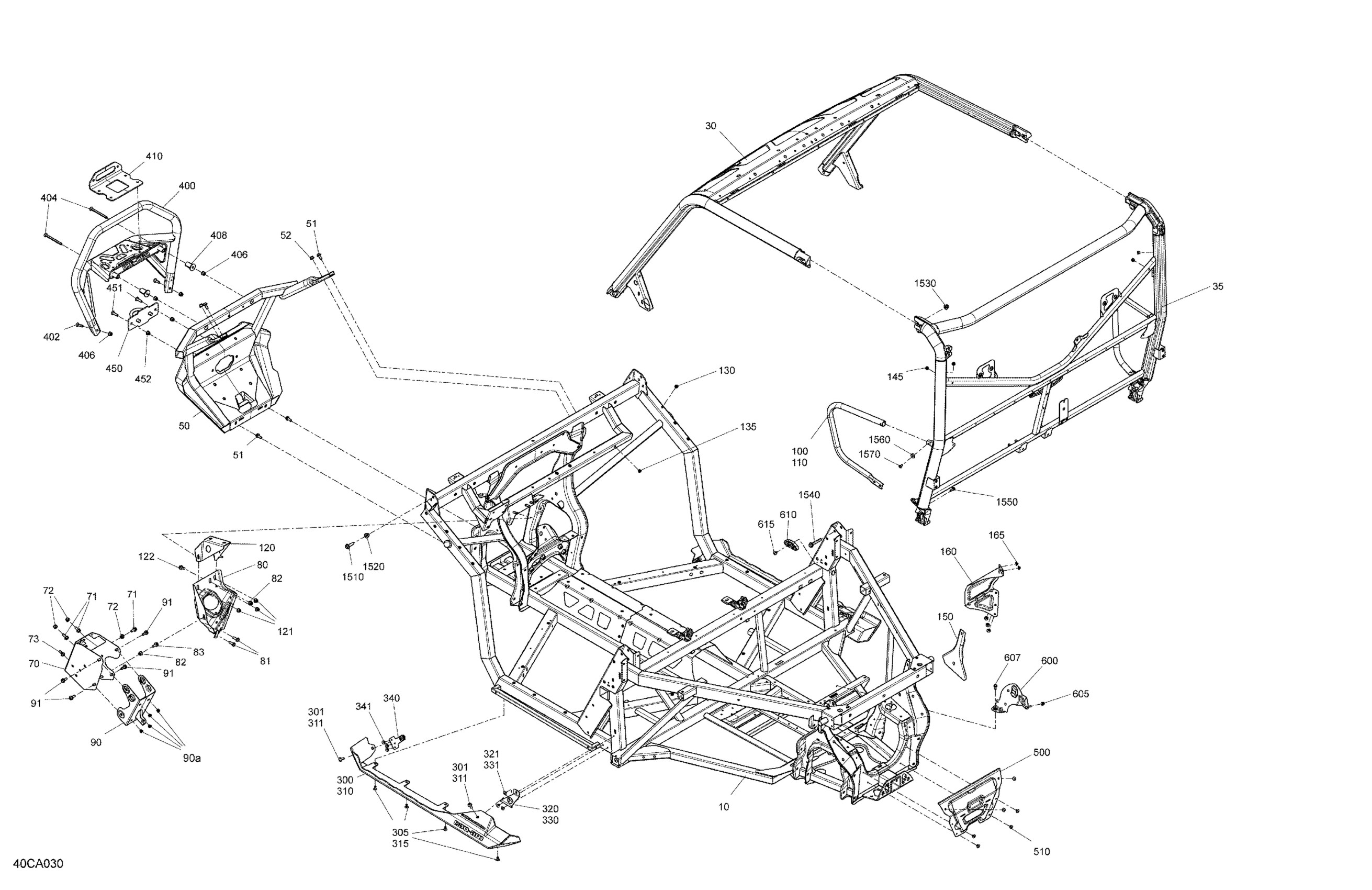

Can-Am Defender HD10 - XMR - 2021 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009069

$3,159.99

30

Deep Black, Front Cage Service Kit

715008354

$649.99

30

Front Cage Profile Ass'y | Manta Green

715006510

$649.99

35

Rear Cage Profile Ass'y

715007384

$649.99

35

Rear Cage Profile Ass'y | Manta Green

715006514

$649.99

50

Deep Black, Front Bumper

705207588

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Elastic Flange Nut M8

233281416

$1.48

70

Module Support

705209388

$61.99

71

Hex. Flange Screw M8 X 20

207682044

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

80

Power Steering Support

705208741

$70.99

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

82

Hex. Elastic Flange Nut M8

233281416

$1.48

83

Hex. Flange Screw M8 X 20

207682044

$1.15

90

Steering Column Support | Includes 90 to 90d

705209190

$37.99

90a

Insert Half Hex Body M6 x 1.0

250100199

$3.19

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

100

Deep Black, LH Protector Tube

705204594

$44.49

100

Manta Green, LH Side Protector | Manta Green

705208209

$44.49

110

Deep Black, RH Protector Tube

705204592

$44.49

110

Manta Green, RH Side Protector | Manta Green

705208211

$44.49

120

Support

705208742

$30.99

121

Hex. Elastic Flange Nut M8

233281416

$1.48

122

Hex. Flange Screw M8 X 20

207682044

$1.15

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Insert Half Hex Body M6 x 1.0

250100199

$3.19

145

Insert Half Hex Body M6 x 1.0

250100199

$3.19

150

Heat Shield

705014849

$2.59

160

Heat Shield

707002717

$51.99

165

Pop Rivet 3/16"

293150103

$0.55

300

Manta Green, LH Guard Panel | Manta Green

705208694

$276.49

300

Deep Black, LH Guard Panel

705208686

$276.49

301

Torx Truss M8 X 25

250000874

$2.11

305

Pop Rivet 3/16”

293150108

$1.19

310

Manta Green, RH Guard Panel | Manta Green

705208695

$276.49

310

Deep Black, RH Guard Panel

705208687

$276.49

311

Torx Truss M8 X 25

250000874

$2.11

315

Pop Rivet 3/16”

293150108

$1.19

320

LH Rock Slider Support

705206342

$45.99

321

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

330

RH Rock Slider Support

705206343

$45.99

331

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

340

Front Guard Support

705208661

$5.39

341

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

400

XMR FRONT BUMPER - Call your local BRP dealership | Model Manta Green

715006144

Unavailable

400

Deep Black, Front Bumper

715006143

$350.99

402

Torx Screw M8 X 30

250000886

$2.11

404

Torx Truss M/S M8 x X 100

250001106

$7.97

406

Hex. Elastic Flange Nut M8

233281416

$1.48

408

Spacer

705207754

$14.49

410

Deepo Black, Winch Support | Includes 53a to 53a

705211620

$56.99

450

Can-Am Red, Front Tow Hook

705211623

$33.99

451

Torx Screw M8 X 30

250000886

$2.11

452

Hex. Elastic Flange Nut M8

233281416

$1.48

500

Rear Chassis Reinforcement

705207753

$33.99

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

600

Voltage Regulator Support

710007522

$17.49

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

610

Spacer

705208203

$20.99

615

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1510

Hex. Flange Screw M10 X 35

250000855

$1.89

1520

Hex. Flange Elastic Nut M10

233201436

$2.11

1530

Flange Elastic Nut M10

233201466

$3.17

1540

Hex. Flange Screw M10 X 6

207606046

$4.12

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1560

Offset Washer

705202223

$4.14

1570

Torx Truss M6X14

250000789

$5.39
