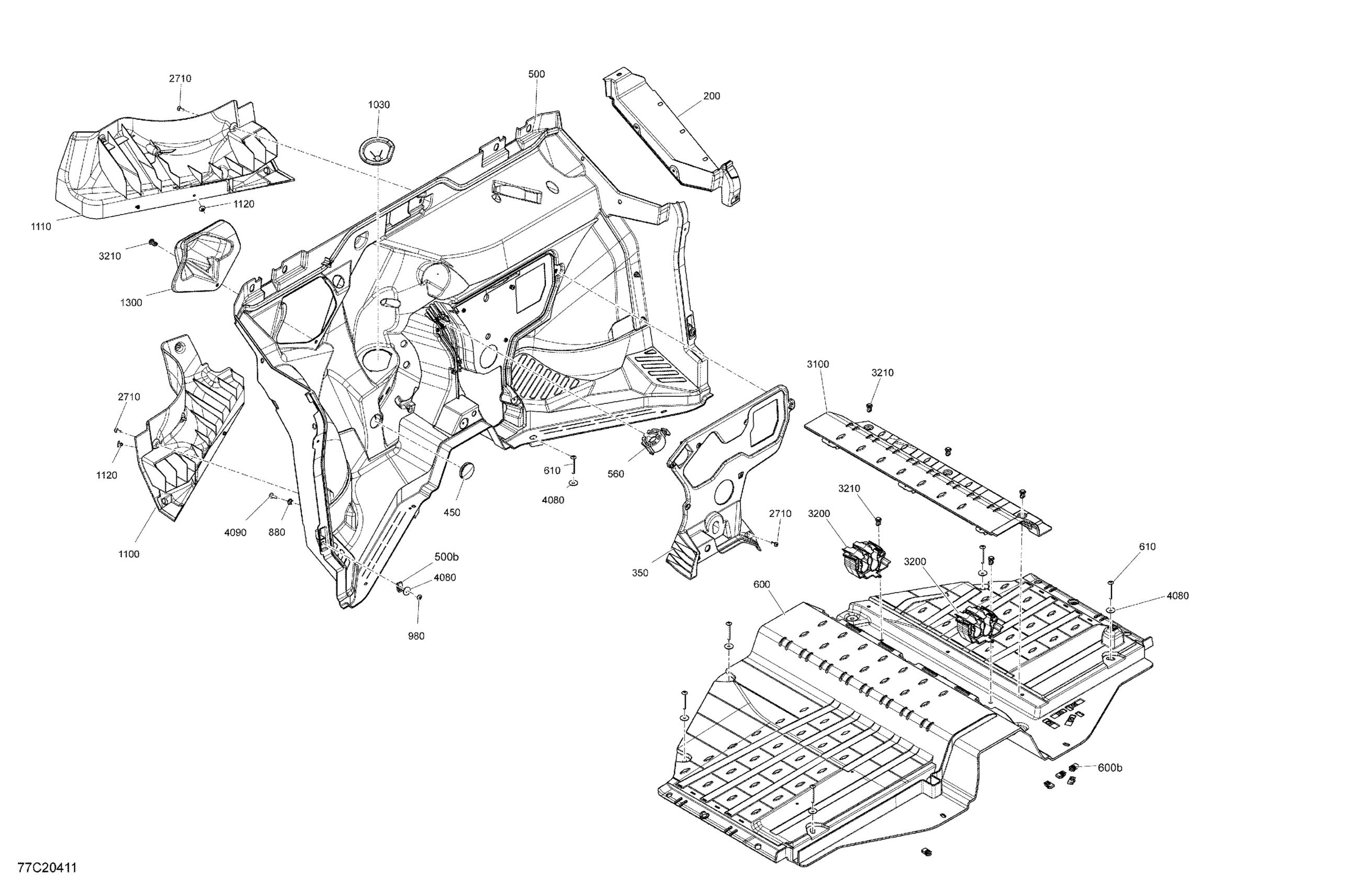

Can-Am Defender HD10 - CAB - 2020 Cab Interior - Fire Wall Diagram

Description

Price

200

RH Upper Deflector

707900739

$54.99

350

Front Panel Trim

707900741

$44.99

450

Rubber Cover

293250242

$6.99

500

Front Cab Panel Ass'y | Includes 500 to 500b

707900981

$219.99

500b

Panel Nut M6 X 1.0

250100198

$2.11

560

Split Grommet

707900719

$4.39

600

Floor Ass'y | Includes 600 to 600b

707900431

$229.99

600b

Panel Nut M6 X 1.0

250100198

$2.11

610

Torx Truss M6 X 50

250000868

$2.11

880

Hex. Flange Elastic Nut M6

233261494

$1.58

980

Torx Truss Screw M6 X 25

250000807

$2.11

1030

Sterring Column Trim

707900851

$6.09

1100

LH Front Deflector

707900750

$54.99

1110

RH Front Deflector

707900751

$54.99

1120

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1300

Exterior Cover

707900389

$14.49

2340

Panel Nut M6 X 1.0

250100198

$2.11

2710

Torx Screw K50 X 16

250000720

$1.69

3100

Floor Panel

707900806

$43.99

3200

Hose Support

707900325

$14.49

3210

Tuflok Plastic Rivet

293150230

$1.47

4080

Flat Washer M6.6 X 22

250200162

$2.32

4090

Torx Screw M6 X 20

250000722

$1.68
