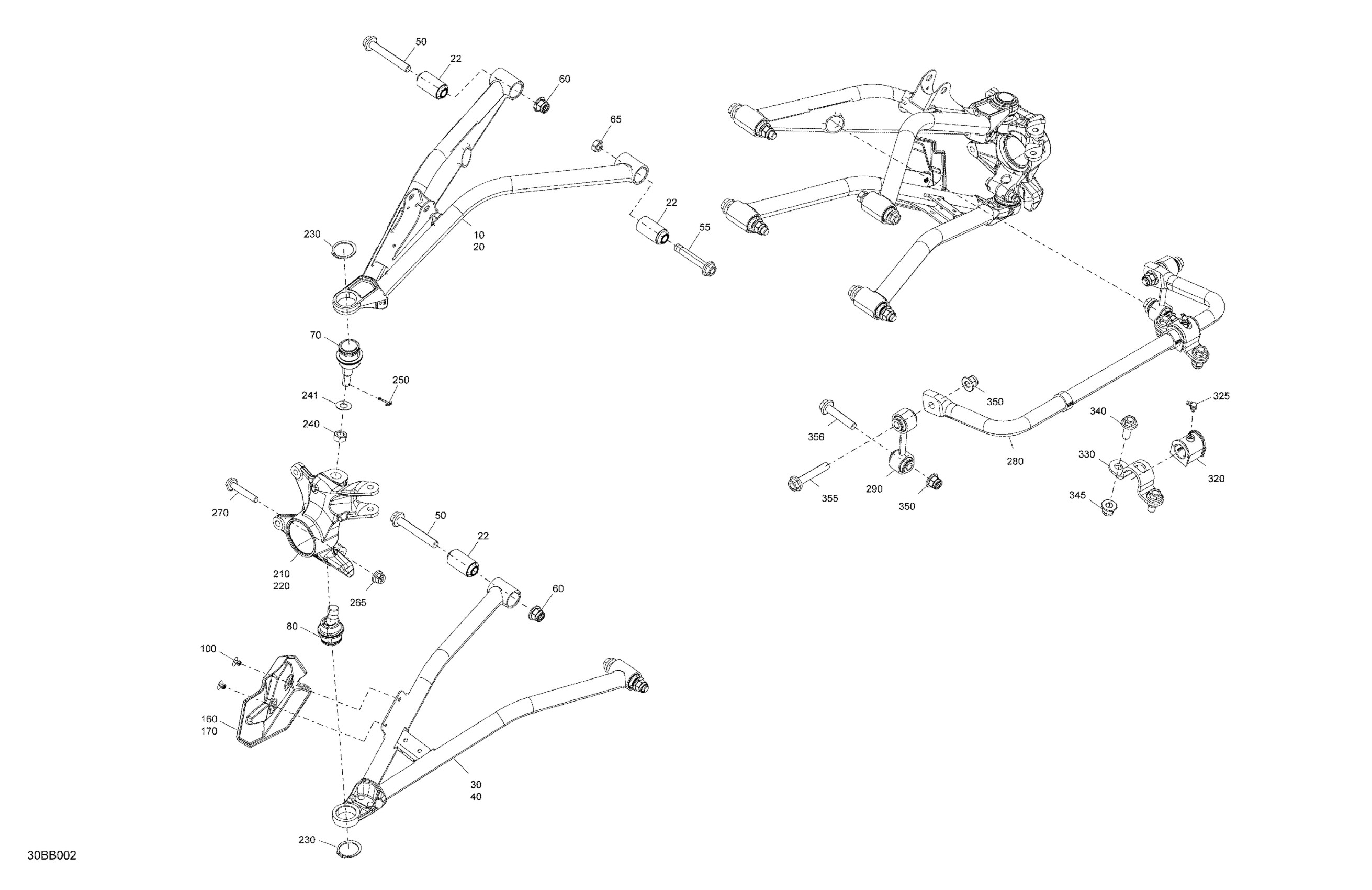

Can-Am Commander 1000R EFI - XT - 2022 Suspension - Front Components Diagram

#

Description
Price

10

LH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203896.

715010749

$279.99

20

RH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203897.

715010758

$279.99

22

Suspension Arm Bushing

706003528

$3.91

30

LH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203908.

715010767

$279.99

40

Deep Black, RH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203909.

715010774

$279.99

50

Hex. Flange Screw M12X1.75X85

250001168

$3.38

55

Hex. Flange Screw M12X1.75X85

250001168

$3.38

60

Elastic Flange Nut M12

233221466

$2.89

65

Elastic Flange Nut M12

233221466

$2.89

70

Ball Joint

706203084

$35.99

80

Ball Joint

706202045

$35.99

100

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

160

RH CV joint Guard

706202135

$11.01

170

LH CV joint Guard

706202134

$11.01

210

LH Front Knuckle

706202842

$211.99

220

RH Front Knuckle

706202844

$211.99

230

Circlip

293370035

$2.64

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

265

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Hex. Flange Screw M10 X 55

207605546

$2.11

280

Sway Bar Ass'y

706203649

$126.99

290

Sway Bar Double Link

706202937

$111.49

320

Stabilizer Bar Bushing

706204414

$8.43

325

Grease Fitting 90°

293550056

$1.15

330

Clamp

706203437

$14.81

340

Hex. Flange Screw DIN.6921

250000951

$7.17

345

Elastic Flange Nut M12

233221466

$2.89

350

Elastic Flange Nut M12

233221466

$2.89

355

Hex. Flange Screw M12 X 70

250000858

$3.80

356

Flange Screw M12 X 60

250000857

$7.41
