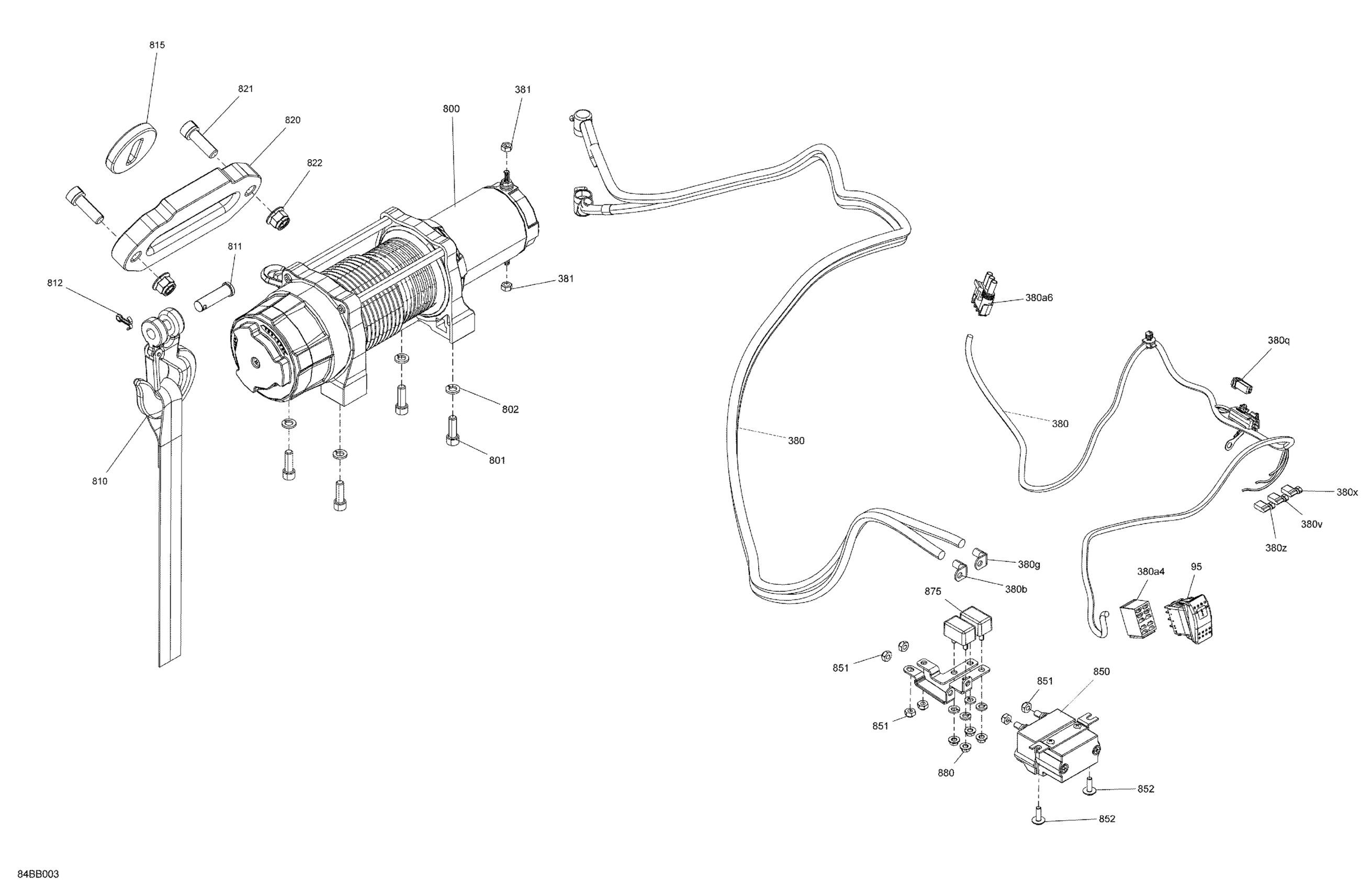

Can-Am Commander 1000R EFI - XMR - 2022 Electric - Winch Diagram

#

Description
Price

95

Switch Winch

710002052

$28.92

380

Winch Wiring Harness

710008266

$110.74

380b

Open Barell | Model-XT

710000506

$5.46

380e

Battery Cable Cap

710003583

$6.05

380g

Open Barell | Model-XT

710000506

$5.46

380k

Battery Cable Cap

710003583

$6.05

380m

Diode

409012700

$10.83

380n

Diode

409012700

$10.83

380q

Female Housing, 2 Circuits

515175658

$15.35

380r

Female Terminal

515175231

$4.12

380s

Male Terminal Housing, 2 Circuits

515175654

$7.48

380t

Male Terminal

515175232

$1.49

380v

Female Terminal

409010300

$4.12

380x

Female Terminal

409010300

$4.12

380z

Female Terminal

409010300

$4.12

380a4

Housing

710002000

$5.86

380a5

Terminal

710003047

$3.68

380a6

Male Housing, 3 Circuits

278000273

$7.59

380a7

Wire Seal

278001065

$6.03

380a8

Female Terminal

278000223

$2.55

381

Elastic Stop Nut M6, Brass

232561200

$3.51

800

Electric Winch

710006990

$738.43

800a

WINCH DECAL 4500S - Call your local BRP dealership | Not Shown

704908222

Unavailable

801

Socket Head Screw M8 X 25

205082544

$0.92

802

Lock Washer 8 mm

234181401

$0.89

810

Winch Hook Kit

705014949

$27.66

811

Winch Hook Kit

705014949

$27.66

812

Winch Hook Kit

705014949

$27.66

815

Stopper

710007028

$10.18

820

Winch Rope Guide Kit

715006426

$59.97

821

Socket Screw M10 x 30 | XT

205003044

$2.61

822

Hex. Flange Elastic Nut M10

233201414

$1.26

850

Solenoid

710006991

$59.97

851

Elastic Stop Nut M6, Brass

232561200

$3.51

852

Screw PT Type K-50 X 16

250000959

$1.74

860

Power Bar

710004772

$11.98

865

Power Bar

710004872

$11.98

870

Power Bar

710004873

$11.98

875

Circuit Breaker 50 Amp

710007039

$18.43

880

Flange Elastic Nut M5

233251434

$1.66
