Description

Price

10

Deep Black, Front Hood

517307291

$214.99

10

Platinum Silver, Front Hood | Model Platinum Silver Satin

517308295

$294.99

20

Torx Screw M5 X 20

250000528

$2.11

30

Panel Nut M5 X 0.8

250000958

$4.23

35

Hex. Flange Nut M5

233151414

$0.55

36

Flat Washer

250200040

$1.90

40

Torx Screw M5 X 26

250000587

$4.44

45

Washer

250200166

$2.11

60

RH Front Hood Foam

517305763

$13.49

70

LH Front Hood Foam

517305764

$14.99

100

Deep Black, RH Hood

517307299

$209.99

100

Platinum Silver, RH Hood | Model Platinum Silver Satin

517308296

$209.99

110

Screw M4 X 16

250000725

$3.49

146

RH Hood Foam

517306001

$13.49

150

LH Rear Hood | Model Deep Black

517307428

$209.99

150

Platinum Silver, LH Rear Hood | Model Platinum Silver Satin

517308297

$204.99

160

Screw M4 X 16

250000725

$3.49

200

Rear Console

517307685

$189.99

210

Flange Elastic Nut M5

233251434

$2.00

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Console Nut

517306602

$13.49

250

O-Ring

706002839

$1.01

360

LH Front Console

517306580

$31.99

365

Cap

572051500

$5.89

600

Gauge Support

517307441

$38.99

620

Torx Truss M5 X 20

250000586

$4.44

630

Panel Nut M5 X 0.8

250000958

$4.23

800

Deep Black, Wind Deflector

517305875

$45.99

810

Grommet

517303756

$4.09

2400

Headlamp | Includes 2400 to 2400a

517305752

$449.99

2400a

Bulb

415130081

$41.49

2800

RH Hood Plate

517306049

$14.99

3000

LH Hood Plate

517306050

$13.49

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$21.99

3200b

Latch

517305779

$12.99

3200c

Push Nut

732610072

$2.19

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$21.99

3400b

Seal Joint

517305157

$2.39

3800

Deep Black, Headlamp Fairing

517305746

$64.99

3800

Fairing - Head-Lamp | Model Manta Green

517306376

$60.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3830

Screw M4 X 16

250000725

$3.49

3840

Tuflok Plastic Rivet

293150230

$1.47

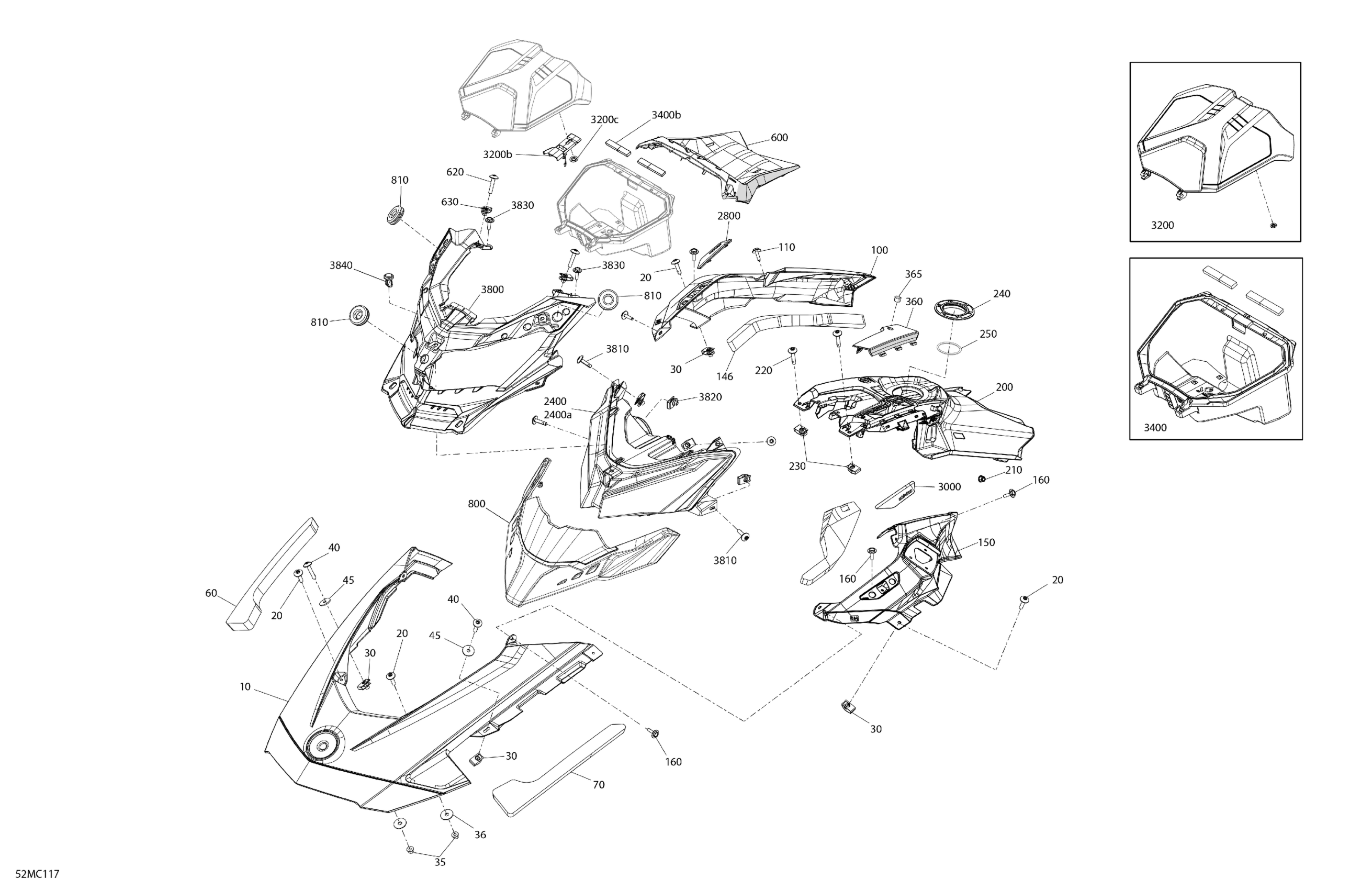

Ski-Doo 005 - BACKCOUNTRY 146 850 E-TEC - XRS - North America, 2023 07- Body - Hood - VIP Hi-End Gauge Diagram

Deep Black, Front Hood

Platinum Silver, Front Hood | Model Platinum Silver Satin

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Hex. Flange Nut M5

Flat Washer

Torx Screw M5 X 26

Washer

RH Front Hood Foam

LH Front Hood Foam

Deep Black, RH Hood

Platinum Silver, RH Hood | Model Platinum Silver Satin

Screw M4 X 16

RH Hood Foam

LH Rear Hood | Model Deep Black

Platinum Silver, LH Rear Hood | Model Platinum Silver Satin

Screw M4 X 16

Rear Console

Flange Elastic Nut M5

Torx Screw M5 X 26

Panel Nut M5 X 0.8

Console Nut

O-Ring

LH Front Console

Cap

Gauge Support

Torx Truss M5 X 20

Panel Nut M5 X 0.8

Deep Black, Wind Deflector

Grommet

Headlamp | Includes 2400 to 2400a

Bulb

RH Hood Plate

LH Hood Plate

Cover Ass'y | Includes 3200 to 3200c

Latch

Push Nut

Trunk Ass'y | Includes 3400 to 3400b

Seal Joint

Deep Black, Headlamp Fairing

Fairing - Head-Lamp | Model Manta Green

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Screw M4 X 16

Tuflok Plastic Rivet
