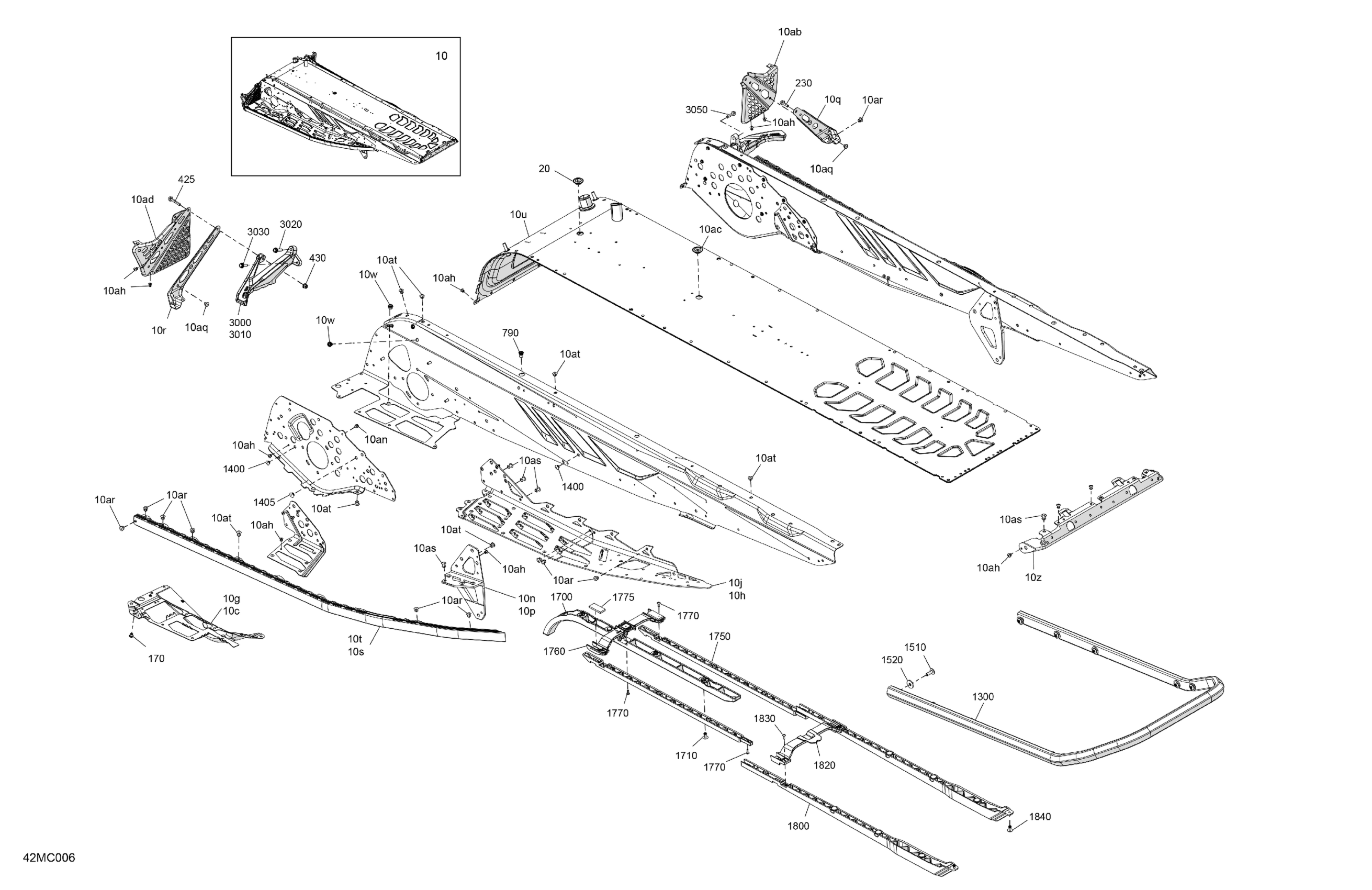

Ski-Doo BACKCOUNTRY 146 850 E-TEC - XRS - 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 146" | Model Deep Black

415130561

$3,207.66

10

Platinum Silver, Chassis Tunnel Module 146" | Model Manta Green

415130575

$3,346.12

10c

RH Footrest Reinforcement

518332578

$81.51

10g

LH Footrest Reinforcement

518332577

$81.51

10h

RH Footrest

518332922

$39.97

10j

LH Footrest

518332923

$39.97

10n

LH Rear Suspension Support

518334394

$43.05

10p

RH Rear Suspension Support

518334395

$38.43

10q

Stirrup Reinforcement

518334507

$18.43

10r

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10s

RH Roller

518329023

$180.74

10t

LH Roller

518329024

$180.74

10u

Radiator Tunnel 146

518334489

$692.28

10w

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10z

Rear Cap

518328990

$20.74

10ab

RH Footrest

518333006

$38.43

10ac

Black, Plug

293730052

$6.37

10ad

LH Footrest

518333007

$38.43

10ah

Rivet Avibulb 3/16

293150203

$0.29

10an

Henrob Rivet

293150245

$1.65

10aq

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10ar

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10as

Rivet Ornit 6,5 X 16.5

293150267

$1.94

10at

Ornit Rivet 6,5 X 14.5

293150266

$1.94

20

Black, Plug

293730052

$6.37

170

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 x 35

207663546

$0.95

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

790

Insert

293450278

$4.09

1300

Rear Bumper 146

518329553

$165.35

1400

Black, Dart 8 mm

293730047

$2.14

1405

Black, Dart 10 mm

293730060

$4.42

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

1750

Rear Protector

518329994

$7.55

1760

Front Protective Structure

518334162

$3.40

1770

Torx Truss PT K40 x 12

250001131

$1.74

1775

Gasket

705002447

$3.63

1800

Rear Protector

518329979

$7.55

1820

Central Protective Structure

518333936

$3.40

1830

Torx Truss PT K40 x 12

250001131

$1.74

1840

Pop Rivet 3/16”

293150108

$1.23

3000

Black Toe-hold

518330358

$23.05

3010

Toe Hold

518329134

$16.12

3020

Hex. Flange Screw M6 X 25

250000793

$1.74

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

3050

Hex Screw Forming M6 x 25

250001124

$1.64
