Description

Price

10

Deep Black, Chassis Tunnel Module 154" | Includes 10 to 10ar

518334175

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10g

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10h

Front Suspension Arm Reinforcement

518335959

$4.19

10j

LH Bracket

518329632

$45.99

10k

RH Rear Suspension Support

518334407

$69.99

10m

Stirrup Reinforcement

518334507

$21.99

10n

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10p

LH Under Chassis Reinforcement

518331744

$18.99

10q

RH Under Chassis Reinforcement

518331745

$19.99

10r

RH Roller

518328451

$194.99

10s

LH Roller

518328452

$194.99

10t

RH Central Tunnel Reinforcement

518331564

$35.99

10u

LH Central Tunnel Reinforcement

518331565

$35.99

10v

LH Reinforcement Plate

518329088

$3.39

10w

RH Reinforcement Plate

518329089

$4.59

10x

Radiator Tunnel 154 Ass'y

518334491

$709.99

10z

Clinch Nut M6 Hexsert

605636003

$4.23

10ab

Rear Cap

518328990

$22.49

10ac

RH Footrest

518334509

$22.49

10ad

LH Foot Protector

518331559

$23.99

10aj

Avex Rivet

390909100

$0.30

10ak

Rivet

293150183

$2.11

10am

Avex Rivet

390909200

$0.30

10ap

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10aq

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10ar

Rivet Ornit 6,5 X 16.5

293150267

$2.40

20

Black, Plug

293730052

$9.19

75

Rivet Ornit 6,5 X 12.5

293150265

$2.40

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$148.99

1300b

Bumper Cap

520001629

$0.98

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09

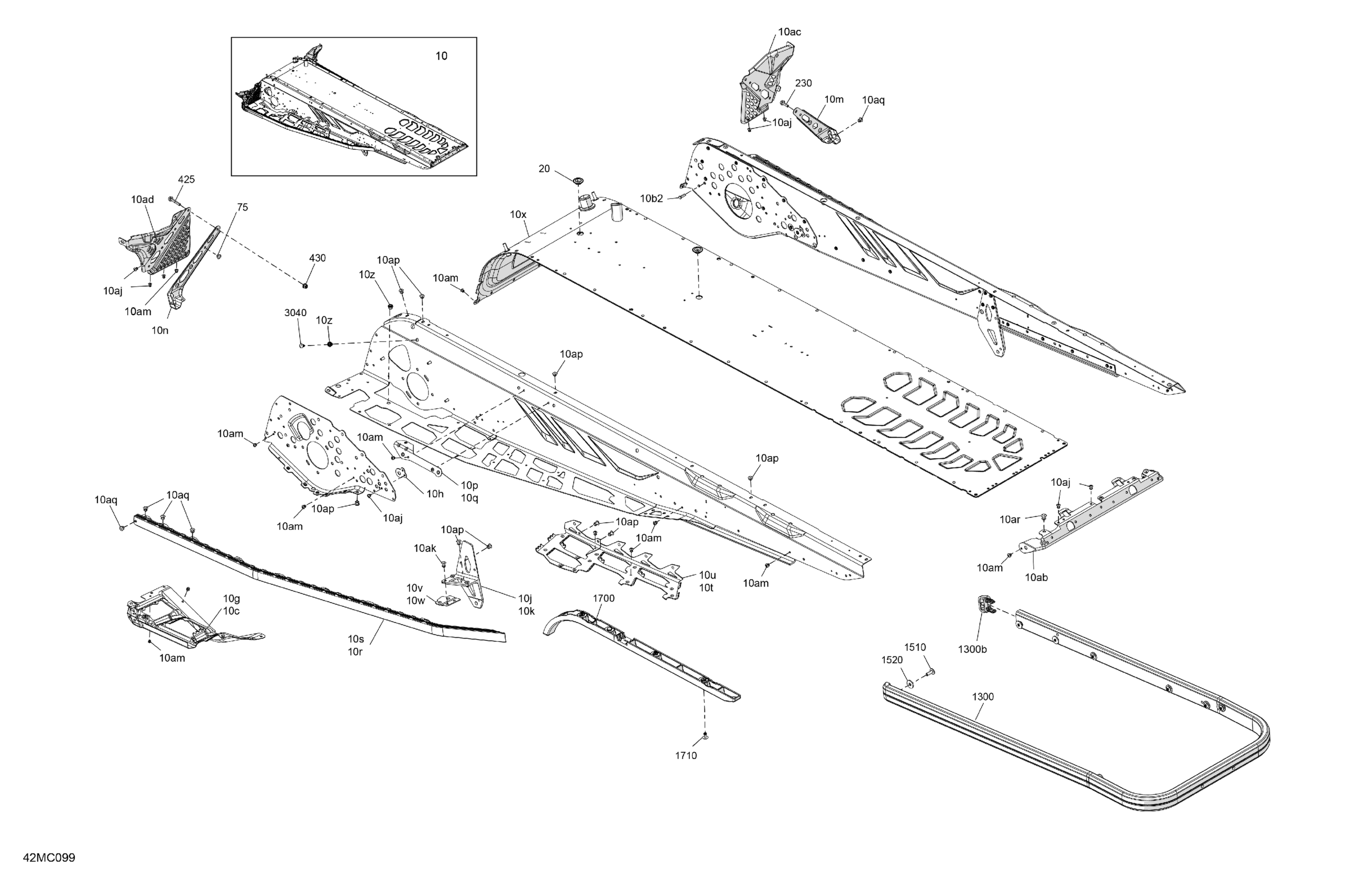

Ski-Doo TUNDRA LT 600 EFI - (GDPC) - 2023 Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 154" | Includes 10 to 10ar

Clinch Stud M6 X 20

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

Front Suspension Arm Reinforcement

LH Bracket

RH Rear Suspension Support

Stirrup Reinforcement

Deep Black, LH Chassis Reinforcement

LH Under Chassis Reinforcement

RH Under Chassis Reinforcement

RH Roller

LH Roller

RH Central Tunnel Reinforcement

LH Central Tunnel Reinforcement

LH Reinforcement Plate

RH Reinforcement Plate

Radiator Tunnel 154 Ass'y

Clinch Nut M6 Hexsert

Rear Cap

RH Footrest

LH Foot Protector

Avex Rivet

Rivet

Avex Rivet

Rivet Ornit 6,5 X 12.5

Ornit Rivet 6,5 X 14.5

Rivet Ornit 6,5 X 16.5

Black, Plug

Rivet Ornit 6,5 X 12.5

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Black, Hitch Bumper 154 | Includes 1300 to 1300b

Bumper Cap

Torx Screw M6 X 1.0 X 18, Scotch Grip

Flat Washer

Front Protector

Pop Rivet 3/16”

Dart
