Description

Price

10

Chain Case Ass'y | Includes 10 to 10b

504154232

$96.99

10a

Plate Ass'y

504153560

$79.99

10b

Flange Elastic Nut M6

233261434

$4.44

20

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

30

Collar Huck Magna-Grip 6.4

293150149

$0.48

60

Washer

504082900

$2.64

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

80

Flange Elastic Nut M6

233261434

$4.44

100

Oil Seal

293200168

$14.49

110

Ball Bearing

293350115

$12.11

120

Circlip

504152576

$9.99

140

Sprocket 21 Teeth Ass'y

504154082

$104.99

200

Connecting Shaft Ass'y

504153500

$132.49

210

External Retaining Ring

293370183

$3.79

220

Spring Release

504153179

$11.49

230

Sliding Gear 27 Teeth Machined

504153502

$109.99

260

Washer

504152689

$7.65

270

Circlip

293370055

$8.11

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

500

Axle Reverse Ass'y | Includes 500 to 500b

504153519

$35.99

500a

Rolled Pin M3 X 10

250400010

$1.90

510

Ring

504078700

$20.99

520

Sprocket 19 Teeth Ass'y

504154086

$88.99

530

Alignement Rod

570048600

$15.99

550

Gear Straight 29 Teeth Ass'y

504154087

$105.99

560

Spacer

504077300

$6.95

1100

Oil Seal

293200159

$16.25

1110

Ball Bearing

293350059

$30.99

1120

Circlip

504152582

$9.99

1130

Sprocket 53 Teeth

504153998

$49.99

1140

Circlip

504152572

$6.95

1150

O-Ring

293300201

$1.01

1160

Magnetic Cap | Includes 150c to 150c2

504154019

$26.49

1160a

Cap

504154043

$2.11

1500

Drive Chain 116 Links

504153397

$227.99

1510

Hair Pin

414575600

$1.89

1520

Adjustment Screw

504153760

$24.99

1540

Hex. Countersunk Drain Plug

250500013

$7.89

1545

Magnetic Plug

504153704

$5.19

1550

O-Ring

293300202

$1.01

1600

Tensioner

504153559

$18.99

1610

Slider Chain

504153312

$65.99

1640

Copper Washer

250200185

$1.46

1650

Circlip

293370105

$2.11

1660

Slide Chain

504153531

$17.49

1670

Torx Head Screw M6 X 16

250000717

$2.11

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

1700

Chain Case Cover Ass'y | Includes 1700 to 1700c

504154075

$189.99

1700b

Clip Connector

515178223

$2.09

1700c

Braided Sleeve

415130141

$55.99

1710

O-Ring

293300200

$13.16

1720

Hex. Flange Screw M6X20

250001153

$2.11

1740a

Cap

504152930

$28.99

1740b

Straight Fitting

293710035

$8.89

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

1740d

Protector Tube | Not shown

503195447

$13.49

1770

Hex. Countersunk Drain Plug

250500013

$7.89

1790

Hex. Flange Screw M6 X 35

250001015

$1.46

1800

Fork Ass'y

504154097

$33.99

1810

O-Ring

293300202

$1.01

1820

Reverse Axle

504154096

$19.49

1830

Spring Pin M5 X 16

250400045

$4.55

1860

Machined Lever

504153532

$29.99

1880

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

1890

Rod Actuating Adjustable Ass'y

504153657

$40.99

1900

Rod Actuating Ass'y

504153944

$15.99

1920

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

1930

Hex. Flange Screw M6 X 25

207562544

$1.69

1940

Reverse Lever

504153524

$29.99

1960

Socket Head Screw M6 X 40, S.GRIP

205564044

$2.11

1970

Hex. Flange Screw M6 X 25

207562544

$1.69

1980

Washer

504082900

$2.64

1990

Hex. Screw M8 X 90

207089044

$3.48

2030

O-Ring

293300201

$1.01

2040

Cap

504154043

$2.11

2050

Circlip

504152572

$6.95

2070

Hex. Flange Screw M6 X 25

207562544

$1.69

2090

Handle Support

504153683

$21.99

2110

Spacer

504153648

$3.49

2120

Bushing

504153735

$0.55

2130

Hex. Flange Screw M6 X 25

207562544

$1.69

2180

Bushing

504153735

$0.55

2190

Spacer

504153648

$3.49

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$19.49

2500a

Clinch Stud, M8 X 25

250300028

$4.44

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

3000

Drive Axle Ass'y | Includes 3000 to 3000e

504154024

$412.99

3000b

Sprocket, 8 Teeth

504153880

Unavailable

3000c

Sprocket, 8 Teeth

504153881

Unavailable

3000d

Retaining Ring

504153886

$21.99

3000e

Ball Bearing

293350059

$30.99

3200

Track 16 X 154 X 1,5 | Includes 3200 to 3200b

504154391

$1.00

3200a

Track Guide | Track Width 16''

415129528

$3.29

3200b

Cleat

504152651

$9.69

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

4020

Washer

504082900

$2.64

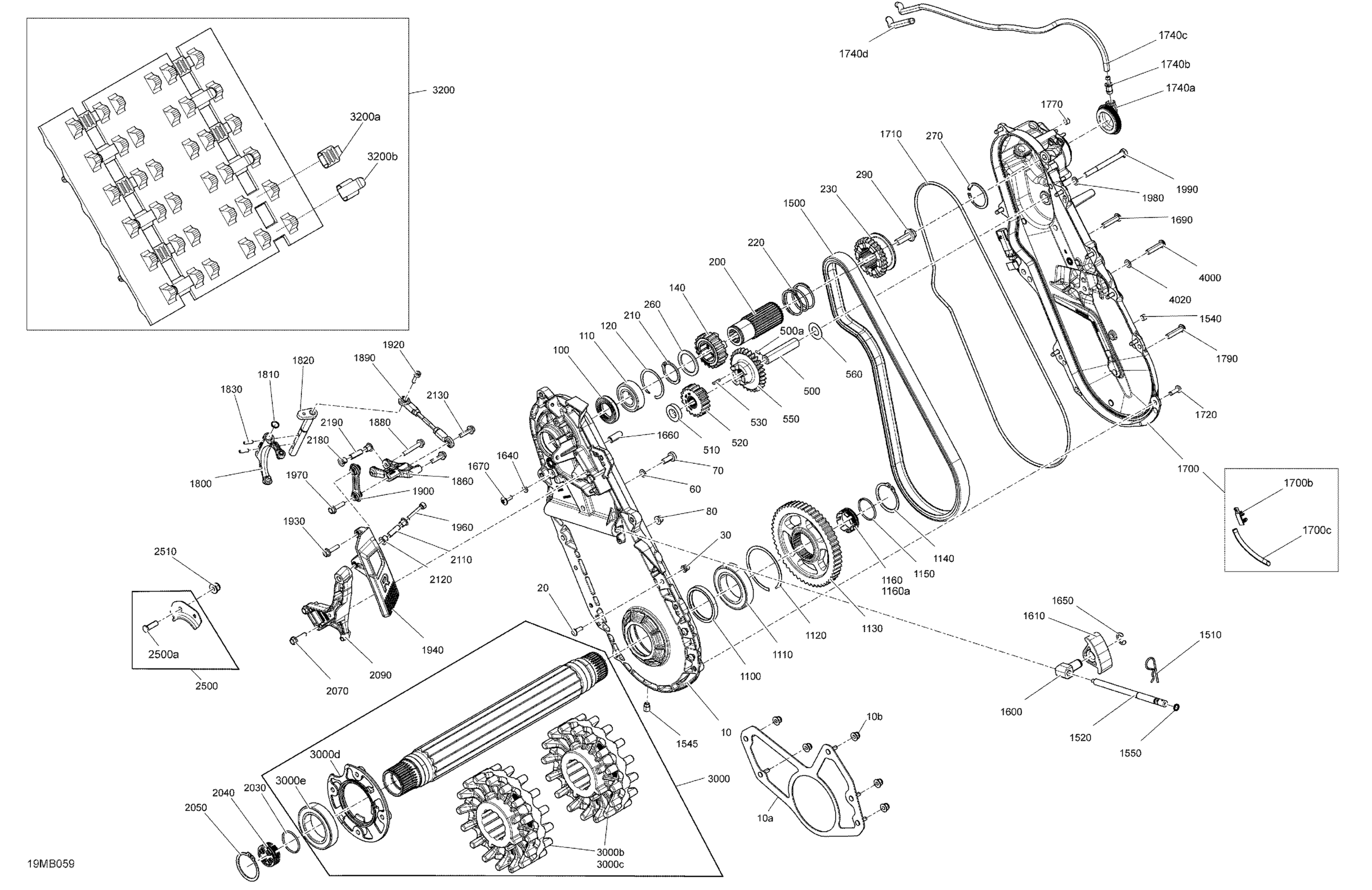

Ski-Doo 004 - TUNDRA 600 ACE - LT - North America, 2022 04- Drive - System Diagram
