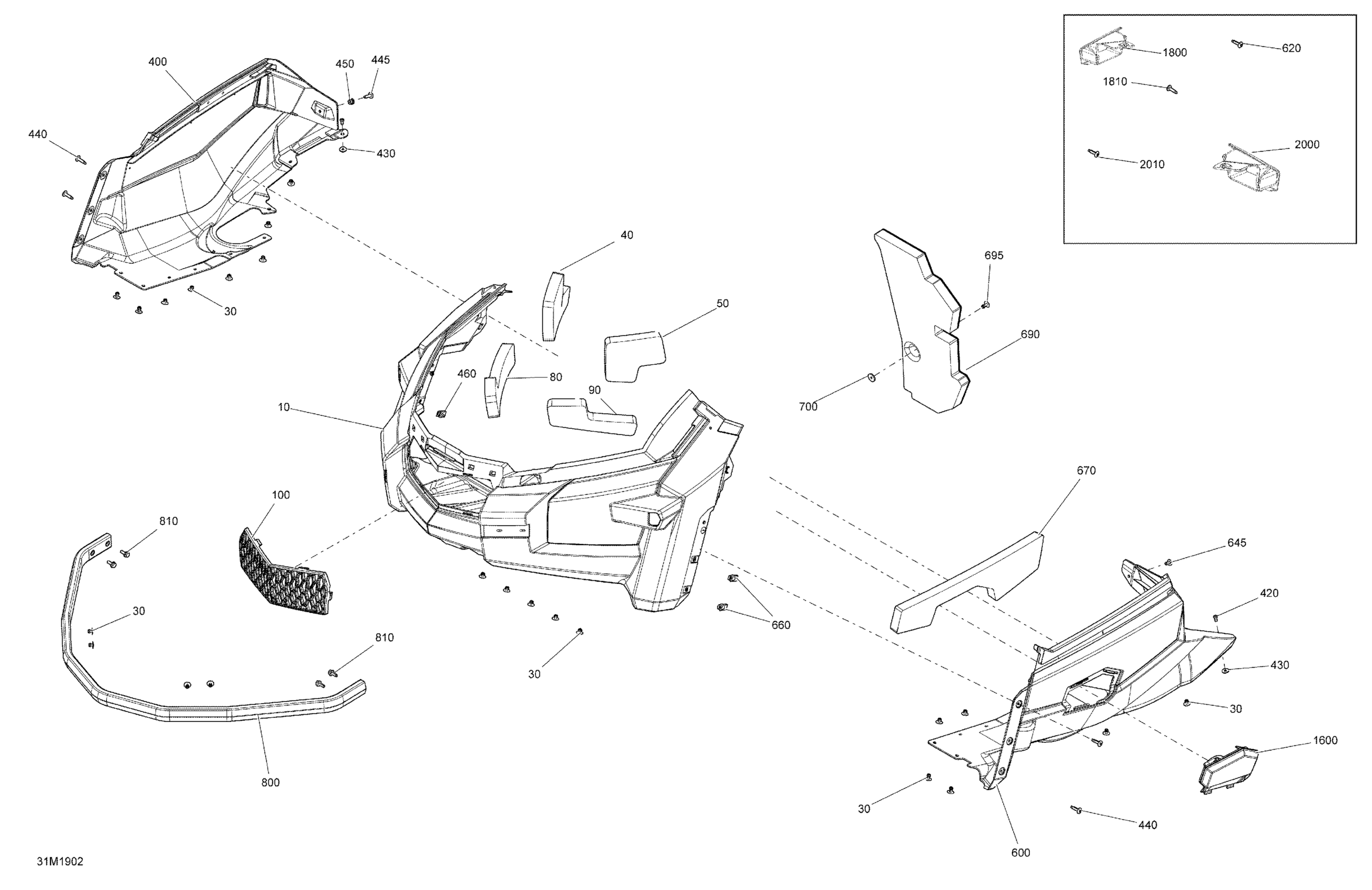

Ski-Doo 004 - Tundra 600 ACE, 2019 09- Bottom Pan - 600 ACE Diagram

#

Description
Price

10

Bottom Pan

502007362

$194.99

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

40

RH Upper Bottom Pan Foam

502007204

$19.99

50

LH Upper Bottom Pan Foam

502007205

$19.99

80

RH Lower Bottom Pan Foam

502007206

$18.99

90

LH Lower Bottom Pan Foam

502007207

$18.99

100

Botton Pan Grille

502006887

$27.99

400

Black RH Bottom Pan

502006965

$77.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

420

Pop Rivet 3/16"

390402300

$0.75

430

Washer

517124300

$0.19

440

Torx Screw M6 X 25

250000618

$4.44

445

Torx-truss M/s M6 X 10

250000995

$4.44

460

Panel Nut M6 X 1.0

250100198

$2.11

600

Black LH Bottom Pan

502006966

$65.99

610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

620

Pop Rivet 3/16"

390402300

$0.75

630

Washer

517124300

$0.19

640

Torx Screw M6 X 25

250000618

$4.44

645

Torx Truss Screw M6 X 12

250000767

$2.00

660

Panel Nut M6 X 1.0

250100198

$2.11

670

LH Bottom Pan Foam

502007208

$18.99

800

Black Front Bumper

502007121

$142.99

810

Hex. Flange Screw M6 X 16

207661644

$0.74

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1600

Black Bottom Pan Door

502006970

$19.99

1800

RH Air Inlet

502007127

$11.99

1810

Torx Screw K50 X 16

250000720

$1.69

2000

LH Air Inlet

502007128

$11.99

2010

Torx Screw K50 X 16

250000720

$1.69
