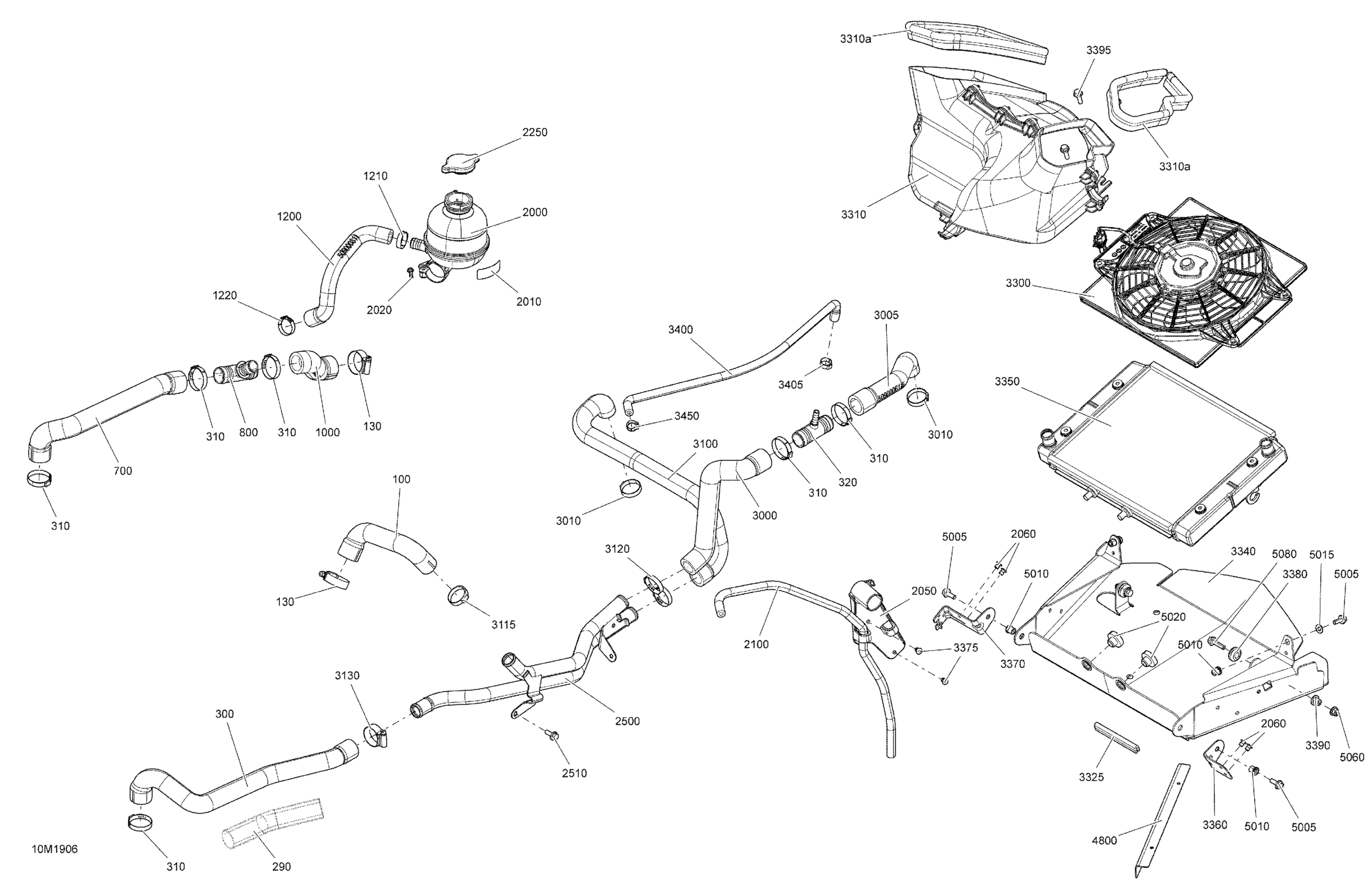

Ski-Doo Tundra 600 ACE, 2019 Cooling - 600 ACE Diagram

#

Description
Price

100

Engine Outlet Hose

509000932

$20.99

130

Aba Gear Clamp, 26-38 MM

509000443

$12.72

290

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

300

Hose

509000634

$23.49

310

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

320

T-Fitting

509000510

$13.16

700

Radiator Return Hose

509001062

$16.33

710

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

800

T-Fitting

509000372

$10.33

1000

Radiator Hose

509000921

$13.49

1010

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

1020

Aba Gear Clamp, 26-38 MM

509000443

$12.72

1200

Filling Hose

509001063

$15.28

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1220

Crimp Clamp

293650099

$4.29

2000

Cooling Tank

509000875

$92.99

2010

Warning Decal

516005904

Unavailable

2020

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

2050

Front Bracket

509000694

$10.33

2060

Avex Rivet

390909200

$0.30

2100

Hose

509000775

$11.49

2250

Radiator Pressure Cap

509000180

$20.49

2500

Water Pipe

509000800

$110.99

2510

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

3000

Radiator Hose

509000617

$15.99

3005

Radiator Hose

509000618

$15.99

3006

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

3010

Oetiker Gear Clamp

293650165

$5.39

3100

Radiator Hose

509000560

$19.99

3110

Oetiker Gear Clamp

293650165

$5.39

3115

Oetiker Clamp

293650141

$4.29

3120

Clamp

509000735

$7.49

3130

Gear Clamp

509000931

$14.22

3300

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

509000692

$239.99

3310

Air Outlet Deflector Ass'y | Includes 3310 to 3310b

509000612

$109.99

3310a

Neoprene Seal 3000Mm Long

219704371

$51.99

3310b

Neoprene Seal 3000Mm Long

219704371

$51.99

3325

Was 271000110 Protection Trim

219704353

$15.99

3340

Radiator Support

509000988

$179.99

3350

Radiator

509000972

$312.49

3360

Support

509000715

$11.60

3370

Support

509000772

$19.99

3375

Avex Rivet

390909100

$0.30

3380

Grommet

709000582

$4.69

3390

Bushing

293900100

$7.65

3395

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

3400

Breather Hose

509000860

$24.49

3405

Crimp Clamp, 15.3-706R

293650047

$3.29

3450

Oetiker Gear Clamp

293650025

$3.09

4800

DEFLECTOR - Call your local BRP dealership

509000892

$15.49

4900

Avex Rivet

390909200

$0.30

5005

Hex. Flange Screw M6 X 16

207661654

$2.11

5010

Insert

293450275

$12.99

5015

Flat Washer

224061121

$0.53

5020

Grommet

709200285

$9.69

5060

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5080

Hex. Flange Screw M6 X 25

207662544

$0.64
