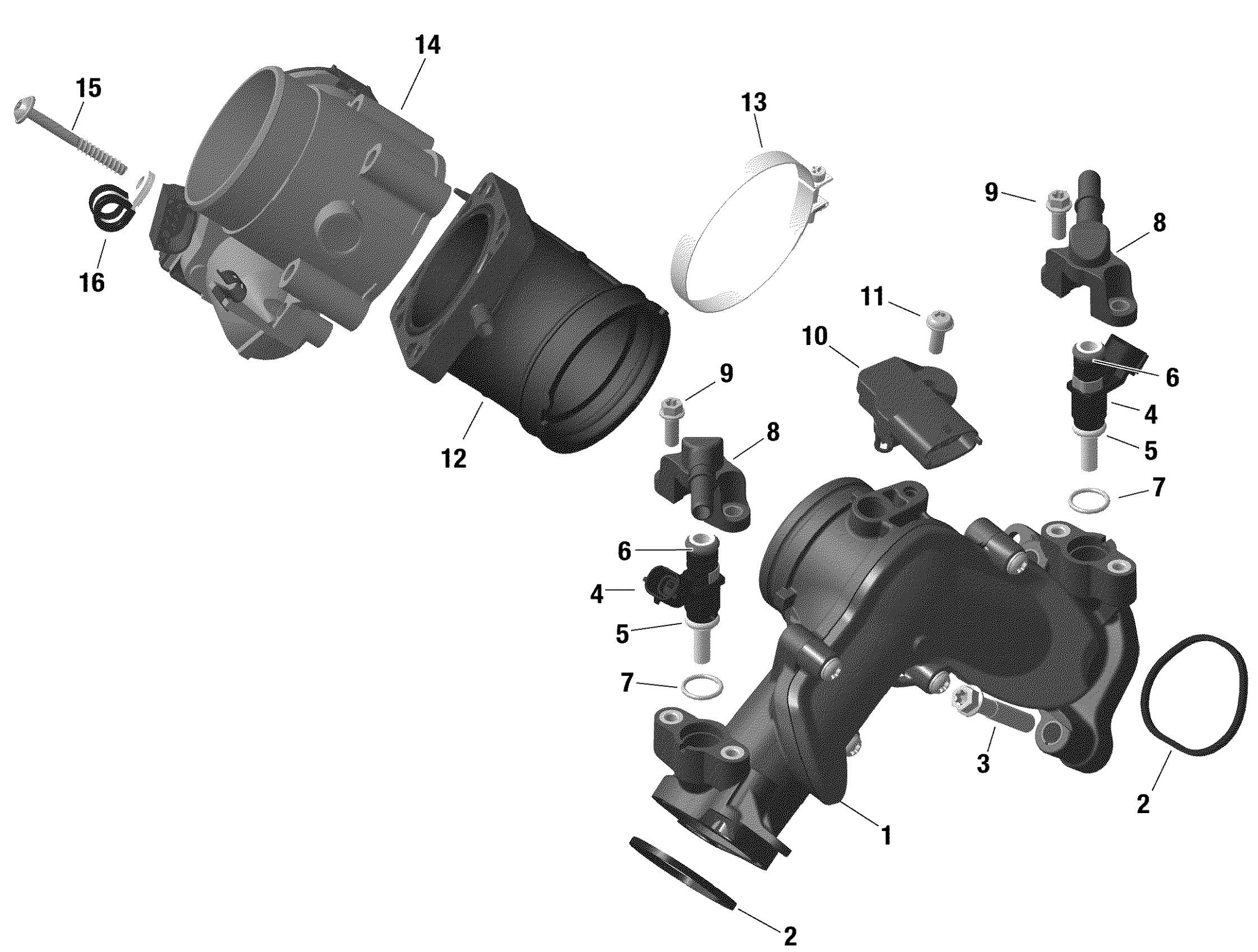

Can-Am Defender HD10 - Except XMR - 2020 Engine - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Inlet Manifold Ass'y

420867941

$184.99

2

Gasket | Included in gasket kit

420630644

$1.25

3

Hex. Flange Screw M8 X 45

420641208

$7.51

4>6

Injection Valve Ass'y | Includes 18 to 20

420874887

$174.99

5

O-Ring

420431890

$7.49

6

O-Ring

420631220

$14.28

7

O-Ring

420631296

$0.76

8

Fuel Rail

420874901

$24.49

9

Torx Flange Screw M6 X 16

420440164

$2.19

10

Pressure And Temperature Sensor

707000995

$88.99

11

Torx Flange Screw M6 X 16

420641588

$2.11

12

Air Intake Socket

420267214

$86.99

13

Clamp

420251209

$8.57

14

Throttle Body Socket Ass'y

420892596

$466.49

15

Torx Flange Screw M6 X 50

420441588

$4.44

16

Cable Clamp

420251692

$13.18
