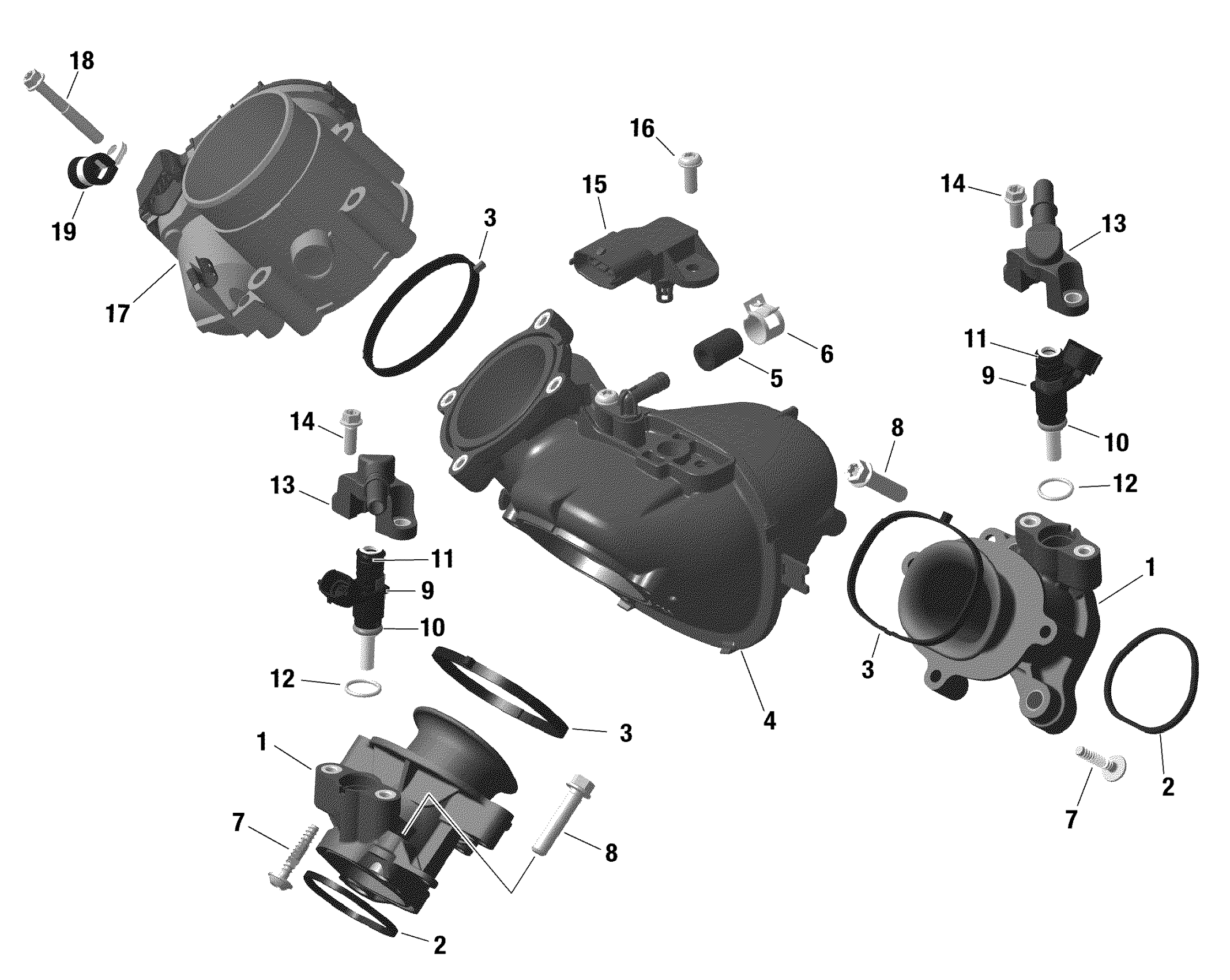

Can-Am Defender HD9 - BASE - 2022 ROTAX - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420267610

$69.99

2

Gasket

420630642

$5.39

3

Gasket | Included in gasket kit

420431900

$5.40

4

Air Inlet Manifold

420667800

$69.99

5

Cap

420201910

$6.82

6

Spring Type Clamp 14

420853512

$4.55

7

Torx Screw 6X30

420441575

$3.06

8

Torx Flange Screw M8 X 35

420641188

$7.41

9

Injection Valve Ass'y | Includes no. 7-9

420874886

$142.99

10

O-Ring

420431890

$7.49

11

O-Ring

420631220

$14.28

12

O-Ring

420631296

$0.76

13

Fuel Rail

420874901

$24.49

14

Torx Flange Screw M6 X 16

420440162

$3.17

15

Pressure And Temperature Sensor

707000995

$88.99

16

Torx Flange Screw M6 X 16

420641588

$2.11

17

Throttle Body Socket Ass'y

420892596

$466.49

18

Torx Flange Screw M6 X 45

420440324

$0.98

19

Cable Clamp

420251692

$13.18
