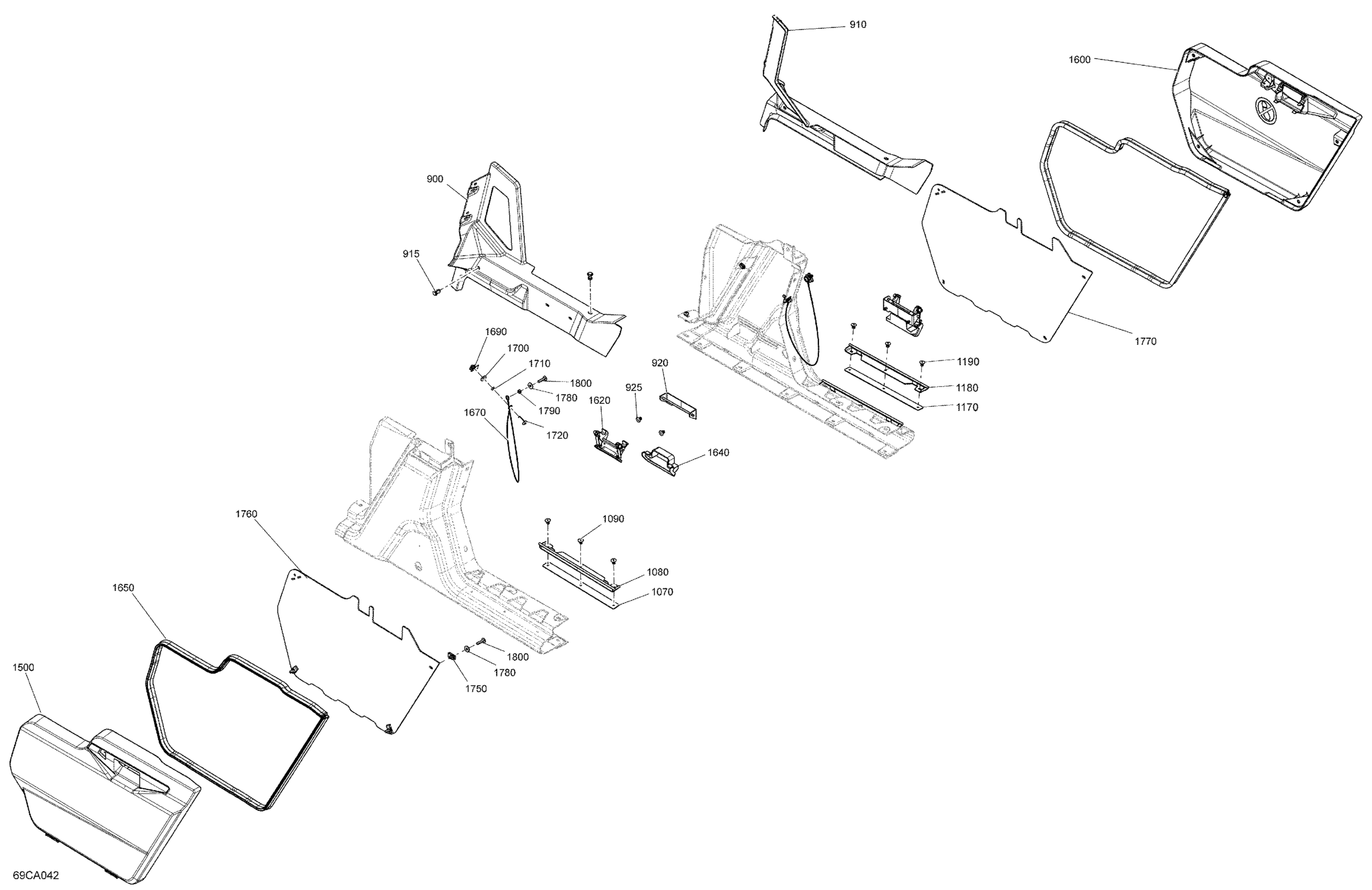

Can-Am Defender PRO HD10 - DPS_XT - 2021 Body - Side Panel Diagram

Description

Price

900

LH Central Body Panel

705014160

$109.99

910

RH Central Body Panel

705014161

$109.99

915

Tuflok Plastic Rivet

293150230

$1.47

920

Deep Black, Pivot Support

705018362

$14.49

925

Pop Rivet 3/16”

293150108

$1.19

1070

Reinforcement Panel

705014755

$19.99

1080

Support Pivot

705014759

$27.99

1090

Pop Rivet 3/16”

293150108

$1.19

1170

Reinforcement Panel

705014755

$19.99

1180

Support Pivot

705014759

$27.99

1190

Pop Rivet 3/16”

293150108

$1.19

1500

Deep Black, LH Rear Door Panel

705014162

$42.99

1600

Deep Black, RH Rear Door Panel

705014163

$42.99

1620

Seat Latch

269003103

$8.99

1640

Latch Trim

705014752

$12.49

1650

Gasket 4100Mm Long

219704387

$78.99

1670

Cable Retaining

705014763

$11.49

1690

Panel Nut M6 X 1.0

250100198

$2.11

1700

Stainless Steel Flat Washer

234062670

$2.11

1710

Bushing

708300737

$5.99

1720

Torx Truss Screw M6 X 25

250000807

$2.11

1750

Panel Nut M6 X 1.0

250100198

$2.11

1760

LH Reinforcement Panel

705015379

$37.99

1770

RH Reinforcement Panel

705015380

$37.99

1780

Stainless Steel Flat Washer

234062670

$2.11

1790

Bushing

708300737

$5.99

1800

Torx Truss Screw M6 X 25

250000807

$2.11
