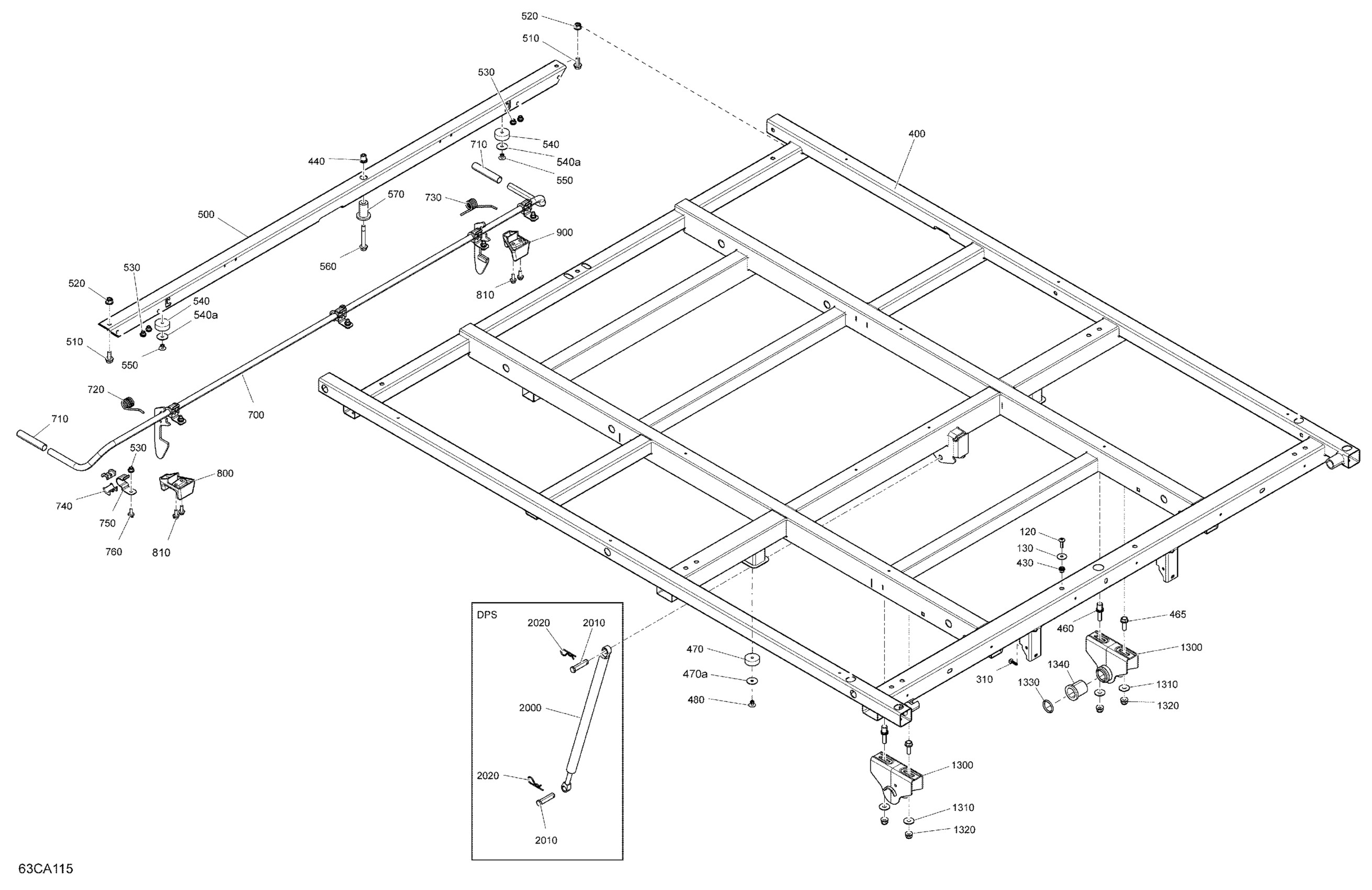

Can-Am Traxter PRO HD10 - DPS - CE, 2021 Body - Cargo - Lower Section Diagram

#

Description
Price

120

Torx Screw M6 X 20

250000722

$1.54

130

Flat Washer M6.6 X 22

250200162

$2.19

310

Torx Screw Truss Head K50X20 T20

250000760

$2.00

400

Open Carrier Frame Ass'y

715008422

$508.93

430

Insert Half Hex Body M6 x 1.0

250100199

$2.91

440

Insert Half Hex Body M8 x 1.25

293450307

$1.97

460

Protruding Stud M8 X 28

250300645

$3.90

465

Hex. Flange Screw M8 X 25

207682534

$1.03

470

Rubber Stopper | Includes 830 to 830a

708303134

$1.69

470a

Washer

224060251

$0.55

480

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

500

Front Square Tube

708303586

$23.10

510

Hex. Flange Screw M8 X 20

207682046

$1.76

520

Hex. Elastic Flange Nut M8

233281416

$1.43

530

Insert Half Hex Body M6 x 1.0

250100199

$2.91

540

Rubber Stopper | Includes 830 to 830a

708303134

$1.69

540a

Washer

224060251

$0.55

550

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

560

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.00

570

Spacer

705207754

$11.72

700

Latch Lever

708303088

$76.84

710

Cap Latch Lever

708300358

$4.91

720

LH Torsion Spring

708303190

$3.54

730

RH Torsion Spring

708303191

$3.54

740

Half Ring

705500033

$4.76

750

Clamp Retainer

708301479

$3.07

760

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

800

LH Stopper

708303301

$3.51

810

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

900

RH Stopper

708303302

$3.51

1300

Female Hinge

708303342

$32.81

1310

Flat Washer 8 mm

234082410

$1.27

1320

Hex. Flange Elastic Nut M8

233281414

$1.31

1330

O-Ring

293300131

$4.94

1340

Hinge Bushing

708303361

$9.91

2000

Shock Absorber

708302889

$132.81

2010

Pin Clevis

250400098

$5.33

2020

Hair Pin

414575600

$1.73
