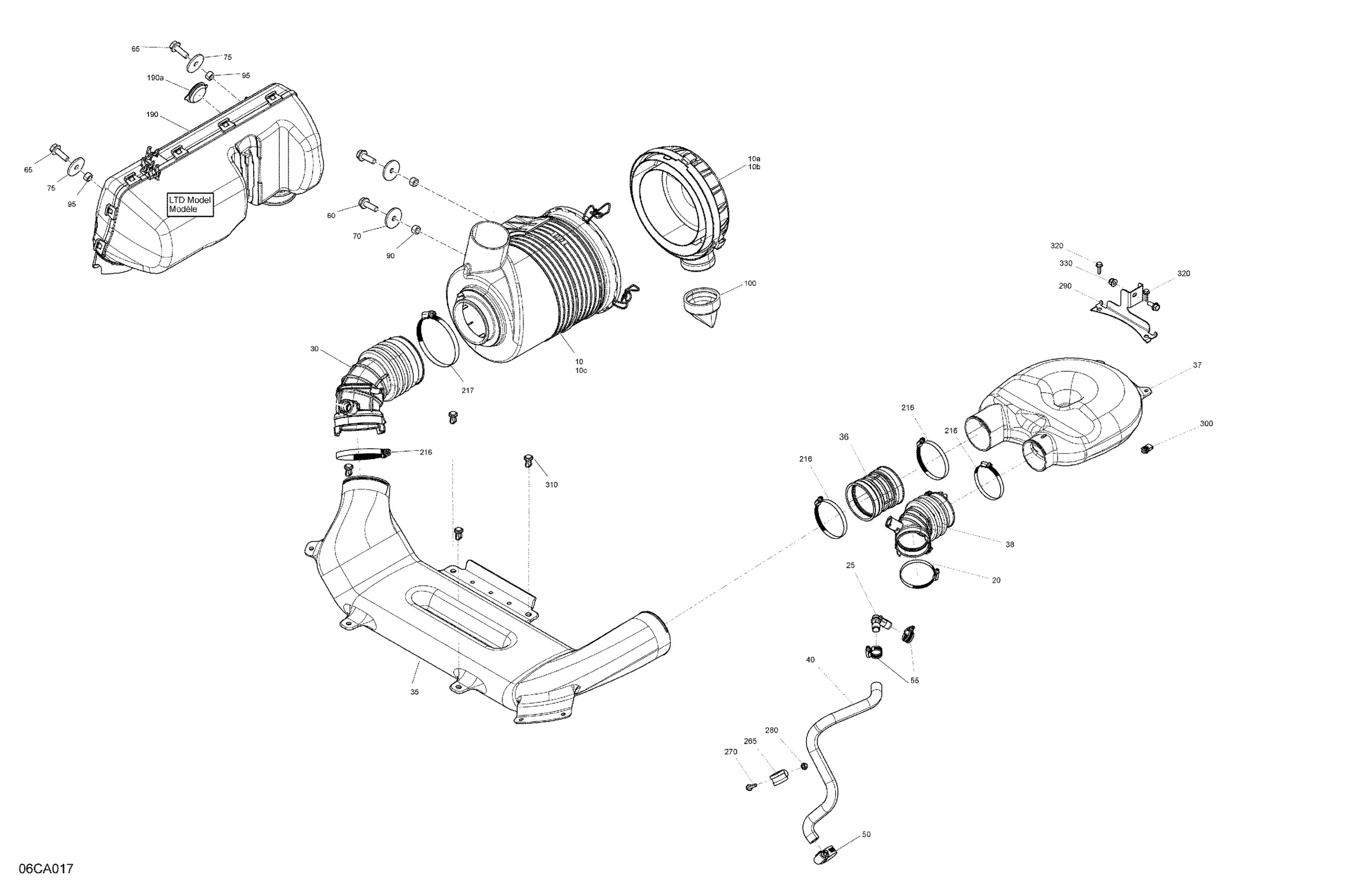

Can-Am Defender PRO HD10 - Lone Star - 2021 Engine - Air Intake Diagram

#

Description
Price

10

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$166.39

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$84.30

10b

O-Ring

715900514

$17.13

10c

Air Filter

715900394

$49.22

20

Norma Clamp

293650091

$10.54

25

Elbow Fitting 90

293710155

$7.72

30

Front Intake Duct

707800879

$25.34

35

Central Intake Duct

707800836

$74.60

36

Rear Intake Duct

707800880

$17.88

37

Air Inlet Box

707800877

$46.99

38

Rear Main Intake Duct

707800837

$25.34

40

Crankcase Hose Formed

707800890

$33.55

50

Tridon Gear Clamp

293650173

$2.82

55

Tridon Gear Clamp

293650173

$2.82

60

Hex. Flange Screw M8 X 25

207682534

$1.03

65

Hex. Flange Screw M8 X 25

207682534

$1.03

70

Flat Washer M8

250200158

$2.00

75

Flat Washer M8

250200158

$2.00

90

Bushing

277000980

$14.27

95

Bushing

277000980

$14.27

100

Duct Bill Valve

715003114

$12.09

190

Resonator | Includes 450 to 450d

707800849

$91.01

190a

Plug

293000125

$1.03

216

Norma Clamp

293650096

$3.00

217

Norma Clamp

293650096

$3.00

265

Hose Anchor

709200036

$10.51

270

Hex. Flange Screw M6 X 25

207662544

$0.61

280

Hex. Flange Nut M6

233061414

$1.54

290

Support

707800940

$41.01

300

Panel Nut M6 X 1.0

250100198

$1.99

310

Tuflok Plastic Rivet

293150230

$1.39

320

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

330

Hex. Flange Elastic Nut M8

233281414

$1.31

340

Hex. Flange Screw M8 X 20

207682044

$1.06
