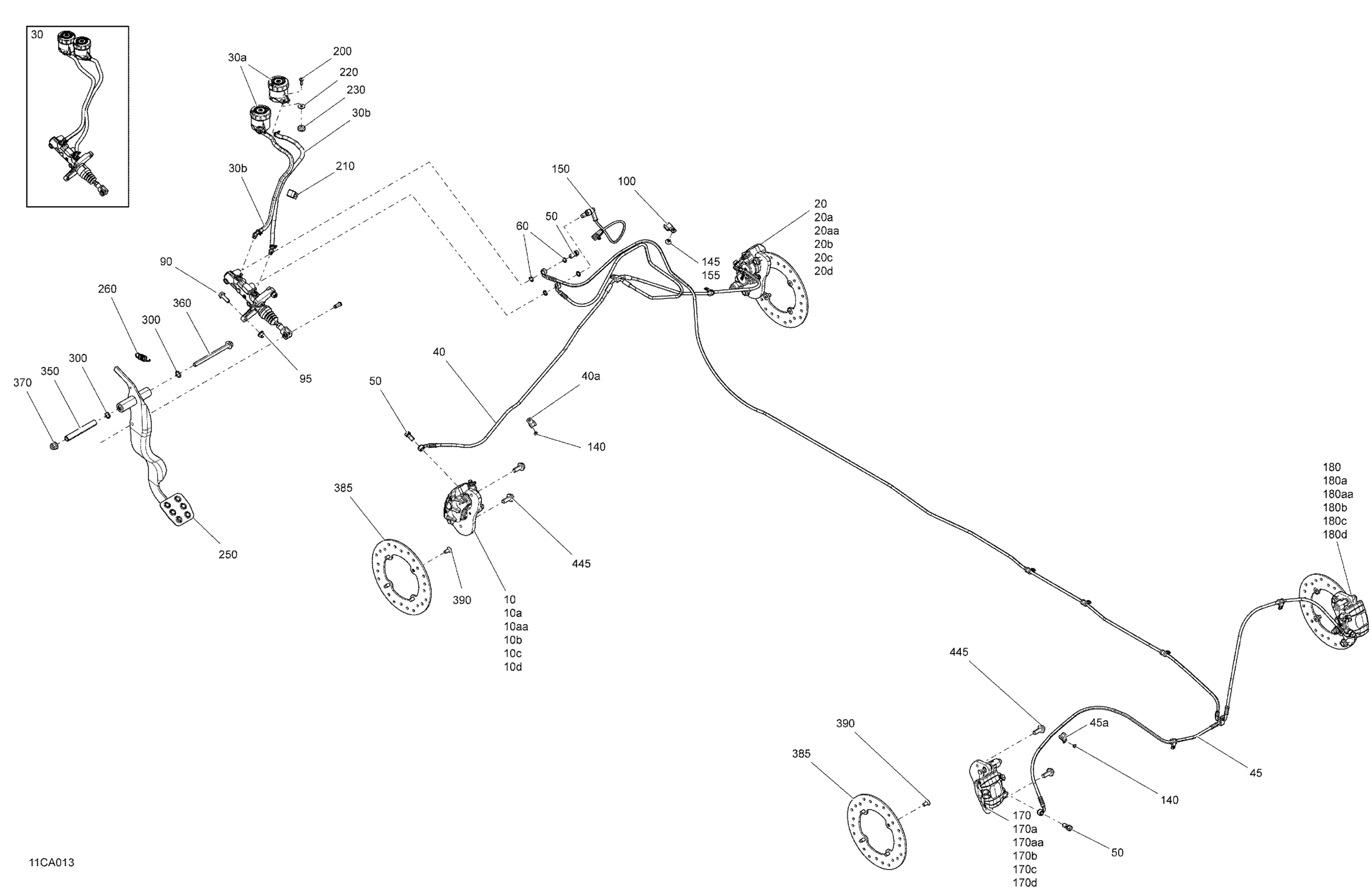

Can-Am Traxter PRO HD10 - DPS - CE, 2021 Mechanic - Brakes Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$223.85

10a

LH Brake Pads

715900379

$108.18

10aa

Pin Kit | Packages STD & PRO

715900384

$10.30

10b

Pin Kit | Packages STD & PRO

715900384

$10.30

10c

Bleeding Screw

705601017

$5.90

10d

Cap Spring Kit

715900385

$16.39

20

RH Front Brake Caliper | RH Front

705601888

$223.85

20a

RH Brake Pads

715900380

$108.18

20aa

Pin Kit | Packages STD & PRO

715900384

$10.30

20b

Pin Kit | Packages STD & PRO

715900384

$10.30

20c

Bleeding Screw

705601017

$5.90

20d

Cap Spring Kit

715900385

$16.39

30

Master Cylinder

705601863

$256.69

30a

Oil Tank

705601020

$35.79

30b

Housing Oil Hose

705601866

$14.43

40

Front Caliper Hose | Includes 40 to 40a

705601754

$136.54

40a

Clamp

293650256

$5.00

45

Rear Caliper Hose | Includes 45 to 45a

705601756

$149.22

45a

Clamp

293650256

$5.00

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

60

Copper Washer

705601628

$4.21

90

Hex. Flange Screw M8 X 25

207682534

$1.03

95

Hex. Elastic Flange Nut M8

233281416

$1.43

100

Open Clamp

515175507

$1.69

140

Pop Rivet 3/16"

390402200

$0.30

145

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

150

Brake Switch

705601250

$55.19

155

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

170

LH Rear Brake Caliper | Includes 170 to 170d

705601889

$204.45

170a

LH Brake Pads

715900386

$108.18

170aa

Pin Kit | Packages STD & PRO

715900384

$10.30

170b

Pin Kit | Packages STD & PRO

715900384

$10.30

170c

Bleeding Screw

705601017

$5.90

170d

Cap Spring Kit

715900385

$16.39

180

RH Rear Brake Caliper | Includes 180 to 180d

705601890

$204.45

180a

RH Brake Pads

715900387

$108.18

180aa

Pin Kit | Packages STD & PRO

715900384

$10.30

180b

Pin Kit | Packages STD & PRO

715900384

$10.30

180c

Bleeding Screw

705601017

$5.90

180d

Cap Spring Kit

715900385

$16.39

200

Screw PT Type K-50 X 16

250000959

$2.00

210

Open Clamp

515175507

$1.69

220

Flat Washer

250200040

$1.76

230

Grommet

414036300

$2.55

250

Brake Pedal | Includes 250 to 250a

705601777

$51.46

260

Brake Pedal Spring

705600792

$8.42

300

O-Ring

293300144

$3.79

350

Inside Sleeve

705601373

$10.12

360

Hex. Flange Screw, M10 X 130

230603046

$6.99

370

Hex. Flange Elastic Nut M10

233201436

$2.00

385

Brake Disc

705601511

$101.46

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

445

Hex. Flange Screw M10 X 25

207502546

$2.00
