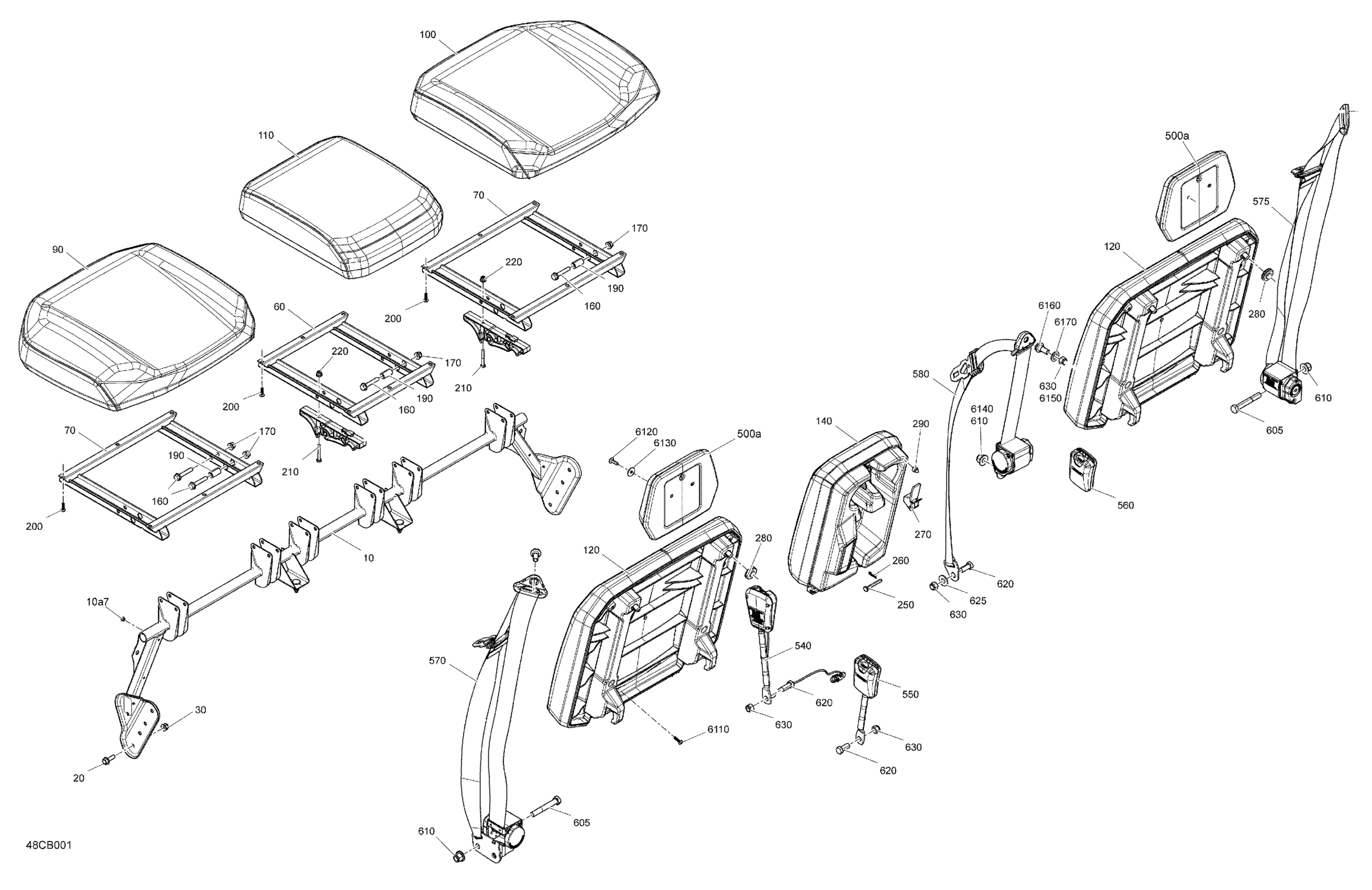

Can-Am Traxter 6X6 HD10 - DPS - CE, 2022 Body - Seat Diagram

#

Description
Price

10

Seat Member | Includes 10 to 10a7

708002817

$139.99

10a7

Pop Rivet 3/16"

390402200

$0.35

20

Hex. Flange Screw M8 X 25

207682544

$1.35

30

Hex. Flange Elastic Nut M8

233281414

$1.47

60

Mid Seat Member

708002815

$204.99

70

Passenger Seat Member

708002821

$204.99

90

LH Cushion Ass'y

708002544

$294.99

100

RH Cushion Ass'y

708001498

$284.99

110

Central Cushion Ass'y

708001629

$249.99

120

Backrest Ass'y

708001701

$379.99

140

Backrest Ass'y

708003155

$349.99

160

Hex. Flange Screw M8 X 45

207684544

$3.80

170

Hex. Flange Elastic Nut M8

233281414

$1.47

190

Bushing

708001903

$3.79

200

Torx Screw Truss Head K50X20 T20

250000760

$2.11

210

Hex. Screw M6 X 45

207064544

$2.11

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

250

Pin

250400069

$3.89

260

Hairpin Cotter

269800431

$1.29

270

Latch

269501487

$16.99

280

Grommet

517303756

$4.09

290

Rubber Bumper

293830005

$8.09

500a

Headrest

708002853

$58.99

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$67.99

560

Passenger Buckle

708002329

$67.99

570

LH Safety Belt

708003082

$243.49

575

RH Safety Belt

708003200

$227.99

580

Central Safety Belt

708003688

$243.49

605

Hex. Screw M12 X 80

207028046

$3.91

610

Elastic Flange Nut M12

233221416

$2.85

620

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

625

Flat Washer M12

250200102

$2.11

630

Lock Nut Nylon 7/16

250100183

$2.00

6110

Torx Screw Truss Head K50X20 T20

250000760

$2.11

6120

Torx Screw M6 X 20

250000722

$1.68

6130

Flat Washer M6.6 X 22

250200162

$2.32

6140

Elastic Flange Nut M12

233221416

$2.85

6150

Lock Nut Nylon 7/16

250100183

$2.00

6160

Safety Belt Screw

708000890

$3.79

6170

Position Washer

708000891

$1.29
