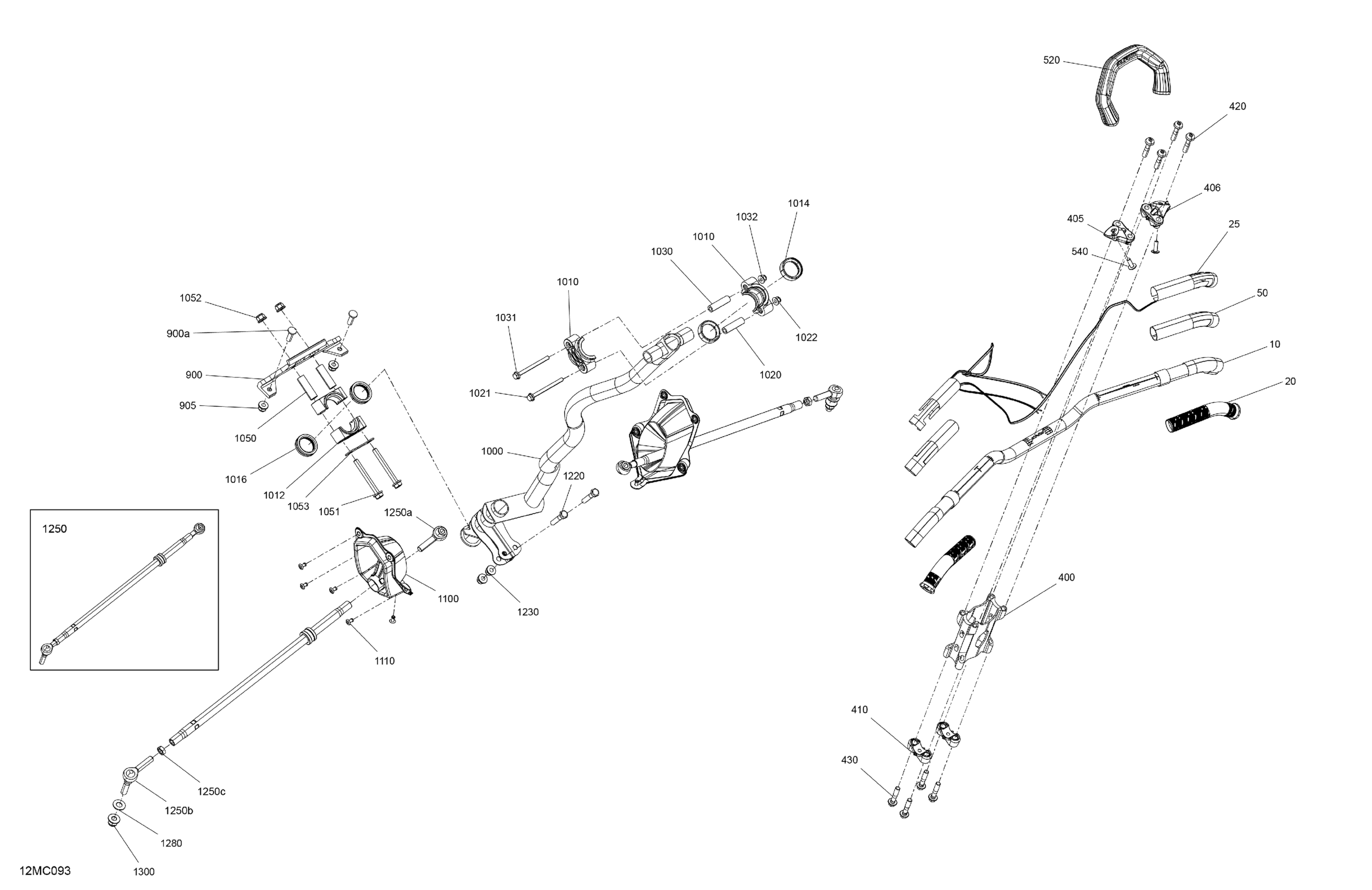

Ski-Doo SUMMIT 850 E-TEC Turbo R - EXPERT - Package 154" - Asia, 2023 Mechanic - Steering Diagram

Black, Handlebar This part replaces 506153137.

506153219

$94.49

Grip 148 mm

506153134

$23.49

Heated Film

506153135

$39.99

Thermal Insulation

506153177

$5.99

Riser Kit 120

860201427

$60.49

LH Handle Bar Support

506152867

$16.49

RH Handle Bar Support

506152928

$15.99

Steering Support

506152894

$14.49

Button Head Torx Screw M8 X 38

250000904

$2.11

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

Moulding Strap Ass'y

506153133

$50.99

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Support Plate | Includes 900 to 900a

506152787

$37.99

Clinch Stud

250300038

$4.29

Hex. Elastic Flange Nut M8

233281416

$1.48

Tube Main

506153083

$264.99

Upper Half Housing

506152219

$1.79

Lower Half Housing

506153048

$6.92

Upper Vibration Ring

506152292

$0.74

Lower Vibration Ring

506152518

$4.79

Housing Bushing

506152297

$12.99

Hex. Flange Screw M6 x 75

250001114

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Housing Bushing

506152297

$12.99

Hex. Flange Screw M6 x 75

250001114

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Housing Bushing

506152937

$12.99

Hex. Flange Screw M8 X 70

207687044

$7.41

Hex. Elastic Flange Nut M8

233281416

$1.48

Stopper Plate

506152938

$12.99

Cap

506153294

$26.99

Pop Rivet 3/16"

293150008

$0.50

Hex. Screw M8 X 40

207084044

$1.15

Hex. Elastic Flange Nut M8

233281416

$1.48

Tie Rod Ass'y | Includes 1250 to 1250c

506153254

$83.99

LH Threaded Ball Joint

506152344

$41.49

RH Threaded Ball Joint

506152684

$44.49

RH Threaded Hex. Jam Nut M10

732610010

$0.74

Washer

506152582

$4.55

Hex. Flange Elastic M10 x 1.5

233201464

$7.51
