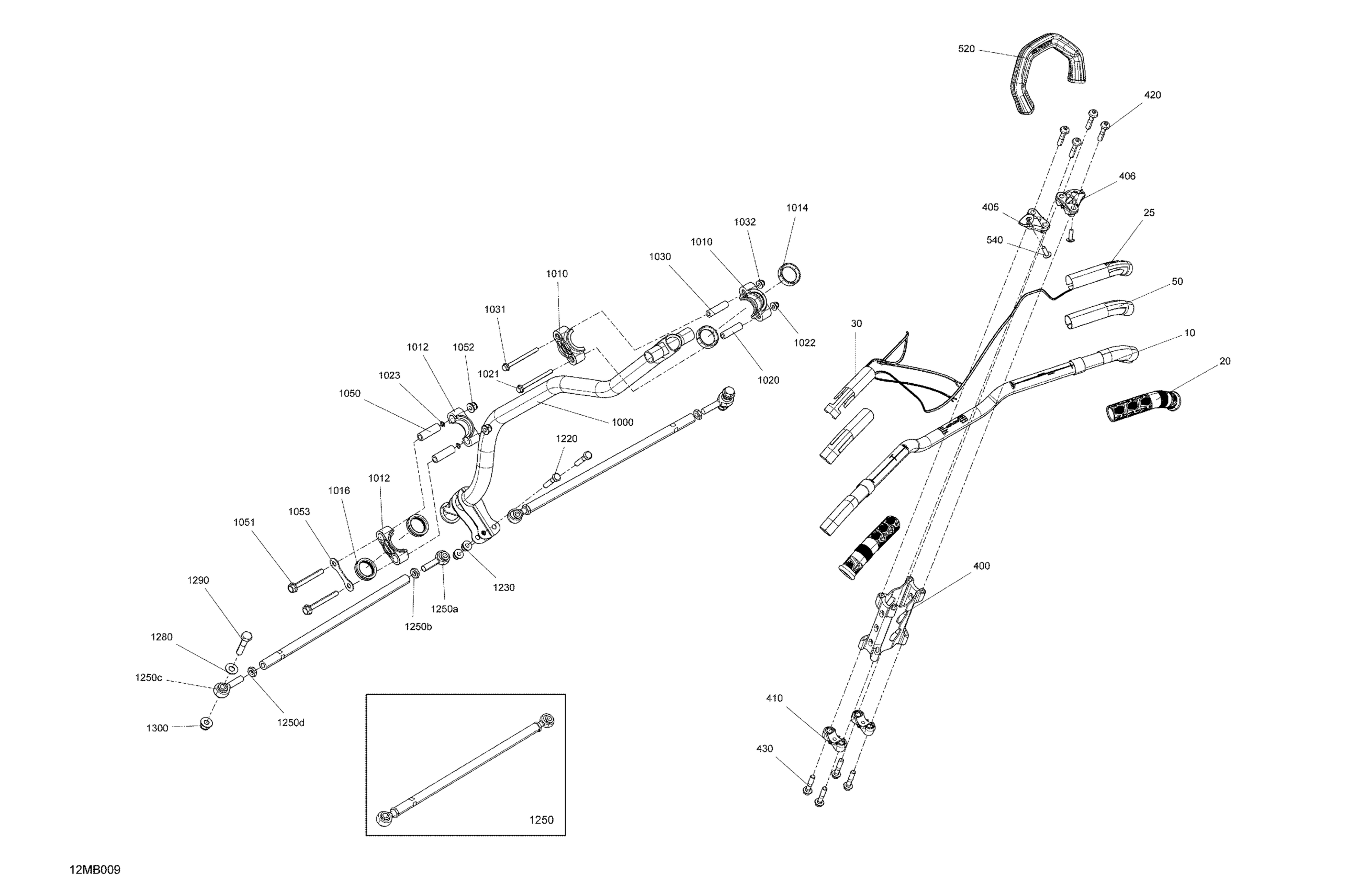

Ski-Doo SKANDIC WT 600 ACE - 2022 Mechanic - Steering Diagram

#

Description
Price

10

Aluminum Handle Bar

506152825

$80.49

20

Grip 148mm

506152560

$16.88

25

Heated Film

506152856

$48.99

30

RH 32 Watts Heated Film

506152857

$39.99

50

Thermal Insulation

506153176

$6.09

400

Riser Kit 145

860201718

$67.99

405

LH Handle Bar Support

506152867

$16.49

406

RH Handle Bar Support

506152928

$15.99

410

Steering Support

506152894

$14.49

420

Button Head Torx Screw M8 X 38

250000904

$2.11

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

520

Moulding Strap Ass'y

506153133

$50.99

540

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1000

Main Tube

506153014

$209.99

1010

Upper Half Housing

506152219

$1.79

1012

Lower Half Housing

506153048

$6.92

1014

Upper Vibration Ring

506152292

$0.74

1016

Lower Vibration Ring

506152518

$4.79

1020

Housing Bushing

506152297

$12.99

1021

Hex. Flange Screw M6 x 75

250001114

$4.44

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1023

O-Ring

293300123

$1.03

1030

Housing Bushing

506152297

$12.99

1031

Hex. Flange Screw M6 x 75

250001114

$4.44

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1050

Housing Bushing

506152937

$12.99

1051

Hex. Flange Screw M8 X 70

207687044

$7.41

1052

Hex. Elastic Flange Nut M8

233281416

$1.48

1053

Stopper Plate

506152938

$12.99

1220

Hex. Screw M8 X 40

207084044

$1.15

1230

Hex. Elastic Flange Nut M8

233281416

$1.48

1250

Tie Rod Ass'y | Includes 1250 to 1250d

506153104

$71.99

1250a

LH Thread Ball Joint

506152081

$41.49

1250b

LH Threaded Hex. Jam Nut M10

250100016

$0.74

1250c

RH Threaded Ball Joint

506152019

$41.49

1250d

RH Threaded Hex. Jam Nut M10

732610010

$0.74

1280

Washer

506152582

$4.55

1290

Hex. Screw M10 X 45

207004544

$1.69

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.51
