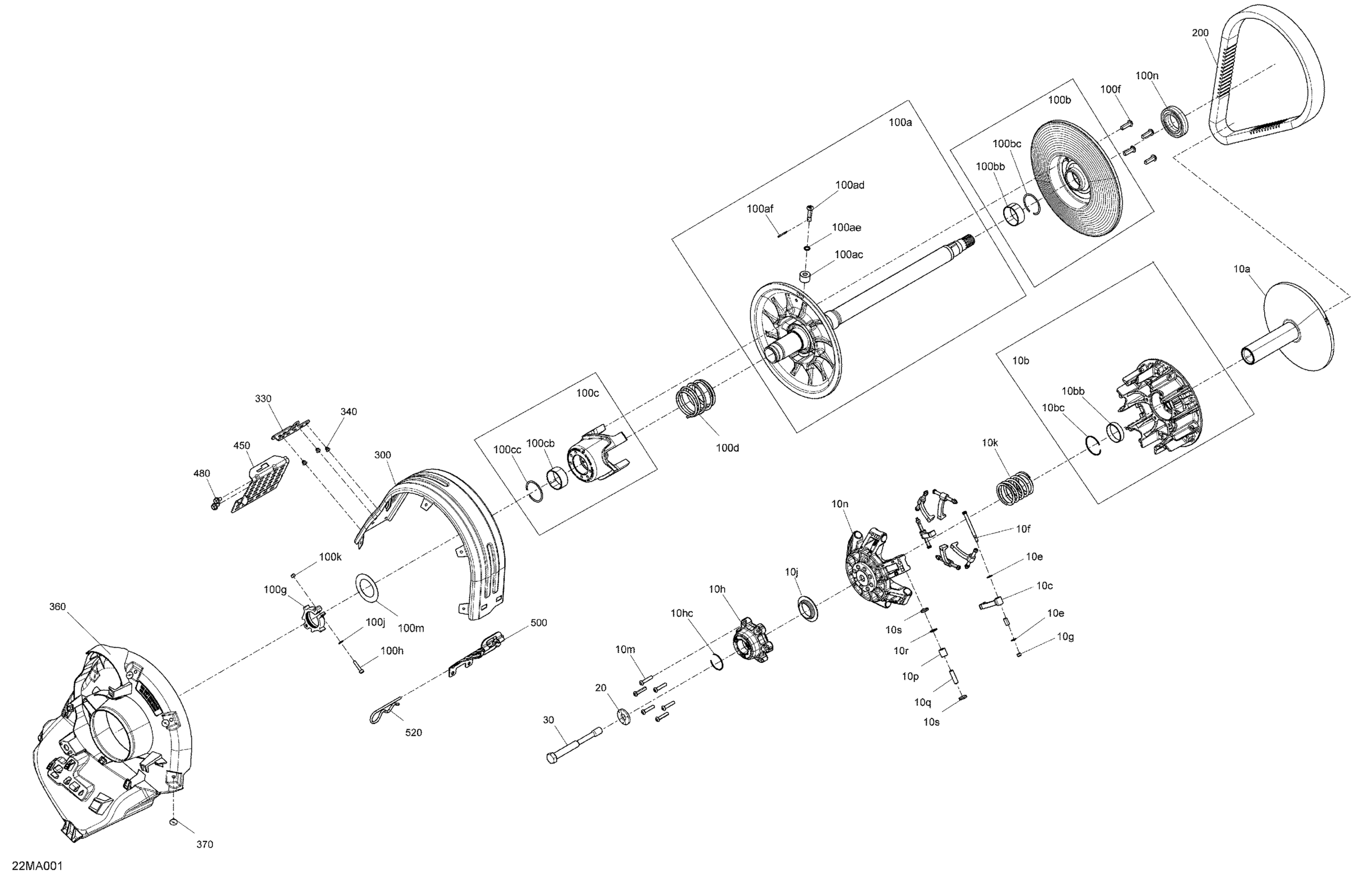

Ski-Doo SKANDIC WT 600 ACE - 2021 Drive - Pulley Diagram

#

Description
Price

10a

Fixed Flange Ass'y

417224091

$179.97

10b

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$198.43

10bb

Bushing

417222758

$20.74

10bc

Circlip

293370037

$3.02

10c

Ramp 716 Ass'y

417223508

$32.28

10e

Thrust Washer

417223255

$1.97

10f

Ramp Axle

417223694

$4.60

10g

Nut-Stop Elastic DIN.985

417224336

$0.85

10h

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$39.97

10hc

Circlip

293370065

$0.95

10j

Seat Spring

417223752

$13.43

10k

Clutch Spring

417223745

$13.52

10m

Torx Screw M6 X 30

250000580

$5.02

10n

Governor Cup Ass'y

417223865

$179.97

10p

Roller

417223767

$7.37

10q

Roller Axle

417223257

$7.74

10r

O-Ring

293300185

$0.95

10s

Slider Shoe

417223919

$3.68

20

Conical Spring Washer M14

250200144

$3.63

30

Pulley Drive Bolt

417300432

$42.99

100a

Sheave Driven Pulley Fixed Ass'y | Includes 100a to 100a6

417127754

$429.20

100ac

Pulley Roller

417127016

$23.05

100ad

Pivot Stud

417127294

$13.58

100ae

Lock Washer 8 mm

250200009

$2.06

100af

Spring Pin

250400070

$1.97

100b

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

100bb

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

100bc

Circlip

293370049

$4.71

100c

Cam Driven Pulley Ass'y | Includes 100c to 100c3

417127747

$129.99

100cb

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

100cc

Circlip

293370049

$4.71

100d

Release Spring

417127467

$44.58

100f

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

100g

Calibration Ass'y

415129604

$22.49

100h

Socket Screw M5 X 25

250000981

$1.34

100j

Flat Washer M5

234051410

$0.44

100k

Elastic Stop Nut M5

232551414

$0.72

100m

Washer

417127155

$8.03

100n

Ball Bearing

504152574

$34.58

200

Drive Belt

417300585

$154.58

300

Belt Guard

417300479

$69.97

330

Front Retaining Hook

417300525

$10.99

340

Avex Rivet

390909200

$0.29

360

CVT Cooling Duct

417300557

$26.89

370

Pop Rivet 3/16"

293150103

$0.54

450

Front Guard Support

417300583

$12.20

480

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89

500

Rear Guard Support

417300581

$12.09

520

Hair Pin

114045200

$10.69
