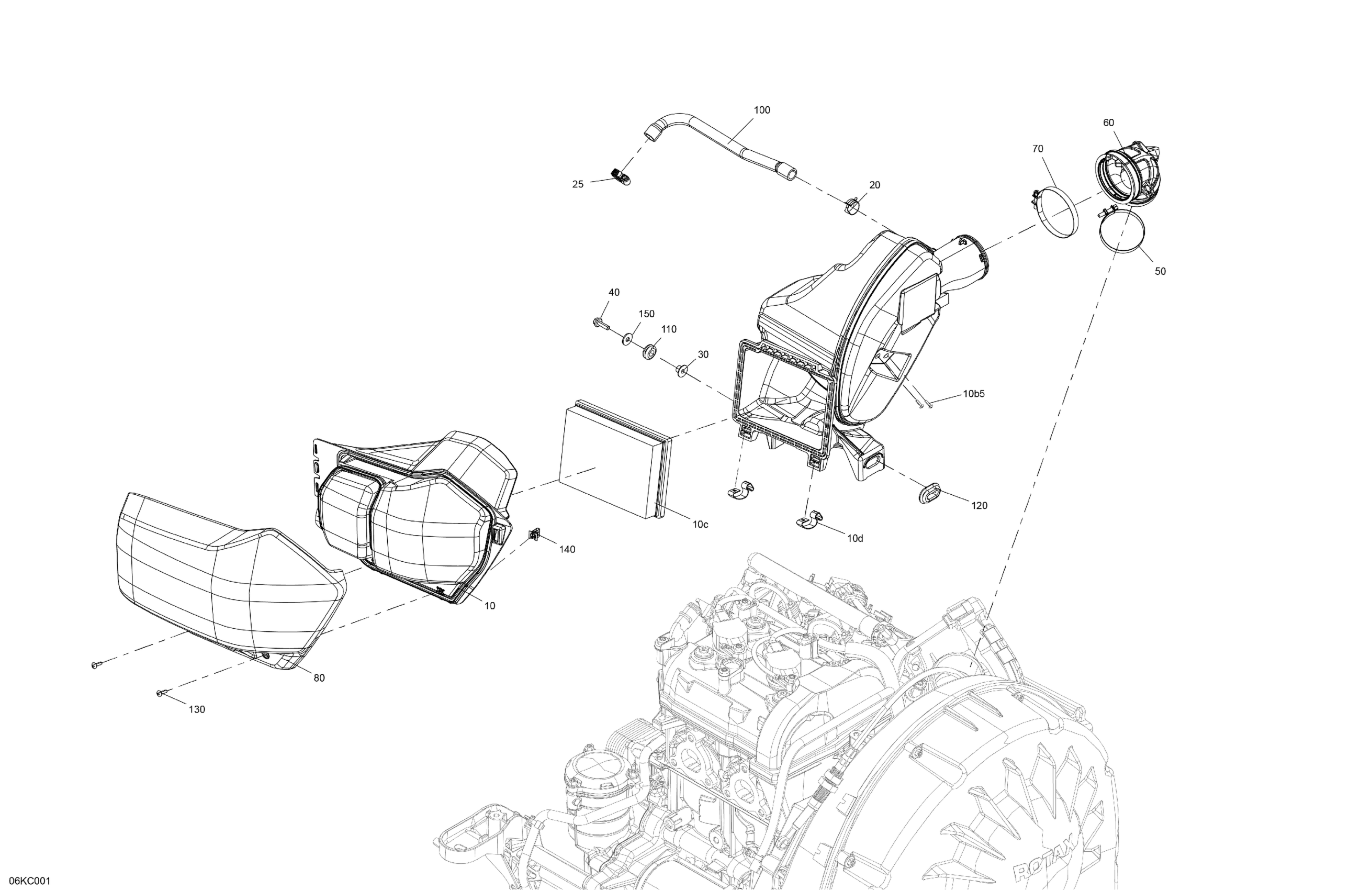

Can-Am RYKER 900 ACE, North America (F2PA), 2023 Engine - LH Air Intake Diagram

Description

Price

Air Intake Silencer | Includes 300a to 300a4

707800700

$184.99

10b5

Torx-Truss Pt K40 X 16

250000759

$2.11

10c

Air Filter

707800306

$46.49

10d

Cover Retainer

707800342

$9.19

Spring Clamp

513033865

$4.49

Tridon Gear Clamp

293650172

$3.09

Bushing

709001288

$9.09

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Gemi Clamp

293650229

$11.60

Air Intake Silencer Adaptor

707800712

$33.99

Gemi Clamp

508000150

$12.72

Lateral Cover

707801015

$114.99

100

Formed Hose

707800710

$34.99

110

Grommet

709001197

$5.29

120

Oval Grommet

517307638

$1.69

130

Torx-Truss Pt K40 X 16

250000759

$2.11

140

Edge Clip

517302785

$0.88

150

Flat Washer

250200082

$0.42
