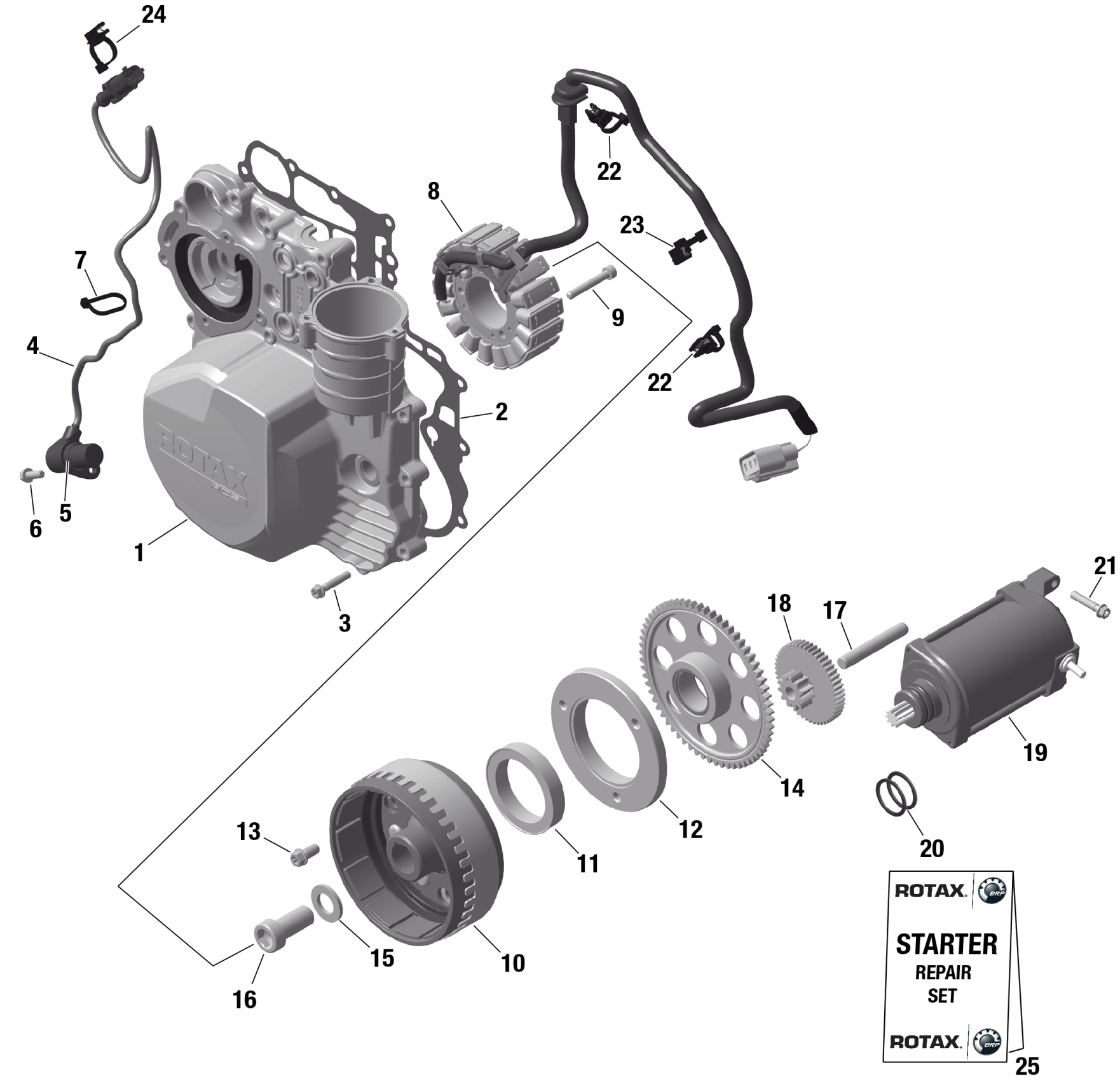

Can-Am RYKER 900 ACE, North America (F2PA), 2023 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Ignition Cover

420911055

$179.99

2

Gasket

420431640

$30.49

3

Torx Flange Screw M6 X 30

420440647

$2.00

4

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

5

O-Ring

420431580

$14.83

6

Torx Flange Screw M6 X 16

420440162

$3.17

7

Tie Rap

420866714

$1.90

8

Stator Plate

420296916

$319.49

9

Allen Screw M6 X 40

420241956

$3.17

10

Flywheel

420686278

$423.99

11

Sprag Clutch

420659113

$259.99

12

Sparg Clutch Housing

420659263

$154.99

13

Torx Flange Screw M8 X 16

420440852

$4.12

14

Free Wheel Gear, 64 Teeth

420434238

$114.99

15

Shim

420627270

$4.12

16

Socket Head Screw M16 X 35

420241549

$8.57

17

Needle Pin

420229475

$14.83

18

Starter Double Gear 11/49 T

420634741

$199.99

19

Starter Ass'y | Includes no. 19-20

420893835

$265.99

20

O-Ring

420250145

$10.33

21

Torx Flange Screw M6 X 30

420440647

$2.00

22

Cable Clamp 150mm

420951650

$4.44

23

Cable Clamp 200mm

420651812

$8.39

24

Tie-Rap With Mount

420951655

$1.79

25

Carbon Brush Set

420881145

$204.99
