Description

Price

10

Deep Black, Center Hood

517306288

$214.99

20

Torx Screw M5 X 20

250000528

$2.11

35

Panel Nut M5 X 0.8

250000958

$4.23

36

Washer

250200166

$2.11

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

50

Washer

517124300

$0.19

55

Rivet Plate

517305109

$4.99

60

Push Nut

508000853

$2.09

100a

Sunburst Yellow, RH Front Hood

517307040

$214.99

100b

Sunburst Yellow, RH Rear Hood

517307041

$209.99

110

Screw M4 X 16

250000725

$3.49

120

Torx Screw M5 X 20

250000528

$2.11

130

Torx Screw M5 X 26

250000587

$4.44

135

Washer

250200166

$2.11

140

Panel Nut M5 X 0.8

250000958

$4.23

145

RH Front Hood Foam

517305763

$13.49

146

RH Hood Foam

517306001

$13.49

150a

Sunburst Yellow, LH Front Hood

517307043

$214.99

150b

Sunburst Yellow, LH Rear Hood

517307044

$209.99

160

Screw M4 X 16

250000725

$3.49

180

Torx Screw M5 X 26

250000587

$4.44

185

Washer

250200166

$2.11

190

Panel Nut M5 X 0.8

250000958

$4.23

195

LH Front Hood Foam

517305764

$14.99

196

LH Hood Foam

517306002

$13.49

200

Rear Console

517307684

$174.99

210

Flange Elastic Nut M5

233251434

$2.00

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Console Nut

517306602

$13.49

250

O-Ring

706002839

$1.01

360

LH Front Console

517306582

$31.99

365

Cap

572051500

$5.89

600

Gauge Support

517307675

$35.99

620

Torx Truss M5 X 20

250000586

$4.44

630

Panel Nut M5 X 0.8

250000958

$4.23

800

Black, Low Windshield Kit | Includes 800 to 800f

860201448

$149.99

800a

Windshield 360

517306423

$159.49

800b

Deep Black, Windshield Support

517305749

$33.99

800c

Push Nut

732610072

$2.19

800d

Rubber Washer 5 mm

250200024

$2.19

800e

Gasket, Neoprene 2000Mm Long

219704476

$15.36

810

Grommet

517303756

$4.09

1095

Neoprene Seal 3000Mm Long

219704371

$51.99

1295

Neoprene Seal 3000Mm Long

219704371

$51.99

2400

Headlamp | Includes 2400 to 2400a

517305752

$449.99

2400a

Bulb

415130081

$41.49

2800

RH Deflector Black 63% Light Transm.

517305776

$35.99

2810

Grommet

517307161

$2.79

3000

Deflector LH, Black 63% Light Transm.

517305777

$35.99

3010

Grommet

517307161

$2.79

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$21.99

3200c

Push Nut

732610072

$2.19

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$21.99

3400b

Seal Joint

517305157

$2.39

3800

Headlamp Fairing

517306301

$73.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3830

Screw M4 X 16

250000725

$3.49

3840

Tuflok Plastic Rivet

293150230

$1.47

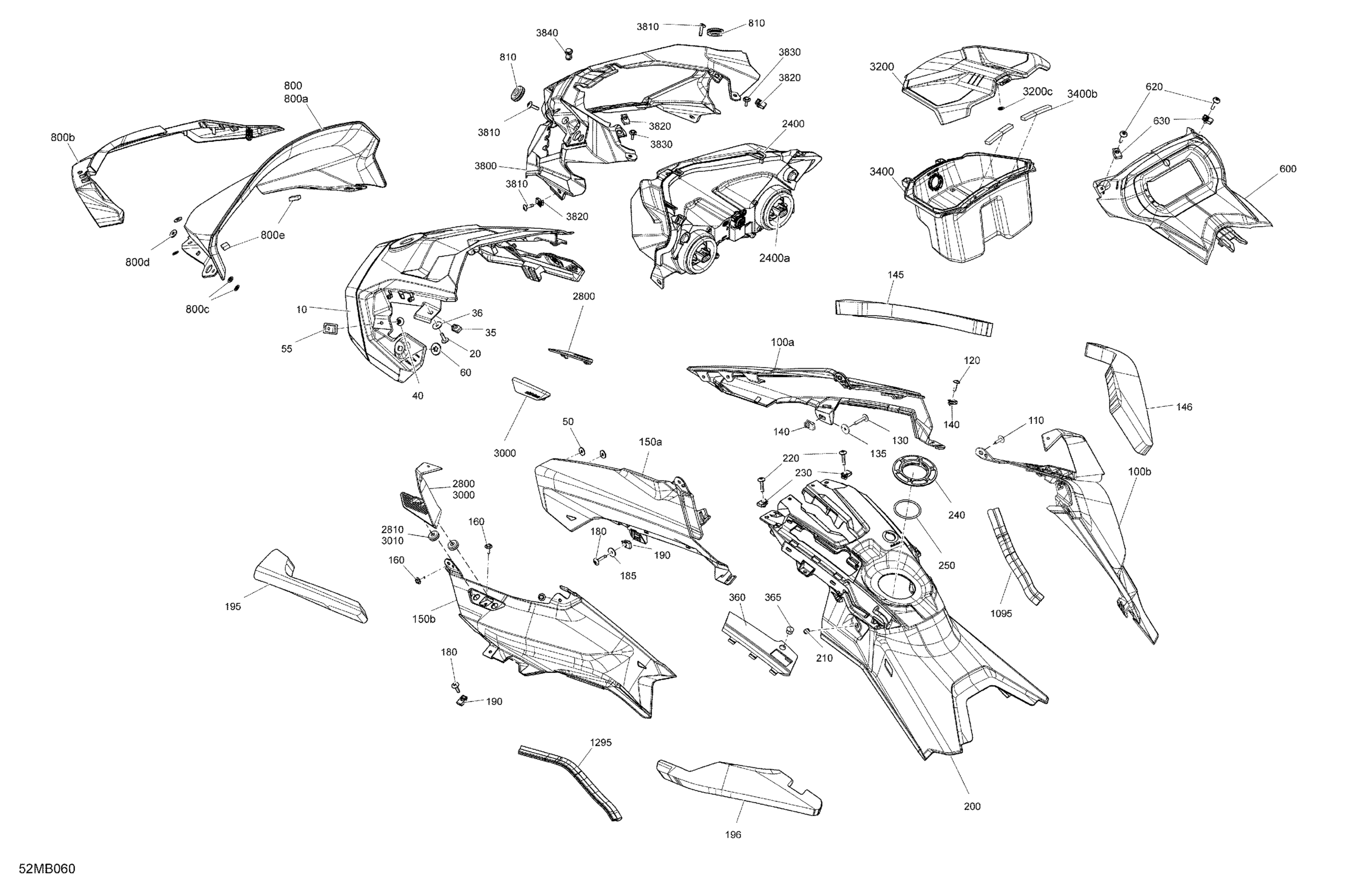

Ski-Doo 004 - RENEGADE 900 ACE - Adrenaline - Europe, 2022 07- Body - Hood Diagram

Deep Black, Center Hood

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Washer

Pop Rivet 3/16" | DS 650 X

Washer

Rivet Plate

Push Nut

Sunburst Yellow, RH Front Hood

Sunburst Yellow, RH Rear Hood

Screw M4 X 16

Torx Screw M5 X 20

Torx Screw M5 X 26

Washer

Panel Nut M5 X 0.8

RH Front Hood Foam

RH Hood Foam

Sunburst Yellow, LH Front Hood

Sunburst Yellow, LH Rear Hood

Screw M4 X 16

Torx Screw M5 X 26

Washer

Panel Nut M5 X 0.8

LH Front Hood Foam

LH Hood Foam

Rear Console

Flange Elastic Nut M5

Torx Screw M5 X 26

Panel Nut M5 X 0.8

Console Nut

O-Ring

LH Front Console

Cap

Gauge Support

Torx Truss M5 X 20

Panel Nut M5 X 0.8

Black, Low Windshield Kit | Includes 800 to 800f

Windshield 360

Deep Black, Windshield Support

Push Nut

Rubber Washer 5 mm

Gasket, Neoprene 2000Mm Long

Grommet

Neoprene Seal 3000Mm Long

Neoprene Seal 3000Mm Long

Headlamp | Includes 2400 to 2400a

Bulb

RH Deflector Black 63% Light Transm.

Grommet

Deflector LH, Black 63% Light Transm.

Grommet

Cover Ass'y | Includes 3200 to 3200c

Push Nut

Trunk Ass'y | Includes 3400 to 3400b

Seal Joint

Headlamp Fairing

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Screw M4 X 16

Tuflok Plastic Rivet
