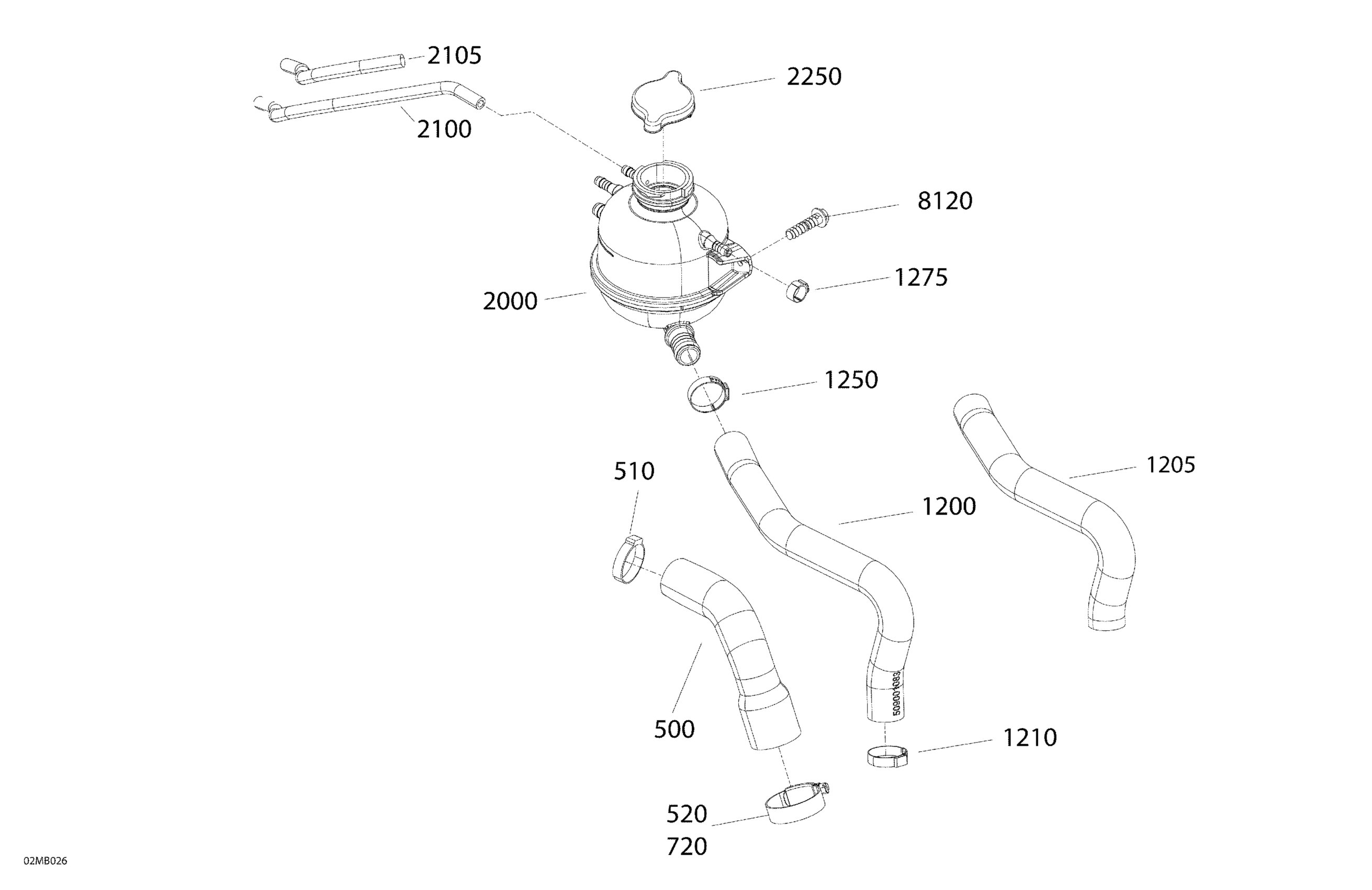

Ski-Doo RENEGADE 900 ACE - Adrenaline - Europe, 2022 Engine - Cooling Diagram

Description

Price

500

Hose Radiator In

509001079

$14.90

510

Oetiker Gear Clamp 36.1MM

509000045

$4.07

520

Aba Gear Clamp, 26-38 MM

509000443

$5.64

720

Aba Gear Clamp, 26-38 MM

509000443

$5.64

1200

Coolant Tank Hose

509001083

$14.90

1205

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

1210

Crimp Clamp

293650099

$4.07

1250

Oetiker Clamp

509001041

$1.87

1275

Oetiker Clamp

293650046

$2.67

2000

Cooling Tank

509001011

$83.55

2100

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

2105

Protector Tube | Not shown

503195447

$12.21

2250

Radiator Pressure Cap

509000180

$13.42

8120

Hex. Flange Screw K50 X 20

241152060

$1.81
