Description

Price

10

Center Hood

517307755

$214.99

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

55

Rivet Plate

517305109

$4.99

60

Push Nut

508000853

$2.09

70

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

75

Rivet Plate

517305109

$4.99

100

RH Front Hood | Model Platinum Silver Satin

517308392

$214.99

110

Screw M4 X 16

250000725

$3.49

120

Torx Screw M5 X 20

250000528

$2.11

130

Torx Screw M5 X 26

250000587

$4.44

135

Washer

250200166

$2.11

140

Panel Nut M5 X 0.8

250000958

$4.23

146

RH Front Hood Acoustic Insulation

517307948

$12.49

150

LH Front Hood | Model Platinum Silver Satin

517308393

$214.99

160

Screw M4 X 16

250000725

$3.49

170

Torx Screw M5 X 20

250000528

$2.11

175

Screw M4 X 16

250000725

$3.49

180

Torx Screw M5 X 26

250000587

$4.44

185

Washer

250200166

$2.11

190

Panel Nut M5 X 0.8

250000958

$4.23

195

LH Front Hood Acoustic Insulation

517307950

$13.99

200

Rear Console

517307756

$179.99

210

Flange Elastic Nut M5

233251434

$2.00

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Console Nut

517306602

$13.49

250

O-Ring

706002839

$1.01

320

Self Adhesive Weather Strip

517308930

$2.39

360

Front Console

517307912

$31.99

365

Cap

517308261

$1.39

370

Tuflok Plastic Rivet

293150230

$1.47

375

Push Nut

732610072

$2.19

390

Connecting Plate

517308232

$12.99

500

RH Hood

517308227

$209.99

550

LH Hood

517308228

$209.99

600

Gauge Support

517307751

$38.99

620

Screw M4 X 16

250000889

$3.09

630

Stainless Steel Flat Washer

234062670

$2.11

640

Torx Truss Screw M6 X 12

250000767

$2.00

700

Access Cover

517308111

$38.99

800

Ultra Low Windshield 220 mm Ass'y | Includes 800 to 800b

517308239

$153.49

800a

Ultra Low Windshield

517308240

$159.49

800b

Windshield Support

517307973

$24.99

810

Grommet

517303756

$4.09

1450

Molded Gasket

517308553

$5.49

2400

Headlight Ass'y

517308291

$589.99

2800

RH Rear Cap

517308236

$14.99

3000

LH Rear Cap

517308237

$13.49

3200

Box Cover Ass'y | Includes 3200 to 3200d

517307754

$30.99

3200c

Push Nut

732610072

$2.19

3200d

Joint Seal

517308246

$2.39

3220

Box Cap

517308260

$13.49

3410

Screw M4 X 16

250000889

$3.09

3800

Upper Fairing

517308231

$64.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3880

Panel Nut M5 X 0.8

250000958

$4.23

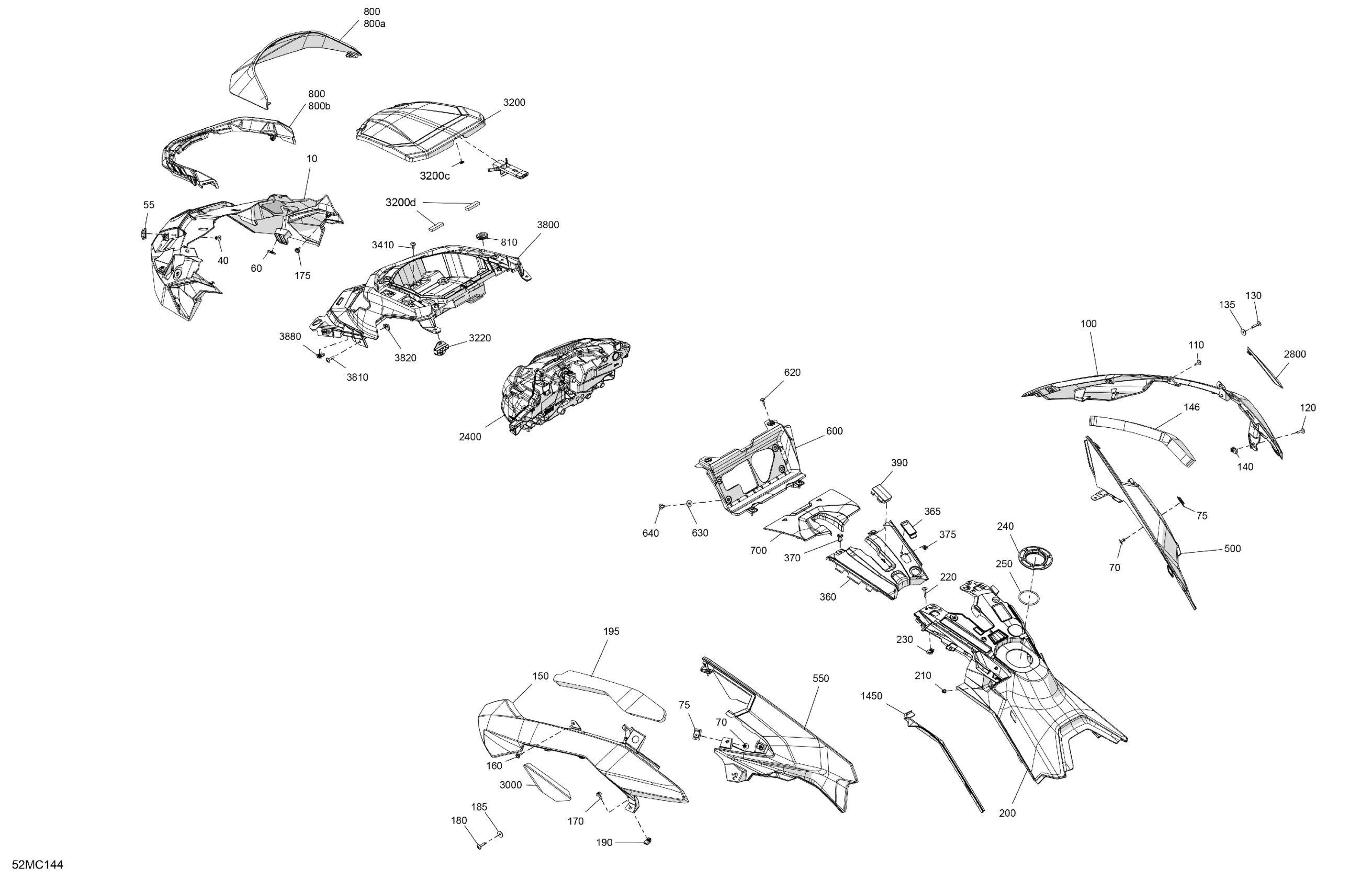

Ski-Doo 004 - RENEGADE 850 E-TEC - XRS SMART-SHOX - Europe, 2023 07- Body - Hood Diagram

Center Hood

Pop Rivet 3/16" | DS 650 X

Rivet Plate

Push Nut

Pop Rivet 3/16" | DS 650 X

Rivet Plate

RH Front Hood | Model Platinum Silver Satin

Screw M4 X 16

Torx Screw M5 X 20

Torx Screw M5 X 26

Washer

Panel Nut M5 X 0.8

RH Front Hood Acoustic Insulation

LH Front Hood | Model Platinum Silver Satin

Screw M4 X 16

Torx Screw M5 X 20

Screw M4 X 16

Torx Screw M5 X 26

Washer

Panel Nut M5 X 0.8

LH Front Hood Acoustic Insulation

Rear Console

Flange Elastic Nut M5

Torx Screw M5 X 26

Panel Nut M5 X 0.8

Console Nut

O-Ring

Self Adhesive Weather Strip

Front Console

Cap

Tuflok Plastic Rivet

Push Nut

Connecting Plate

RH Hood

LH Hood

Gauge Support

Screw M4 X 16

Stainless Steel Flat Washer

Torx Truss Screw M6 X 12

Access Cover

Ultra Low Windshield 220 mm Ass'y | Includes 800 to 800b

Ultra Low Windshield

Windshield Support

Grommet

Molded Gasket

Headlight Ass'y

RH Rear Cap

LH Rear Cap

Box Cover Ass'y | Includes 3200 to 3200d

Push Nut

Joint Seal

Box Cap

Screw M4 X 16

Upper Fairing

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Panel Nut M5 X 0.8
