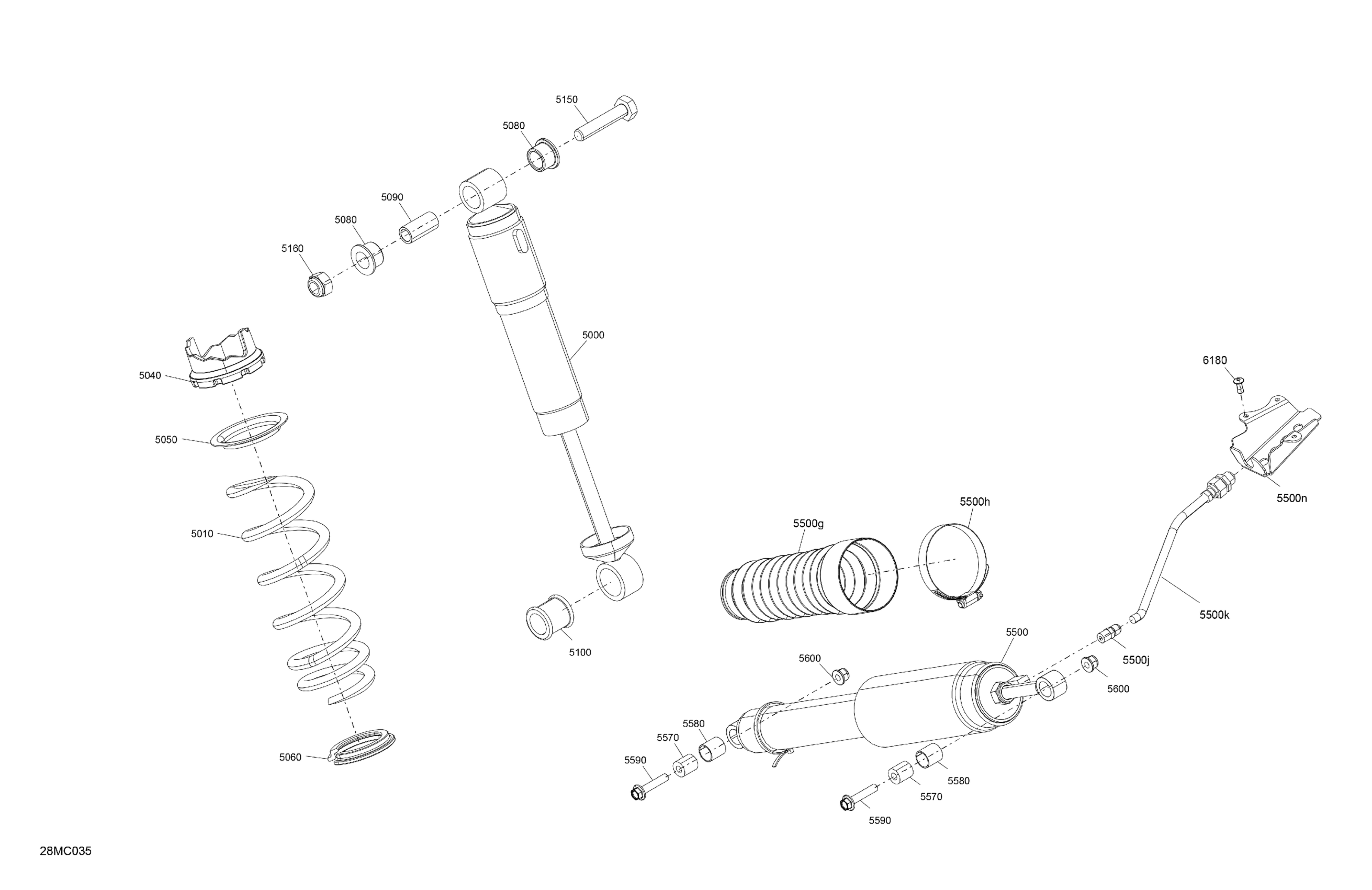

Ski-Doo RENEGADE 600R E-TEC - ENDURO - 2023 Suspension - Rear Shocks Diagram

Description

Price

5000

Center Shock

503195745

$238.43

5010

Spring

503195855

$61.51

5040

Adjustment Cam

505073625

$12.18

5050

Spring Guide

503191872

$2.18

5060

Spring Stopper

503194270

$16.89

5080

Urethane Bushing

503189117

$6.88

5090

Bushing | Includes 240d to 240d1

503189282

$4.18

5100

Bushing

503189271

$10.46

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

5160

Elastic Locking Nut M10

233601466

$1.74

5500

Rear Shock | Includes 5500 to 5500n

503196193

$716.99

5500g

Protection Boot

570278300

$59.97

5500h

Tridon Clamp

293650064

$7.80

5500j

Male Pneumatic Connector

503191939

$45.99

5500k

Air Hose Ass'y

503192652

$123.82

5500n

Bracket

503194925

$35.35

5570

Axle Shock Absorber

503196509

$11.98

5580

Leg Cushion

505072663

$7.40

5590

Hex Flange Screw M8 X 40

207684056

$1.22

5600

Elastic Flange Nut M8

233281466

$0.83

6180

Black, 3/16 Pop Rivet

293150232

$0.91
