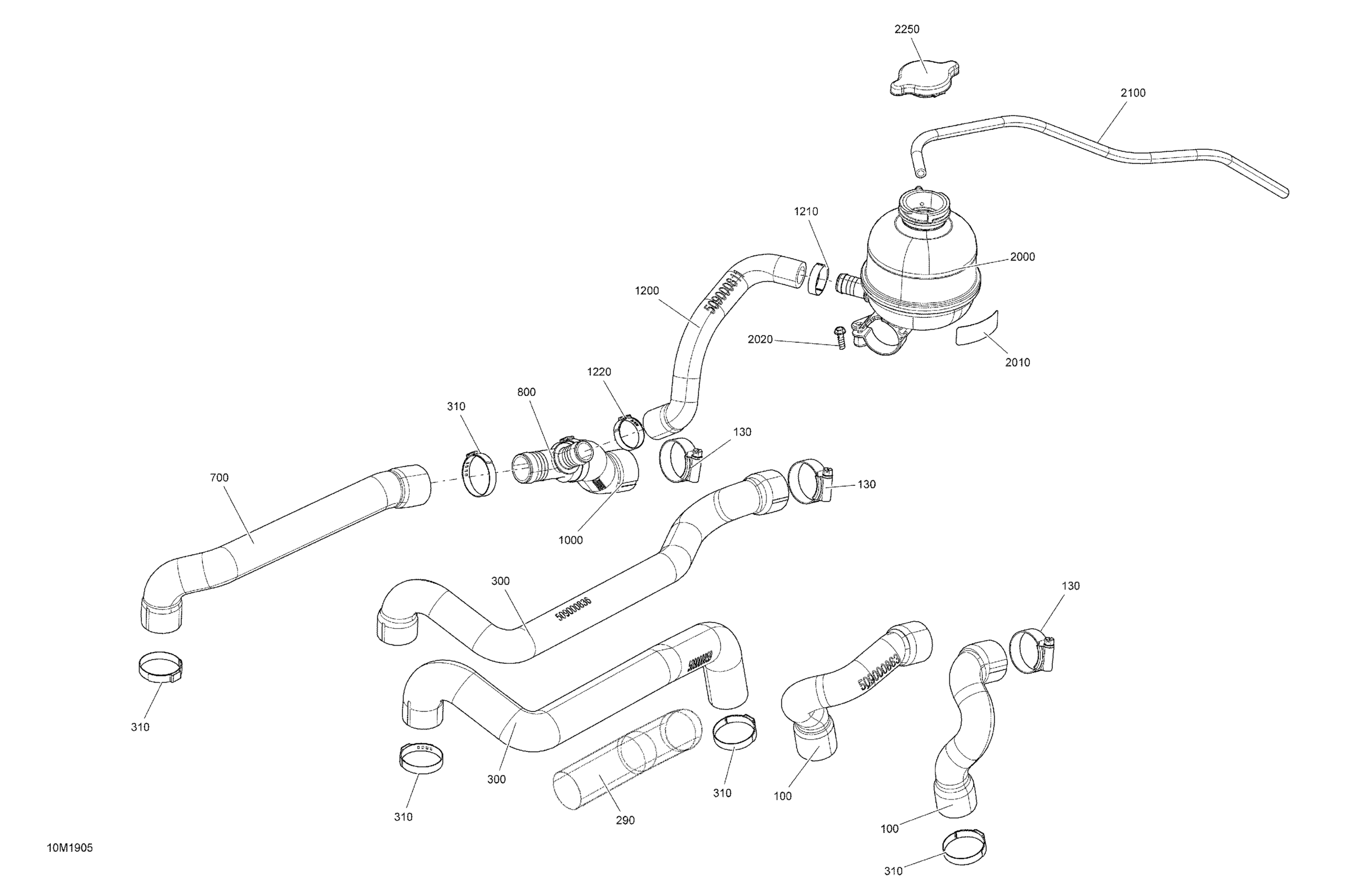

Ski-Doo RENEGADE 600 ACE, 2019 Cooling - 600 ACE Diagram

Description

Price

130

Aba Gear Clamp, 26-38 MM

509000443

$12.72

290

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

300

Engine Outlet Hose

509000836

$27.99

310

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

700

Radiator Return Hose

509001062

$16.33

710

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

800

T-Fitting

509000372

$10.33

1000

Radiator Hose

509000921

$13.49

1010

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

1020

Aba Gear Clamp, 26-38 MM

509000443

$12.72

1200

Filling Hose

509001063

$15.28

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1220

Crimp Clamp

293650099

$4.29

2000

Cooling Tank

509000881

$92.99

2010

Warning Decal

516005904

Unavailable

2020

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

2100

Hose

509000775

$11.49

2250

Radiator Pressure Cap

509000180

$20.49
