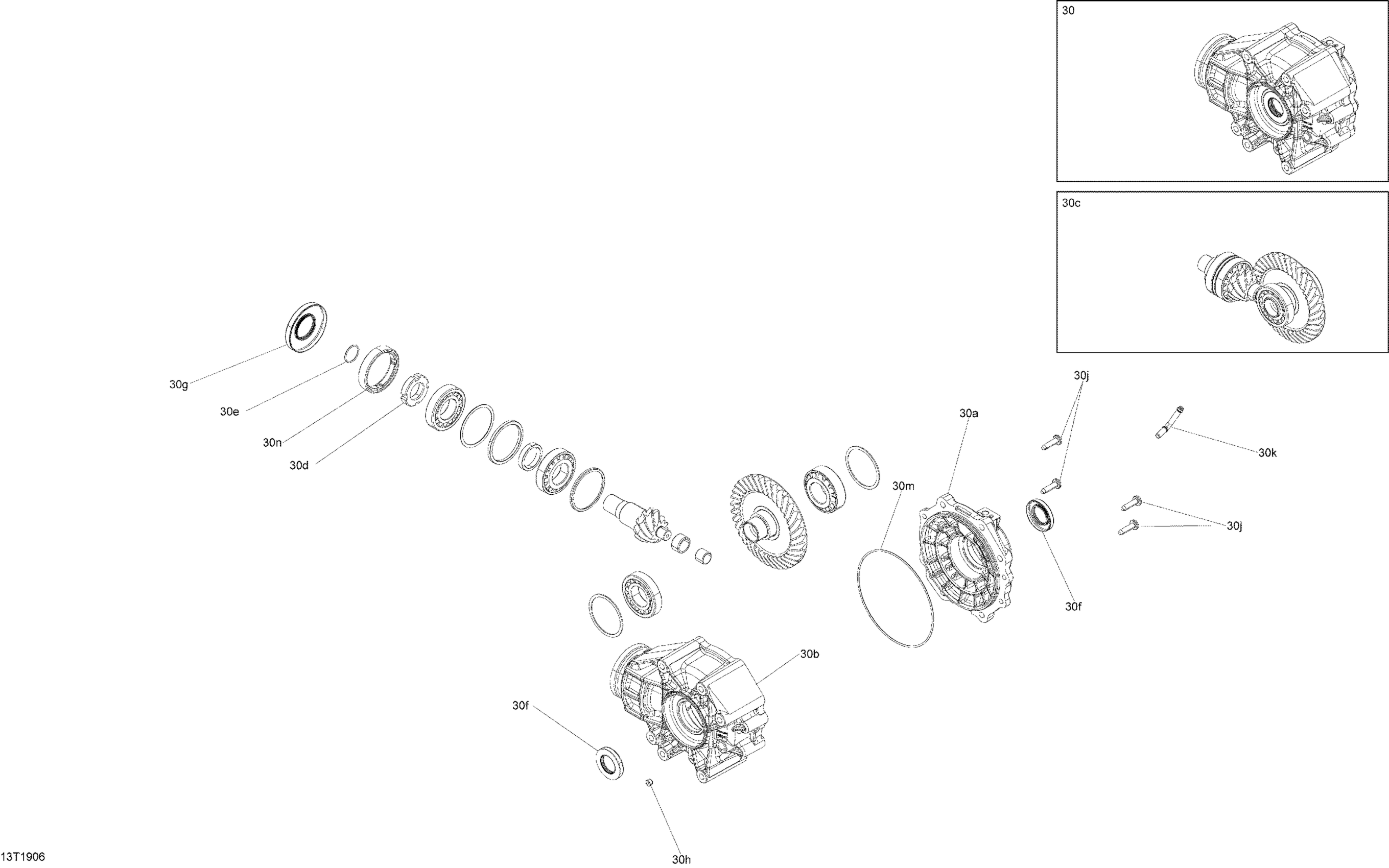

Can-Am Outlander 650 EFI - 2019 Rear Drive - Final Drive Unit Diagram

Description

Price

Rear Final Drive Unit | Includes 30 to 30n

705503536

$1,269.20

30a

Rear Cover

705502547

$156.89

30b

Rear Pinion Cover

705502180

$281.51

30c

Gear Kit - 10/36 teeth | Built Feb 2019 and Up

703501031

$369.20

30d

Nut

705501550

$23.05

30e

O-Ring

705501554

$4.62

30f

Oil Seal

705501556

$17.66

30g

Oil Seal

705501557

$18.43

30h

Plug Drain

705501724

$5.98

30j

Screw

705502063

$3.08

30k

Breather Tube

705501584

$13.86

30m

O-Ring

705501711

$9.29

30n

Nut

705501549

$32.28
