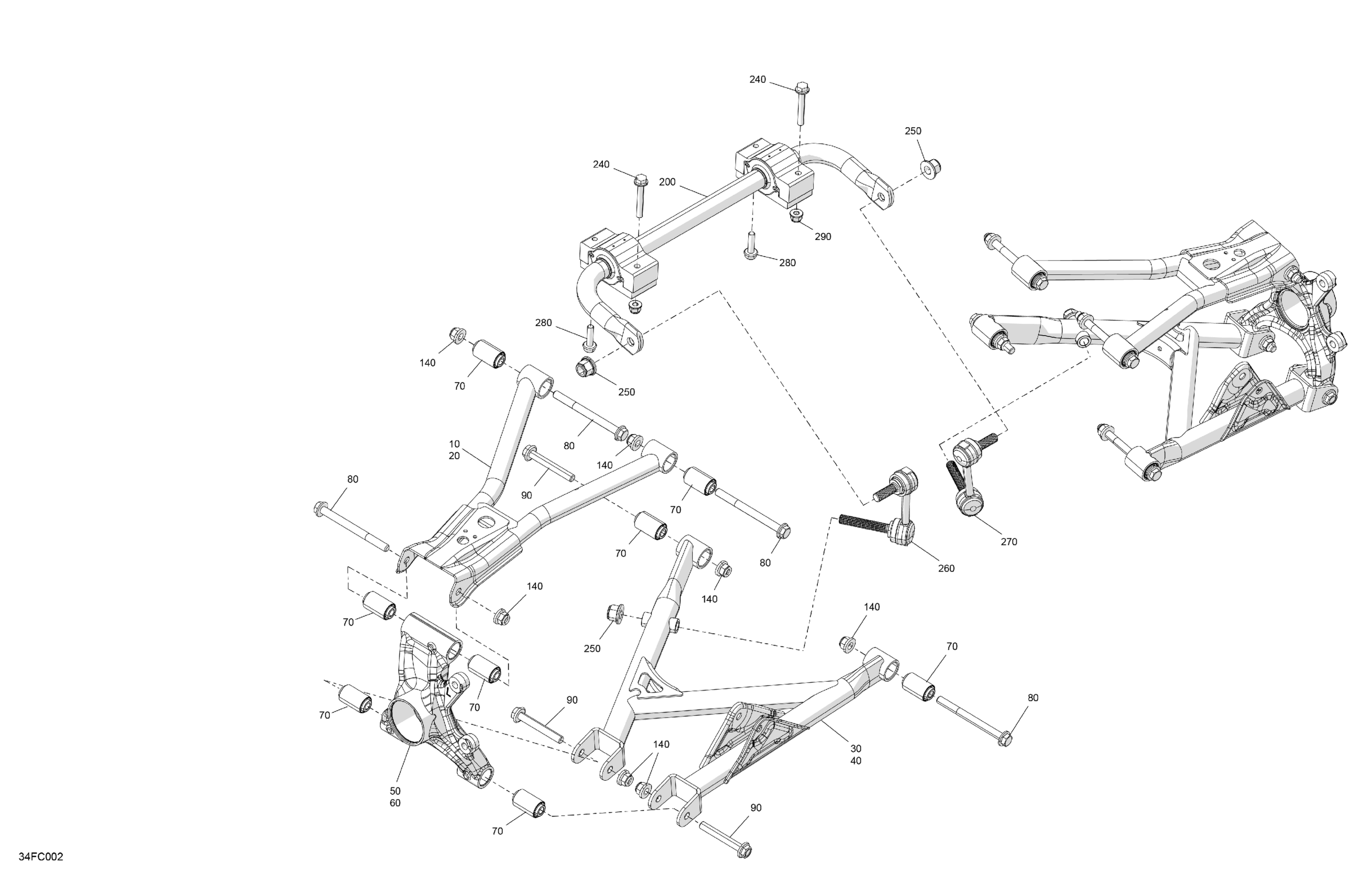

Can-Am Outlander 500 2X4 - 2023 Suspension - Rear Components Diagram

LH Upper Suspension Arm

706003510

$147.73

RH Upper Suspension Arm

706003511

$147.73

LH Lower Suspension Arm Ass'y With Bushing This part replaces 706003512.

715010681

$205.94

RH Lower Suspension Arm Ass'y With Bushing This part replaces 706003513.

715010680

$205.94

LH Rear Knuckle

706004297

$111.91

RH Rear Knuckle

706004298

$111.91

Suspension Arm Bushing

706004511

$11.87

Hex Flange Screw DIN.6921

230601046

$2.52

Hex. Flange Screw M10 X 70

207607046

$2.82

Hex. Flange Elastic Nut M10

233201436

$2.00

Stabilizer Bar Ass'y

706004983

$91.01

Hex. Flange Screw M8 X 55

207685544

$5.06

Hex. Flange Elastic Nut M12

233221414

$5.85

LH Rear Stabilizer Link

706205088

$64.15

RH Rear Stabilizer Link

706205089

$64.15

Hex. Flange Screw M8 X 30 Scotch Grip

250001073

$4.12

Hex. Flange Elastic Nut M8

233281414

$1.31
