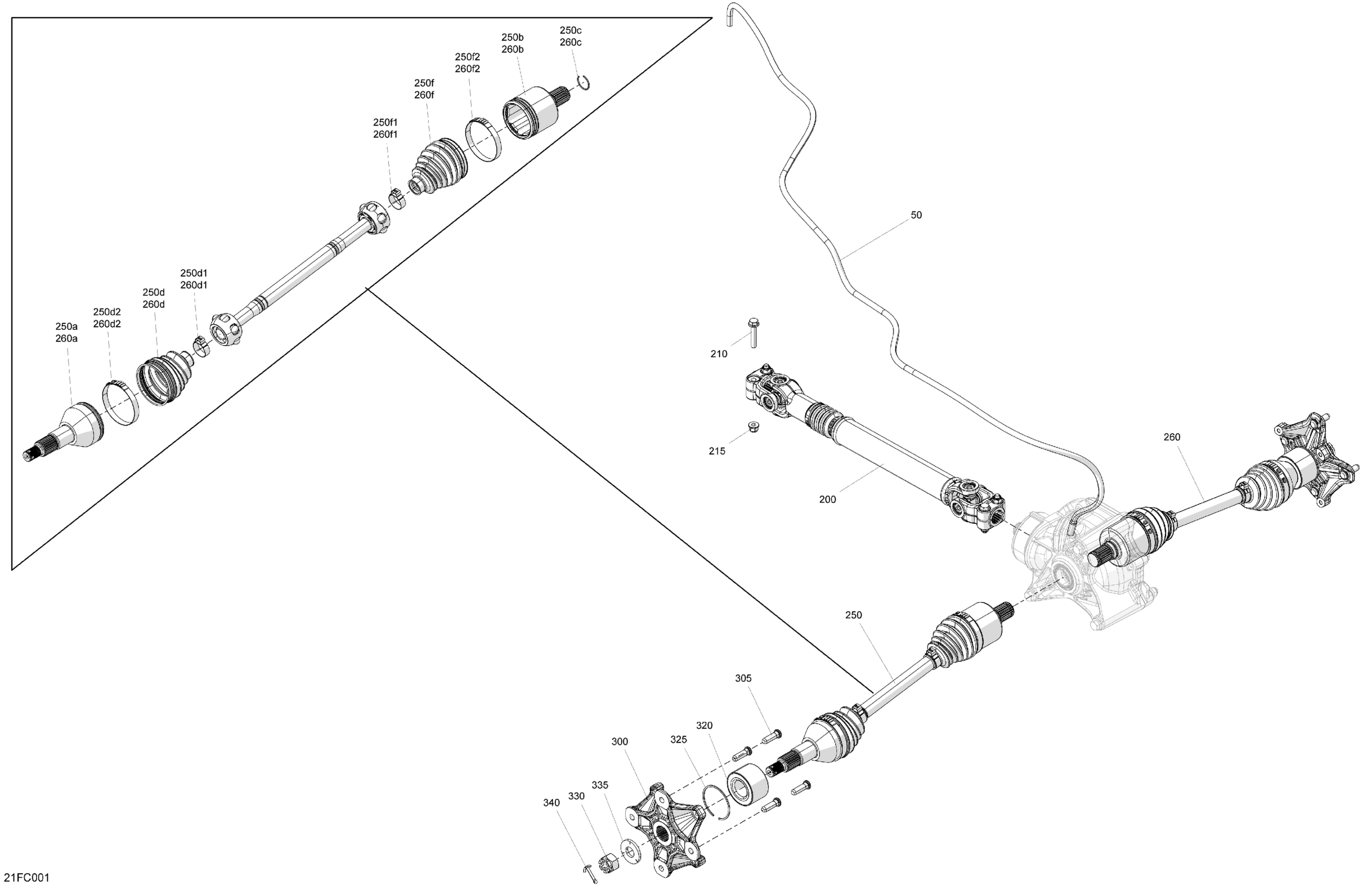

Can-Am Outlander MAX DPS 500 - 2023 Drive - Rear - Common Parts Diagram

Description

Price

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

200

Rear Drive Axle

705502982

$264.99

210

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.72

215

Hex. Elastic Flange Nut M8

233281416

$1.48

250

CV Joint | Includes 250 to 250f2

705502928

$243.99

250a

CV Joint Fix

715500461

$259.49

250b

Plunging Joint

715500462

$259.49

250c

Circlip Joint

715500463

$5.35

250d

CV Boot Joint Kit | Includes 250d to 250d2

715500464

$42.49

250d1

Clamp Small

715500475

$5.29

250d2

Clamp Large

715500476

$4.76

250f

CV Boot Joint Kit | Includes 250f to 250f2

715500465

$42.49

250f1

Clamp Small

715500475

$5.29

250f2

Clamp Large

715500477

$5.29

260

CV Joint | Includes 250 to 250f2

705502928

$243.99

260a

CV Joint Fix

715500461

$259.49

260b

Plunging Joint

715500462

$259.49

260c

Circlip Joint

715500463

$5.35

260d

CV Boot Joint Kit | Includes 250d to 250d2

715500464

$42.49

260d1

Clamp Small

715500475

$5.29

260d2

Clamp Large

715500476

$4.76

260f

CV Boot Joint Kit | Includes 250f to 250f2

715500465

$42.49

260f1

Clamp Small

715500475

$5.29

260f2

Clamp Large

715500477

$5.29

300

Wheel Hub

705503257

$101.49

305

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

320

Ball Bearing

293350150

$52.99

325

Circlip

293370019

$4.68

330

Hex. Flange Castellated Nut M18

232291413

$7.98

335

Conical Spring Washer M18

250200171

$7.65

340

Cotter Pin

250400071

$2.11
