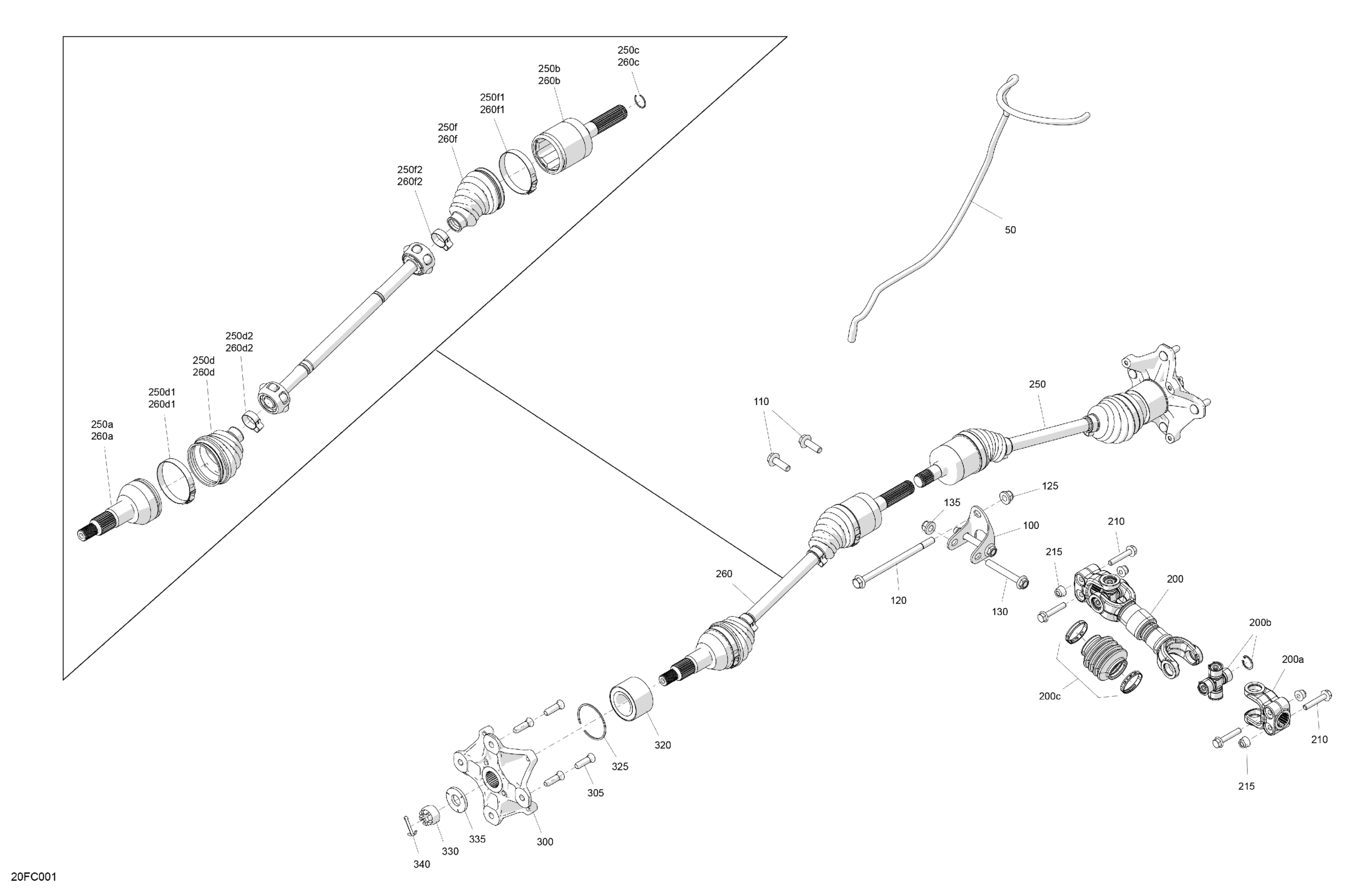

Can-Am Outlander 500 4X4 - 2023 Drive - Front - Common Parts Diagram

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

Support

705402706

$6.73

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.82

Hex. Flange Screw M10 X 160

230606046

$6.99

Hex. Flange Elastic Nut M10

233201436

$2.00

Hex. Flange Screw M10 X 75

207607544

$6.66

Hex. Flange Elastic Nut M10

233201436

$2.00

Front Drive Axle | Includes 200 to 200c

705402696

$237.28

Connecting Yoke 18Th

715900938

$23.10

Universal Joint Ass'y

715900911

$43.25

Ball Joint Boot ( 696 )

715900941

$13.28

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.79

Hex. Elastic Flange Nut M8

233281416

$1.43

RH Front CV Joint | Includes 250 to 250f

705402250

$226.84

JOINT CV FIX - Call your local BRP dealership

715500453

Unavailable

PLUNGING JOINT - Call your local BRP dealership

715500454

Unavailable

Circlip Joint

715500455

$4.19

CV Joint Boot Kit | Includes 250d to 250d2

715500456

$39.52

Clamp Large

715500472

$4.94

Clamp Small

715500473

$4.45

CV Joint Boot Kit | Includes 250f to 250f2

715500457

$39.52

Clamp Large

715500474

$4.94

Clamp Small

715500473

$4.45

LH Front CV Joint | Includes 260 to 260f

705402251

$226.84

JOINT CV FIX - Call your local BRP dealership

715500453

Unavailable

Plunging Joint

715500458

$240.27

Circlip Joint

715500455

$4.19

CV Joint Boot Kit | Includes 250d to 250d2

715500456

$39.52

Clamp Large

715500472

$4.94

Clamp Small

715500473

$4.45

CV Joint Boot Kit | Includes 250f to 250f2

715500457

$39.52

Clamp Large

715500474

$4.94

Clamp Small

715500473

$4.45

Wheel Hub

705503257

$94.00

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

Ball Bearing

293350150

$50.34

Circlip

293370019

$4.68

Hex. Flange Castellated Nut M18

232291413

$3.24

Conical Spring Washer M18

250200171

$6.06

Cotter Pin

250400071

$2.00
