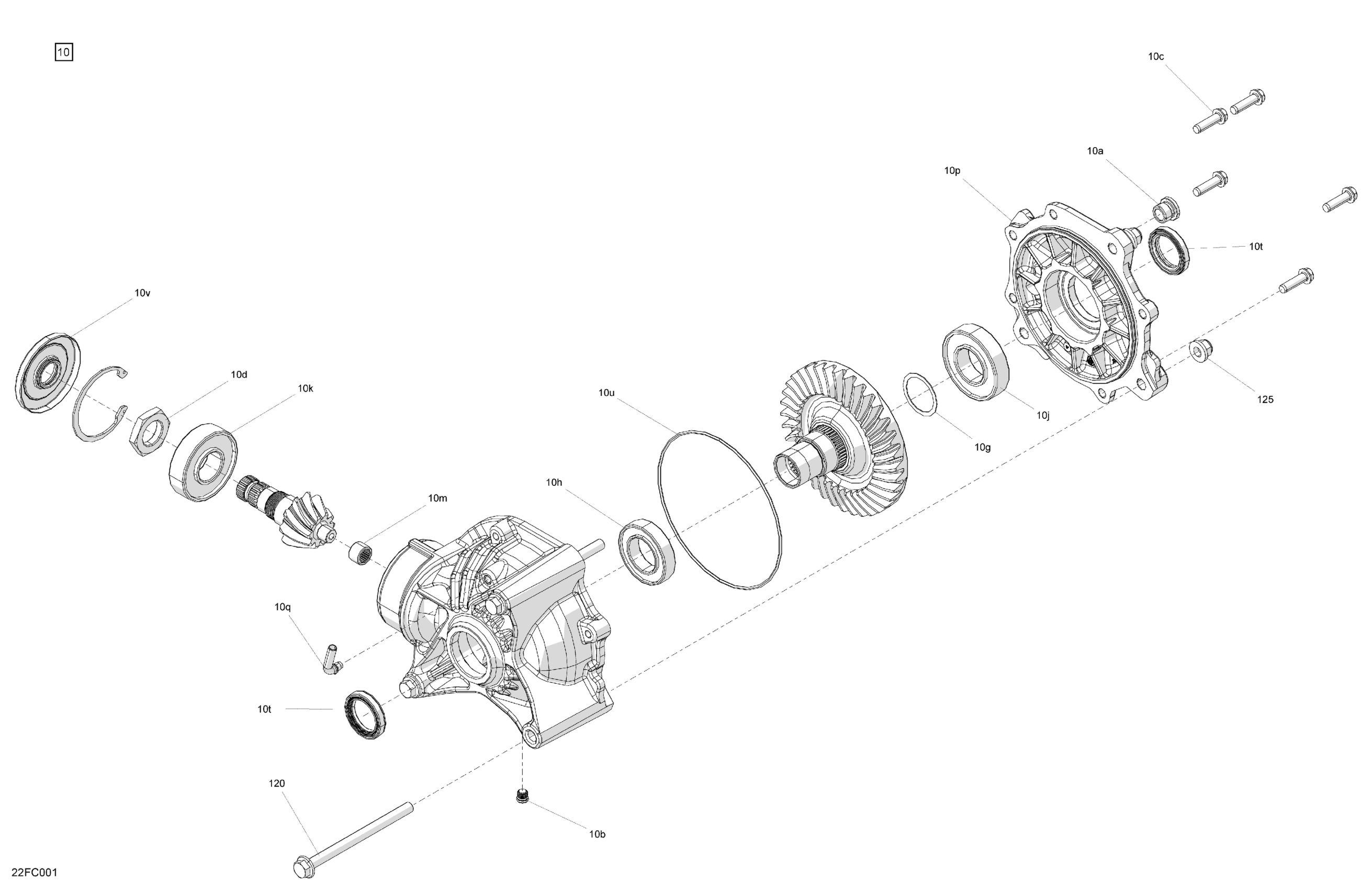

Can-Am Outlander 500 2X4 - 2023 Drive - Final Drive Unit Diagram

Description

Price

Final Drive Unit | Includes 10 to 10v

705503576

$1,269.20

10a

Fill Level Plug

705501889

$18.43

10b

Fill Level Plug M10

715900563

$27.66

10c

Bolt

705501886

$6.75

10d

Round Slotted Nut

705503362

$13.83

10g

Shim

705402846

$32.28

10h

Ball Bearing

705402847

$46.12

10j

Ball Bearing

705503365

$49.20

10k

Ball Bearing

705401821

$30.39

10m

Ball Bearing | After May 30, 2014

705402848

$46.12

10p

Final Drive Cover

705502866

$138.43

10q

Vent Valve

705401935

$14.37

10t

Final Drive Gasket

705503366

$18.43

10u

O-Ring Seal

705503367

$32.28

10v

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$16.89

120

Hex. Flange Screw M10 X 135

250001041

$4.46

125

Hex. Flange Elastic Nut M10

233201436

$1.74
