Description

Price

10

Fuel Tank | Includes 10 to 10b

709001182

$309.99

10b

Special Nut M130

250100062

$21.99

20

Fuel Pump | Includes 20 to 20b

709001192

$372.49

20a

Fuel Pre-Filter

709001390

$79.49

20b

Fuel Level Sensor This part replaces 709001391.

709001695

Unavailable

30

Gasket

293250173

$18.49

40

Fuel Tank Hose

709001096

$39.49

50

Fuel Cap

709000868

$32.99

70

Hex. Flange Screw M6 X 25

207662554

$1.48

80

Shouldered Bushing

709001343

$2.69

100

Hex. Flange Elastic Nut M6

233261466

$2.00

120

Y-Fitting

293710059

$9.69

130

Hose 6.35MM ID

219704534

$25.99

135

Hose 6.35MM ID

219704534

$25.99

140

Hose 6.35MM ID

219704534

$25.99

150

Check Valve

275500398

$10.99

160

Hose 6.35MM ID

219704534

$25.99

170

Hose 6.35MM ID

219704534

$25.99

180

Filter

709001120

$8.05

190

Spring Clamp

414415200

$0.88

220

Panel

709001104

$18.49

230

Panel Nut M6 X 1.0

250100198

$2.11

240

Torx Screw M6 X 20

250000722

$1.68

410

Oetiker Clamp

293650046

$2.89

500

Ground Wire

278003272

$20.99

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

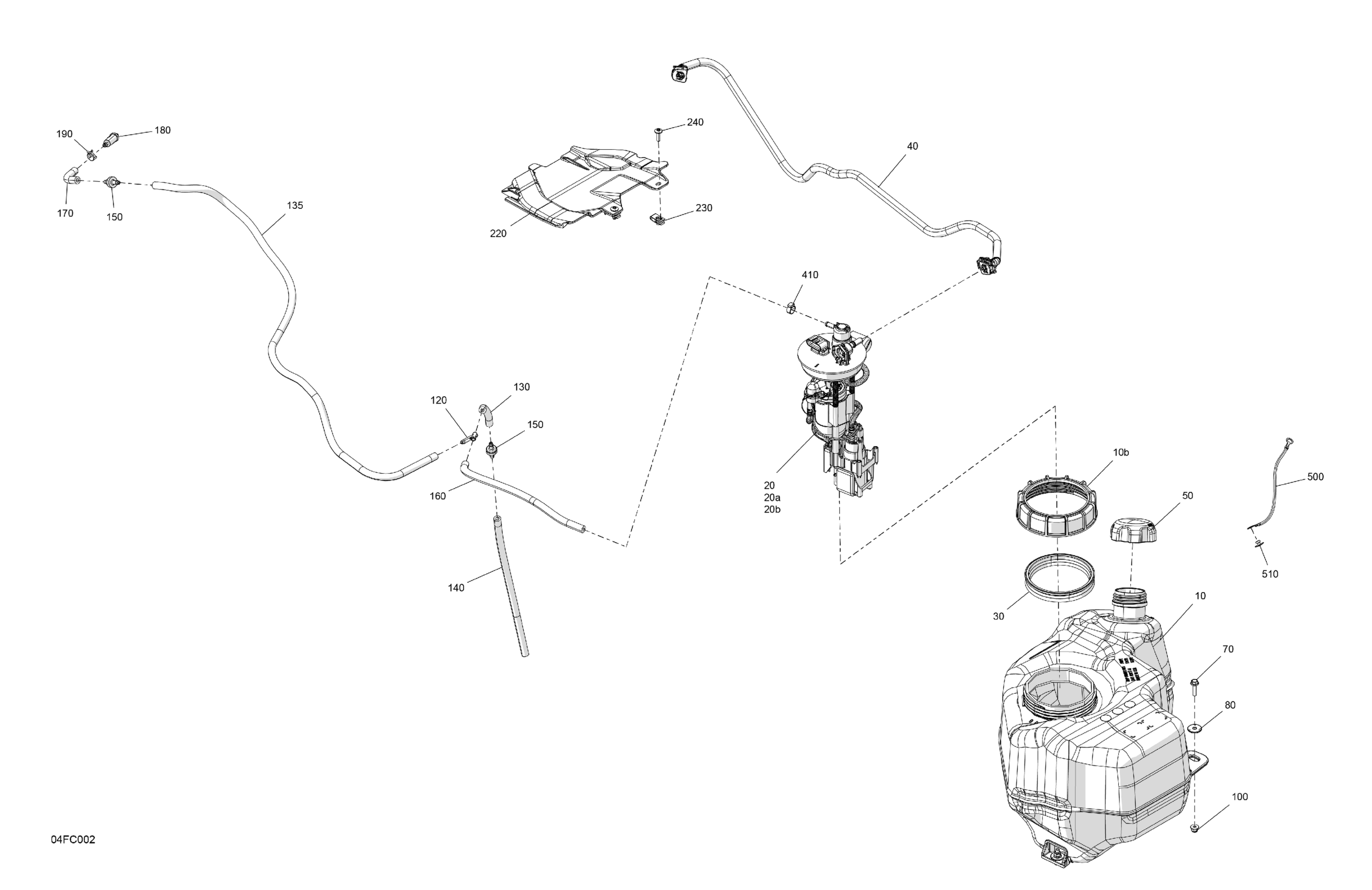

Can-Am Outlander MAX DPS 500 - 2023 Engine - Fuel Diagram

Fuel Tank | Includes 10 to 10b

Special Nut M130

Fuel Pump | Includes 20 to 20b

Fuel Pre-Filter

Fuel Level Sensor This part replaces 709001391.

Gasket

Fuel Tank Hose

Fuel Cap

Hex. Flange Screw M6 X 25

Shouldered Bushing

Hex. Flange Elastic Nut M6

Y-Fitting

Hose 6.35MM ID

Hose 6.35MM ID

Hose 6.35MM ID

Check Valve

Hose 6.35MM ID

Hose 6.35MM ID

Filter

Spring Clamp

Panel

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Oetiker Clamp

Ground Wire

Black, Pop Rivet 3/16 X ,425
