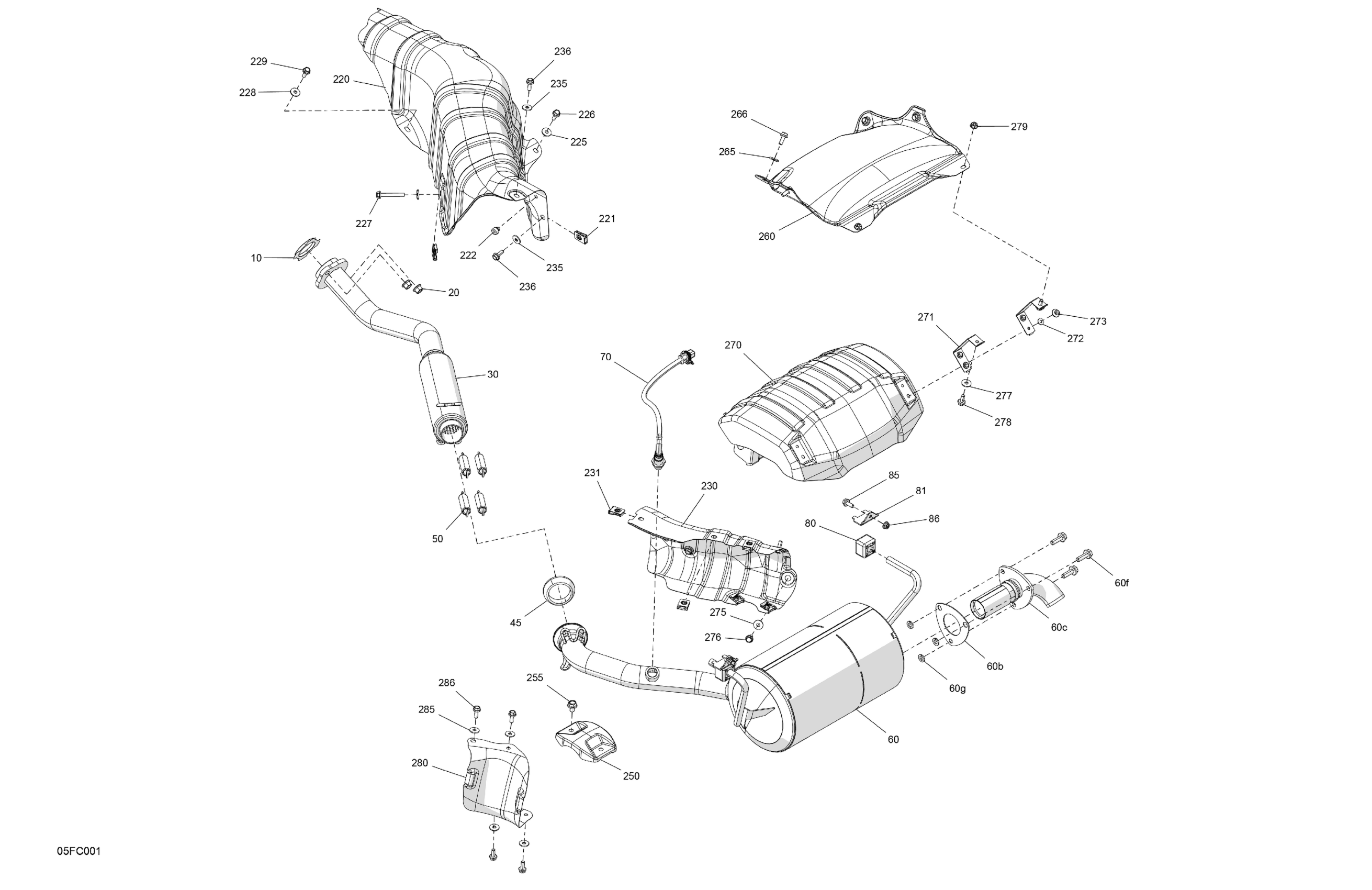

Can-Am Outlander MAX DPS 500 - CE, 2023 Engine - Exhaust Diagram

#

Description
Price

10

Exhaust Gasket

707602697

$5.98

20

Hex. Flange Nut

233081436

$2.00

30

Exhaust Pipe | Includes 30 to 30k

707602958

$269.99

45

Exhaust Gasket

707603475

$26.49

50

Spring

707601834

$6.35

60

Exhaust Muffler Ass'y | Includes 60 to 60g

707602965

$1,123.49

60b

Gasket

707602780

$12.63

60c

Tail Pipe | Includes 60c to 60c4

707602969

$87.99

60f

Hex. Flange Screw M8 X 25

207682544

$1.35

60g

Lock Washer 8 mm

234181401

$0.92

70

Oxygen Sensor

707600872

$144.99

80

Vibration Damper

707603000

$7.90

81

Muffler Support

707603200

$18.54

85

Hex Flange Screw M6 X 16

250000906

$5.29

86

Hex. Flange Nut M6

233161414

$2.11

220

Heat Shield

707603002

$36.99

221

Panel Nut M6 X 1.0

250100208

$1.46

222

Rubber Bumper

293830005

$8.09

225

Flat Washer 6 mm

234062410

$0.77

226

Hex Flange Screw M6 X 16

250000906

$5.29

227

Hex. Flange Screw M6 X 45

207664544

$1.46

228

Flat Washer 6 mm

234062410

$0.77

229

Hex Flange Screw M6 X 16

250000906

$5.29

230

Heat Shield

707603003

$36.99

231

Panel Nut M6 X 1.0

250100208

$1.46

235

Flat Washer 6 mm

234062410

$0.77

236

Hex Flange Screw M6 X 16

250000906

$5.29

250

Heat Shield

707603005

$13.49

255

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

260

Heat Shield

707603768

$60.99

265

Flat Washer 6 mm

234062410

$0.77

266

Hex Flange Screw M6 X 16

250000906

$5.29

270

Heat Shield

707603428

$47.99

271

Heat Shield Support

707603029

$3.29

272

Flat Washer

517225900

$0.18

273

Pop Rivet 3/16”

390910000

$0.57

275

Flat Washer 6 mm

234062410

$0.77

276

Hex Flange Screw M6 X 16

250000906

$5.29

277

Flat Washer 6 mm

234062410

$0.77

278

Hex Flange Screw M6 X 16

250000906

$5.29

279

Hex. Flange Nut M6

233161414

$2.11

280

Heat Shield

707603006

$13.49

285

Flat Washer 6 mm

234062410

$0.77

286

Hex Flange Screw M6 X 16

250000906

$5.29
