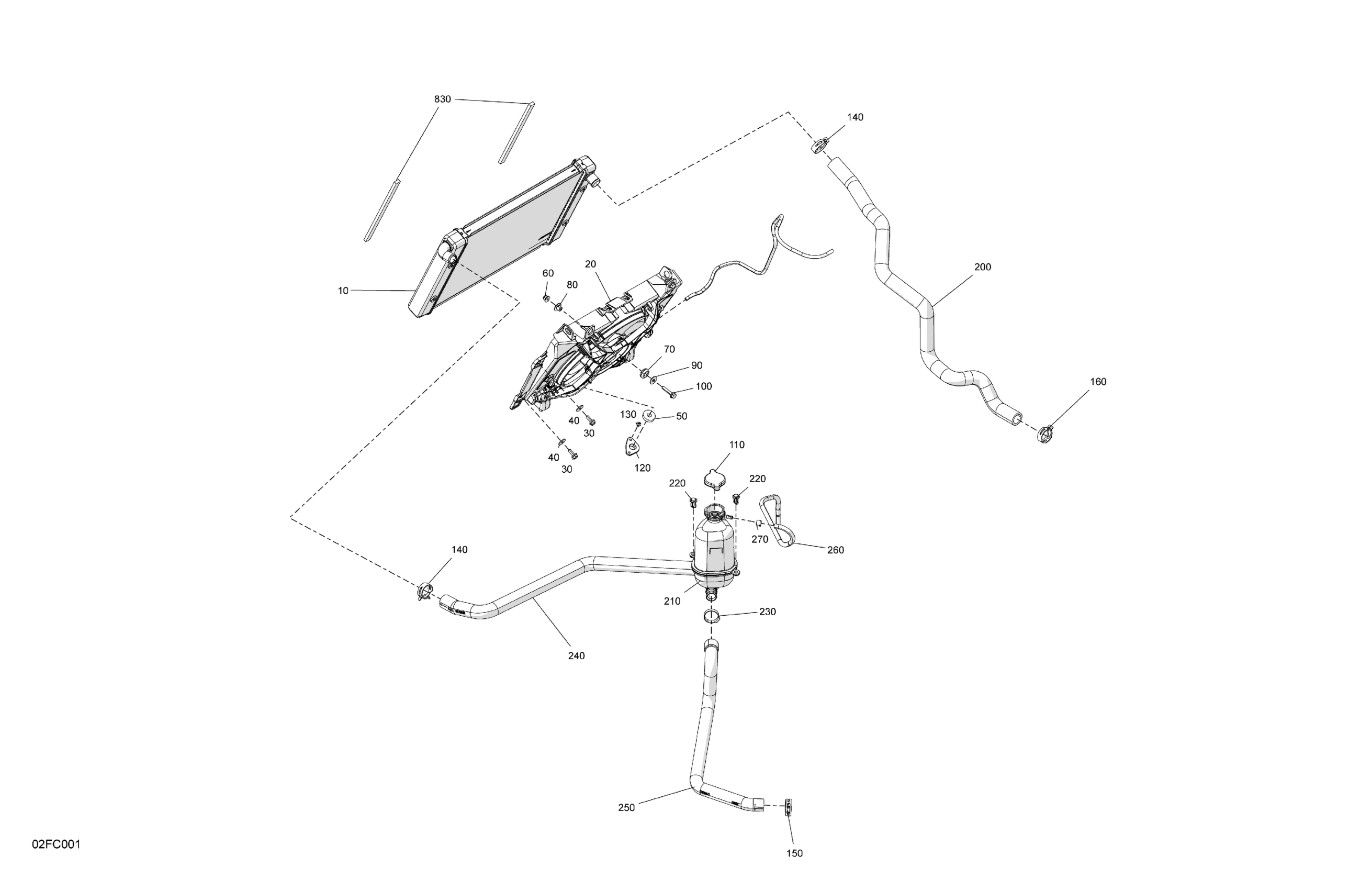

Can-Am Outlander 500 2X4 - 2023 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200762

$371.61

20

Cooling Fan

709200763

$231.31

30

Hex Flange Screw M6 X 16

250000906

$5.04

40

Flat Washer 6 mm

234062410

$0.73

50

Grommet

709200948

$8.13

60

Hex. Flange Elastic Nut M6

233261466

$1.91

70

Grommet

709000582

$4.25

80

Bushing

709001288

$7.48

90

Flat Washer

250200082

$0.40

100

Hex. Flange Screw M6 X 30

207663046

$1.63

110

Radiator Pressure Cap

709200207

$21.61

120

Radiator Support

709201149

$6.63

130

Pop Rivet 3/16"

390402200

$0.30

140

Norma Spring Clamp

293650108

$3.88

150

Norma Spring Clamp

293650109

$3.88

160

Norma Spring Clamp

293650108

$3.88

200

Coolant Hose

709200944

$32.06

210

Coolant Tank

709201060

$89.52

220

Tuflok Plastic Rivet

293150230

$1.39

230

Oetiker Clamp

293650141

$4.15

240

Coolant Hose

709200936

$32.06

250

Coolant Hose

709200942

$29.82

260

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

270

Spring Clamp

414554800

$0.81

830

Seal 3000MM Long

219704386

$26.09
