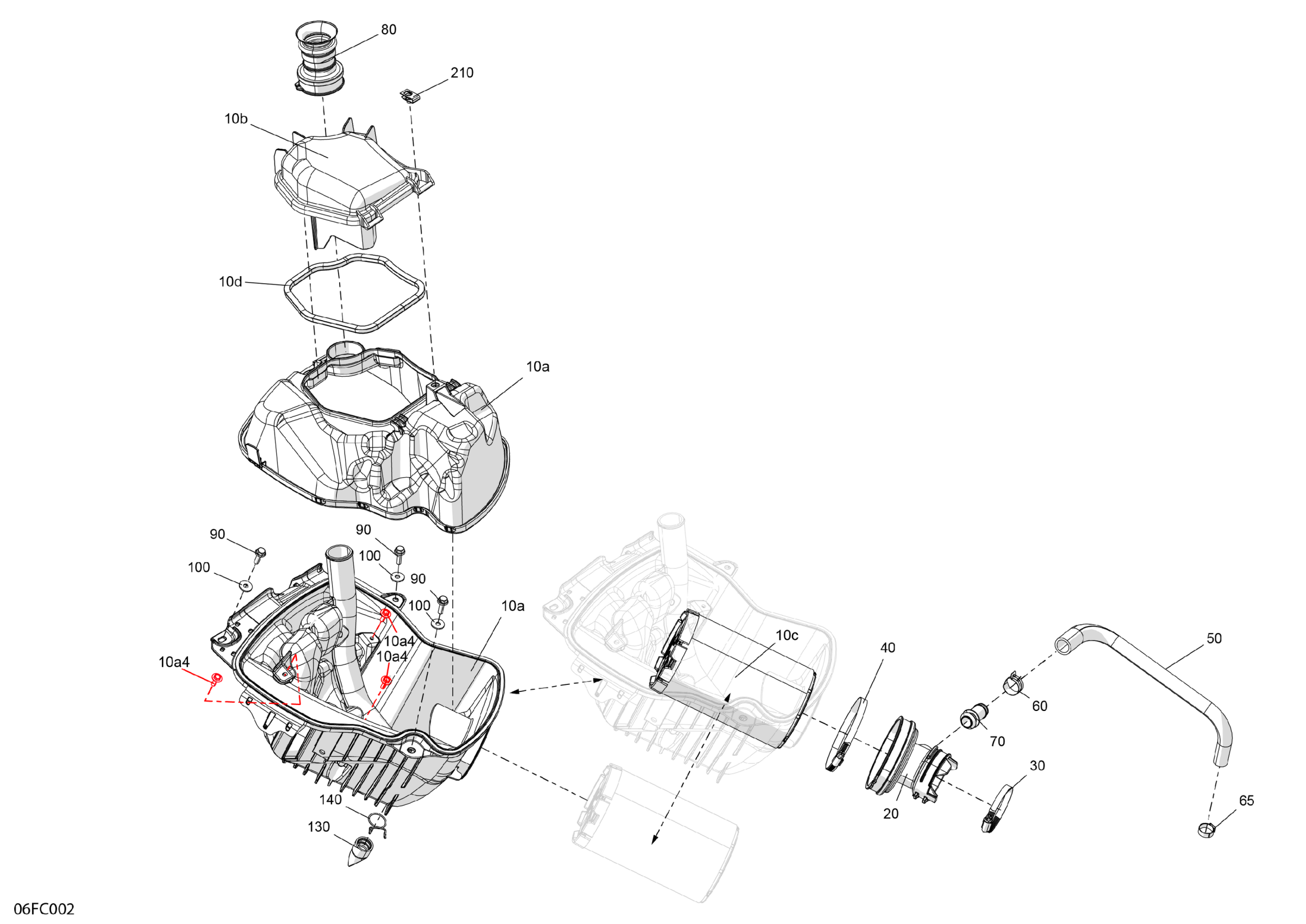

Can-Am Outlander PRO XU HD5 - 2023 Engine - Air Intake Diagram

Description

Price

10a

Intake Silencer | Includes 10a to 10a4

707801052

$184.99

10a4

Screw PT Type K-50 X 16

250000959

$2.11

10b

Intake Silencer Cover

715009565

$29.99

10c

Air Filter

707800846

$46.99

10d

Neoprene Seal

293250513

$19.99

Intake Adapter | CARB NORM MODEL

707800981

$19.99

Norma Clamp

293650091

$11.12

Norma Gear Clamp

514052983

$15.89

Crankcase Hose

707800944

$25.99

Norma Spring Clamp

293650213

$3.17

Oetiker Clamp | Europe

293650030

$5.19

Breather Valve

273000234

$14.49

Intake Tip

707800910

$22.99

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

100

Flat Washer 6 mm

234062410

$0.77

130

Drain Tube

707800404

$2.89

140

Spring Clamp

707801043

$13.99

210

Panel Nut M6 X 1.0

250100198

$2.11
