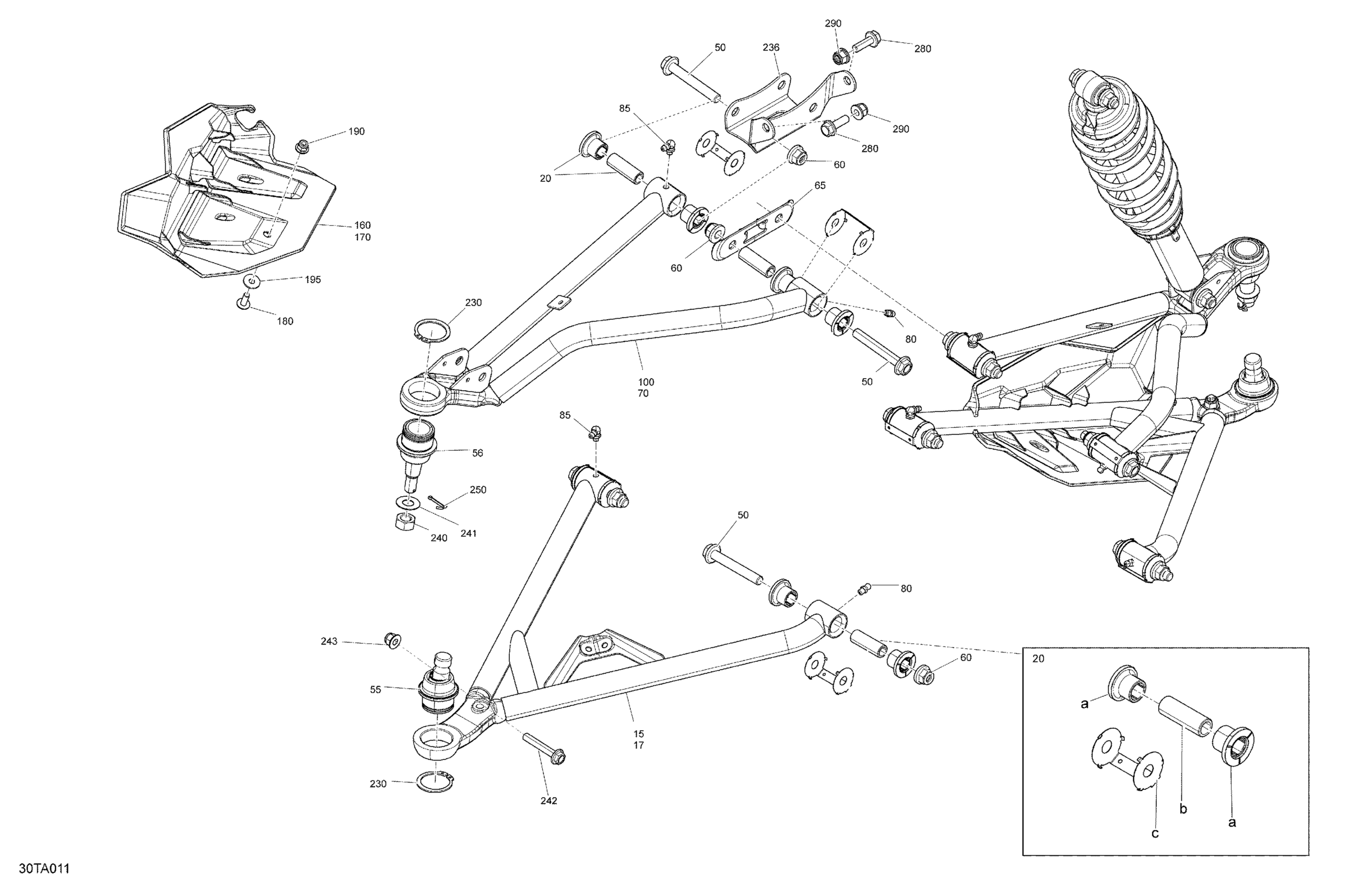

Can-Am Outlander 570 EFI - XMR - 2021 Suspension - Front Diagram

#

Description
Price

15

LH Lower Suspension Arm

706204639

$158.99

17

Black, RH Lower Arm

706202870

$158.99

20

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

20a

Not Available As Spare Part - Friction Washer

Unavailable

20b

Not Available As Spare Part - Friction Washer

Unavailable

20c

Not Available As Spare Part - Friction Washer

Unavailable

50

Hex. Flange Screw M10 X 70

207607046

$2.96

55

Ball Joint

706202045

$35.99

56

Ball Joint

706202044

$35.99

60

Hex. Flange Elastic Nut M10

233201436

$2.11

65

Front Suspension Cross Plate

706200998

$5.09

70

RH Upper Suspension Arm

706204642

$158.99

80

Grease Fitting

408200700

$3.49

85

Grease Fitting 90°

293550056

$1.15

100

LH Upper Suspension Arm

706204641

$158.99

160

LH Joint Protector

706202808

$9.90

170

RH Joint Protector

706202809

$9.90

180

Torx Screw M6 X 16

250000755

$0.87

190

Hex. Flange Elastic Nut M6

233261494

$1.58

195

Stainless Steel Flat Washer

234062670

$2.11

230

Circlip

293370035

$2.64

236

Upper Front Holder

705203247

$15.99

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

242

Hex. Flange Screw M10 X 60

207606044

$3.38

243

Hex. Flange Elastic Nut M10

233201434

$2.09

250

Cotter Pin

211400017

$0.33

280

Hex. Flange Screw M8 X 25

207682534

$2.11

290

Hex. Flange Elastic Nut M8

233281414

$1.47
