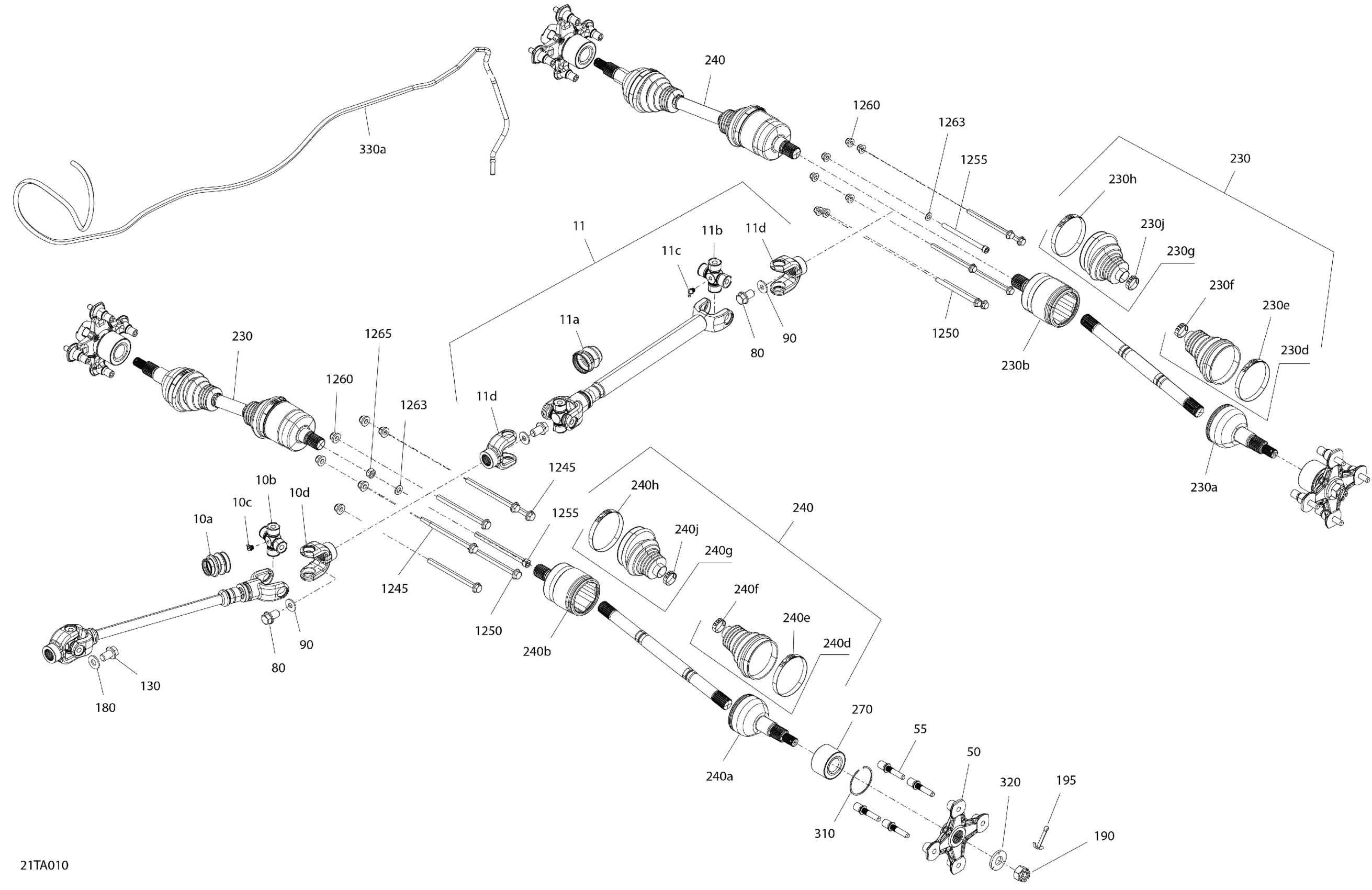

Can-Am Outlander MAX 6X6 - 450 EFI - DPS - 2021 Drive - Rear Section - Common Parts Diagram

#

Description
Price

10a

Rubber Boot

715900118

$13.83

10b

Universal Joint Ass'y | T3

703500846

$78.43

10c

Grease Fitting | T3

715900295

$4.62

10d

Yoke | T3

715900500

$23.05

11

Shaft Ass'y Kit | Includes 11 to 11f

703501135

$396.89

11a

Rubber Boot

715900118

$13.83

11b

Universal Joint

715900326

$69.20

11c

Grease Fitting | T3

715900295

$4.62

11d

Yoke | T3

715900500

$23.05

50

Wheel Hub | Built Dec 21 2020 And Up

705503050

$101.51

55

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

90

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Conical Spring Washer M12

250200005

$2.65

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH Half Shaft Ass'y

705501897

$232.74

230a

CV Joint

705401344

$253.82

230b

Plunging Joint

715900304

$115.35

230c

Circlip

705501781

$5.38

230d

Boot Kit, Wheel Side

705401345

$41.51

230e

Oetiker Clamp

715900282

$4.39

230f

Oetiker Clamp, Small

715900283

$4.39

230g

Boot Kit, Differential Side

705401346

$41.51

230h

Oetiker Clamp, Large

715900284

$4.39

230j

Oetiker Clamp, Small

715900261

$4.39

240

LH Half Shaft Ass'y

705501898

$232.74

240a

CV Joint

705401344

$253.82

240b

Plunging Joint

715900304

$115.35

240c

Circlip

705501781

$5.38

240d

Boot Kit, Wheel Side

705401345

$41.51

240e

Oetiker Clamp

715900282

$4.39

240f

Oetiker Clamp, Small

715900283

$4.39

240g

Boot Kit, Differential Side

705401346

$41.51

240h

Oetiker Clamp, Large

715900284

$4.39

240j

Oetiker Clamp, Small

715900261

$4.39

270

Ball Bearing

293350150

$51.93

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28

330a

Polyurethane Hose

293830193

Unavailable

1245

Hex. Flange Screw M10x145

705502741

$7.00

1250

Hex. Flange Screw M10 X 135

250001041

$4.46

1255

Screw Socket HD M10 X 140

250001094

Unavailable

1260

Hex. Flange Elastic Nut M10

233201436

$1.74

1263

WASHER M10 - Call your local BRP dealership

20005

Unavailable

1265

Elastic Stop Nut M10

232500416

$1.56
