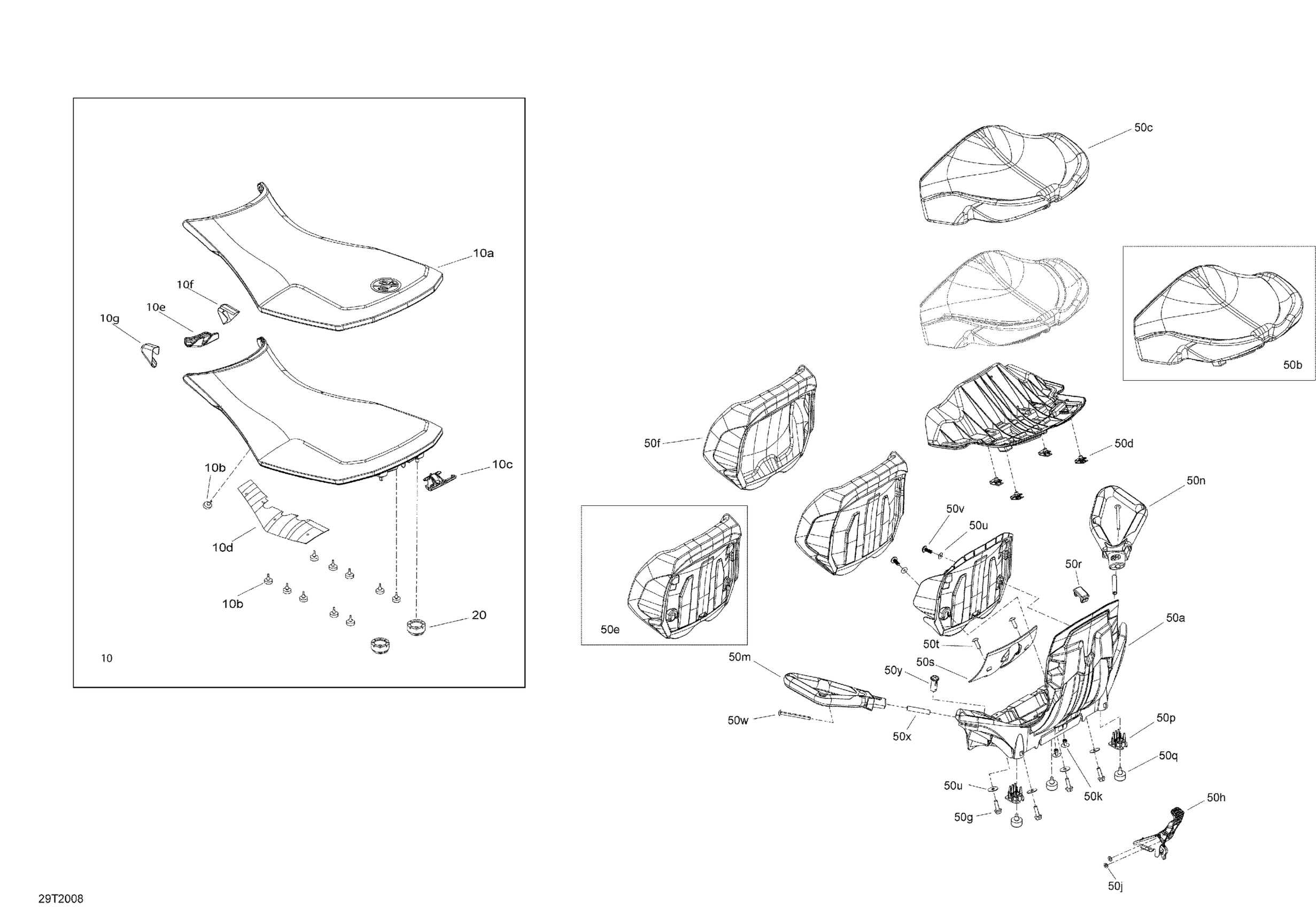

Can-Am Outlander T MAX 650 EFI - PRO+_XT_XTP - T Regulation, 2020 Seat Diagram

#

Description
Price

10

Seat Ass'y | Package PRO

708002493

$439.99

10a

Seat Cover | OUT-MAX Black

708001972

$179.99

10b

Rubber Stopper

708000759

$4.19

10c

Latch

708000909

$6.29

10d

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

10

Seat Ass'y | Package PRO

708002493

$439.99

10a

Seat Cover | OUT-MAX Black

708001972

$179.99

10b

Rubber Stopper

708000759

$4.19

10c

Latch

708000909

$6.29

10d

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

10e

Center Seat Corner | Model Pro

708002077

$12.99

10f

RH Seat Corner | Model Pro

269001669

$13.99

10g

LH Seat Corner | Model Pro

269001670

$13.99

20

Seat Stopper

708003609

$10.49

50a

Seat Base

708002574

$249.99

50b

Seat | Model-OUT-MAX XTP

708002086

$234.99

50c

Passenger Seat Cover | Model-OUT-MAX XTP

708001581

$150.49

50d

Panel Nut M6 X 1.0

250100198

$2.11

50e

Backrest | Model-OUT-MAX XTP

708002081

$519.99

50f

Back Rest Cover

708001847

$123.49

50g

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

50h

Latch

708001532

$67.99

50j

Flat Washer M5

234051410

$0.53

50k

Pop Rivet 3/16”

293150108

$1.19

50m

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$66.49

50n

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$66.49

50p

Seat Support

708001483

$2.99

50q

Rubber Stopper

708000758

$12.99

50r

Insert

708001511

$4.29

50s

Cap

708001512

$13.99

50t

Torx Truss Screw K40 X 12

250000577

$2.11

50u

Flat Washer

224060201

$1.26

50v

Oval Head Torx Screw K60 X 16

250000546

$2.11

50w

Torx Truss M8 X 90

250000806

$7.51

50x

Sleeve

705009248

$14.99

50y

Pilot Lamp Cap

710003910

$4.29

50a

Seat Base

708002574

$249.99

50b

Seat | Model-OUT-MAX XTP

708002086

$234.99

50c

Passenger Seat Cover | Model-OUT-MAX XTP

708001581

$150.49

50d

Panel Nut M6 X 1.0

250100198

$2.11

50e

Backrest | Model-OUT-MAX XTP

708002081

$519.99

50f

Back Rest Cover

708001847

$123.49

50g

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

50h

Latch

708001532

$67.99

50j

Flat Washer M5

234051410

$0.53

50k

Pop Rivet 3/16”

293150108

$1.19

50m

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$66.49

50n

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$66.49

50p

Seat Support

708001483

$2.99

50q

Rubber Stopper

708000758

$12.99

50r

Insert

708001511

$4.29

50s

Cap

708001512

$13.99

50t

Torx Truss Screw K40 X 12

250000577

$2.11

50u

Flat Washer

224060201

$1.26

50v

Oval Head Torx Screw K60 X 16

250000546

$2.11

50w

Torx Truss M8 X 90

250000806

$7.51

50x

Sleeve

705009248

$14.99

50y

Pilot Lamp Cap

710003910

$4.29
