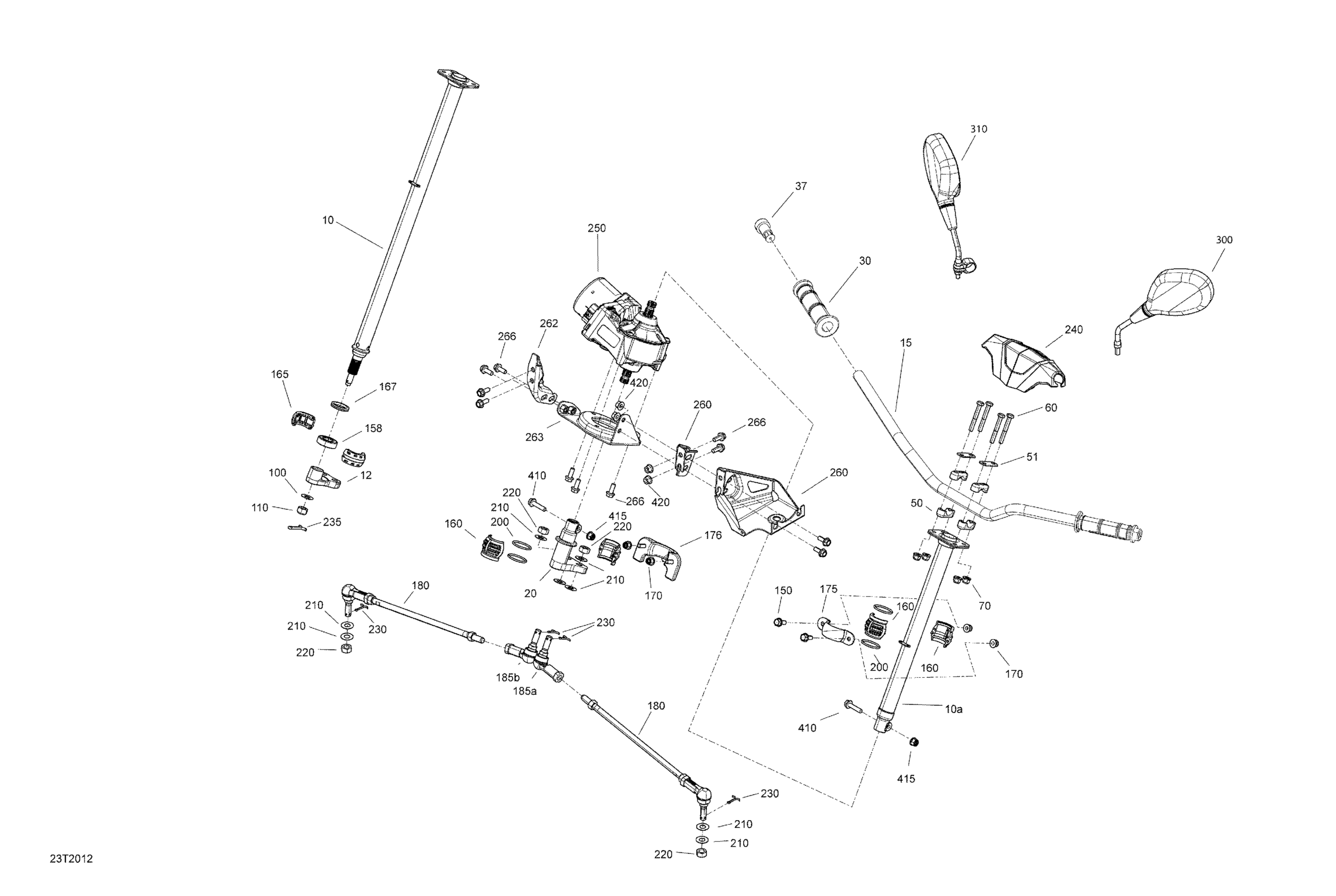

Can-Am 004 - Outlander T MAX 450 EFI - DPS - T Regulation, 2020 07- Steering Diagram

#

Description
Price

10

Black, Upper Main Tube | Package-STD

709401545

Unavailable

10a

Main Tube Kit | Model With DPS

703501108

Unavailable

12

Pitman Arm | Package-STD

709401542

Unavailable

15

Black, Handle Bar

709401240

Unavailable

20

Pitman Arm | Model With DPS Except XMR

703501160

Unavailable

30

Handle Grip

709400493

Unavailable

37

End Piece

709400449

Unavailable

50

Steering Support

709401799

Unavailable

51

Stiffner

709400509

Unavailable

60

Hex. Screw M8 X 60

207086046

Unavailable

70

Hex. Elastic Flange Nut M8

233281416

Unavailable

100

Hardened Washer

706200281

Unavailable

110

Hex. Flange Elastic Nut M12

250000047

Unavailable

150

Hex. Flange Screw M8 X 20

207682044

Unavailable

155

Hex. Flange Screw M8 X 25

207682534

Unavailable

158

Ball Bearing | Package-STD

503190396

Unavailable

160

Spherical Half Bushing

709400783

Unavailable

165

Spherical Half Bushing | Package-STD

709401370

Unavailable

167

Seal

293250177

Unavailable

170

Hex. Flange Elastic Nut M8

233281414

Unavailable

175

Upper Column Attachment

709400827

Unavailable

176

Column Attachment

709401428

Unavailable

180

Tie Rod Ass`y | Includes 15 to 17

703501038

Unavailable

185a

LH Ball Joint

709402303

Unavailable

185b

RH Ball Joint

709402302

Unavailable

200

O-Ring

293300068

Unavailable

210

Hardened Washer

706200281

Unavailable

220

Nut M12

250100099

Unavailable

230

Cotter Pin

211400013

Unavailable

235

Cotter Pin

250400034

Unavailable

240

Cover

709400939

Unavailable

250

Power Steering Ass'y | Model With DPS

709403187

Unavailable

260

Power Steering Module Bracket

709402192

Unavailable

260

LH Power Steering Bracket | Model With DPS

709402184

Unavailable

262

RH Bracket | Model With DPS

709402185

Unavailable

263

Power Steering Support | Model With DPS

709401743

Unavailable

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

300

LH Mirror | Europe

709400406

Unavailable

310

RH Mirror | Europe

709400407

Unavailable

410

Hex. Flange Screw M8 X 35

250000986

Unavailable

415

Hex. Elastic Flange Nut M8

233281416

Unavailable

420

Hex. Flange Nut M8

233081416

Unavailable
