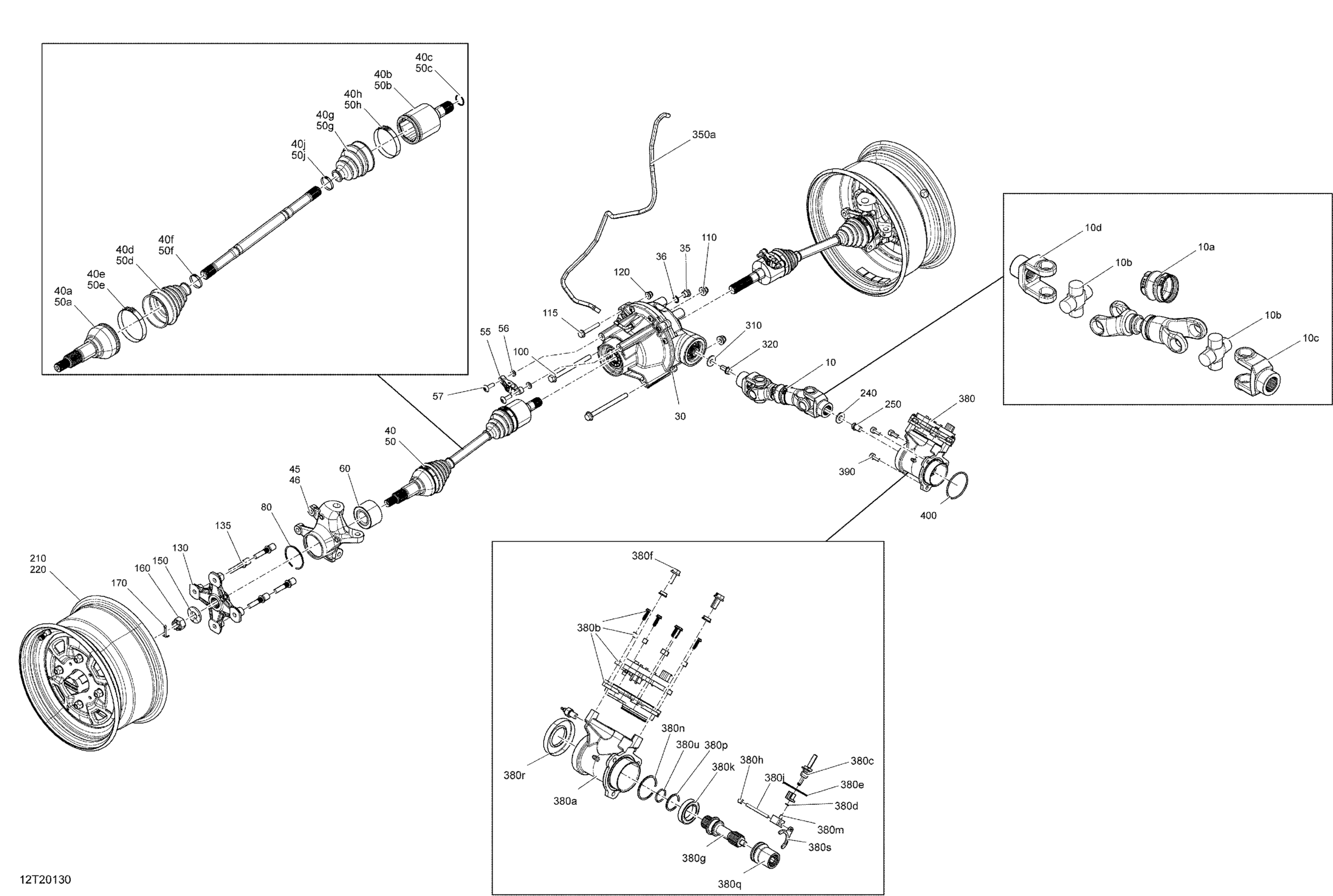

Can-Am Outlander T MAX 450 EFI - DPS - T Regulation, 2020 Front Drive - Common Parts Diagram

#

Description
Price

10

Front Drive Axle

705403293

$179.99

10a

Rubber Boot

715900118

$14.30

10b

U-Joint Cross Kit | Engine 450

715900435

$78.49

10c

Fixed Yoke Joint

715900497

$59.49

10d

Yoke Joint

715900498

$24.99

30

Front Differential | Includes 30 to 30y

705402020

$929.99

35

Fill Level Plug | 4X4

705500504

$10.01

36

Copper Washer | 4X4

705500506

$0.45

40

RH Homocinetic Joint | Includes 40 to 40f2

705402021

$243.99

40a

CV Joint

705401344

$259.49

40b

RH Plunging Joint

715900602

$110.99

40c

Circlip Joint | Not shown

705401349

$6.50

40d

Boot Kit, Wheel Side

705401345

$42.49

40e

Oetiker Clamp

715900282

$5.29

40f

Oetiker Clamp, Small

715900283

$5.29

40g

Boot Kit, Differential Side

705401346

$42.49

40h

Oetiker Clamp, Large

715900284

$5.29

40j

Oetiker Clamp, Small

715900261

$5.29

45

LH Knuckle

705403307

$179.99

46

RH Knuckle

705403308

$179.99

50

LH Homocinetic Joint | Includes 50 to 50f2

705402022

$243.99

50a

CV Joint

705401344

$259.49

50b

LH Plunging Joint

715900603

$98.49

50c

Circlip Joint | Not shown

705401349

$6.50

50d

Boot Kit, Wheel Side

705401345

$42.49

50e

Oetiker Clamp

715900282

$5.29

50f

Oetiker Clamp, Small

715900283

$5.29

50g

Boot Kit, Differential Side

705401346

$42.49

50h

Oetiker Clamp, Large

715900284

$5.29

50j

Oetiker Clamp, Small

715900261

$5.29

55

Sensor Support

705402088

$2.54

56

Flat Washer 8 mm

234081410

$0.83

57

Torx Truss M8 X 25

250000874

$2.11

60

Ball Bearing

293350150

$52.99

80

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 125

230602546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

115

Hex. Flange Screw M8 X 55

207685544

$5.39

120

Hex. Flange Elastic Nut M8

233281414

$1.47

130

Wheel Hub Ass'y

705501716

$105.99

135

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

150

Conical Spring Washer M18

250200171

$7.65

160

Hex. Flange Castellated Nut M18

232291413

$7.98

170

Cotter Pin

250400071

$2.11

210

Not Available As Spare Part - Friction Washer

Unavailable

220

Not Available As Spare Part - Friction Washer

Unavailable

240

Flat Washer M12

250200102

$2.11

250

Hex Flange Screw M12 X 16

250001039

$2.11

310

Flat Washer M10 | 4X4

250200014

$1.49

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

380

Not Available As Spare Part - Friction Washer

Unavailable

380a

Machined Housing

705402360

$164.99

380b

Actuator Ass'y

705402090

$429.99

380c

Fork | 4X4

705400274

$18.99

380d

Circlip | 4X4

293370042

$3.17

380e

O-Ring

293300117

$4.44

380f

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.28

380g

Idler Shaft Gear

705401509

$105.49

380h

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

380j

Dowell Pin | 4X4

250400025

$7.73

380k

Ball Bearing | 4X4

705400249

$25.99

380m

Slider | 4X4

705402139

$46.99

380n

Circlip | 4X4

293370029

$5.19

380p

Circlip | 4X4

293370030

$2.89

380q

Coupling Sleeve | 4X4

705400389

$31.99

380r

Oil Seal

293250348

$20.49

380s

Shifter Lever Plate | 4X4

705401553

$20.99

380u

O-Ring

293300179

$2.51

390

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

400

O-Ring

293300091

$7.51
