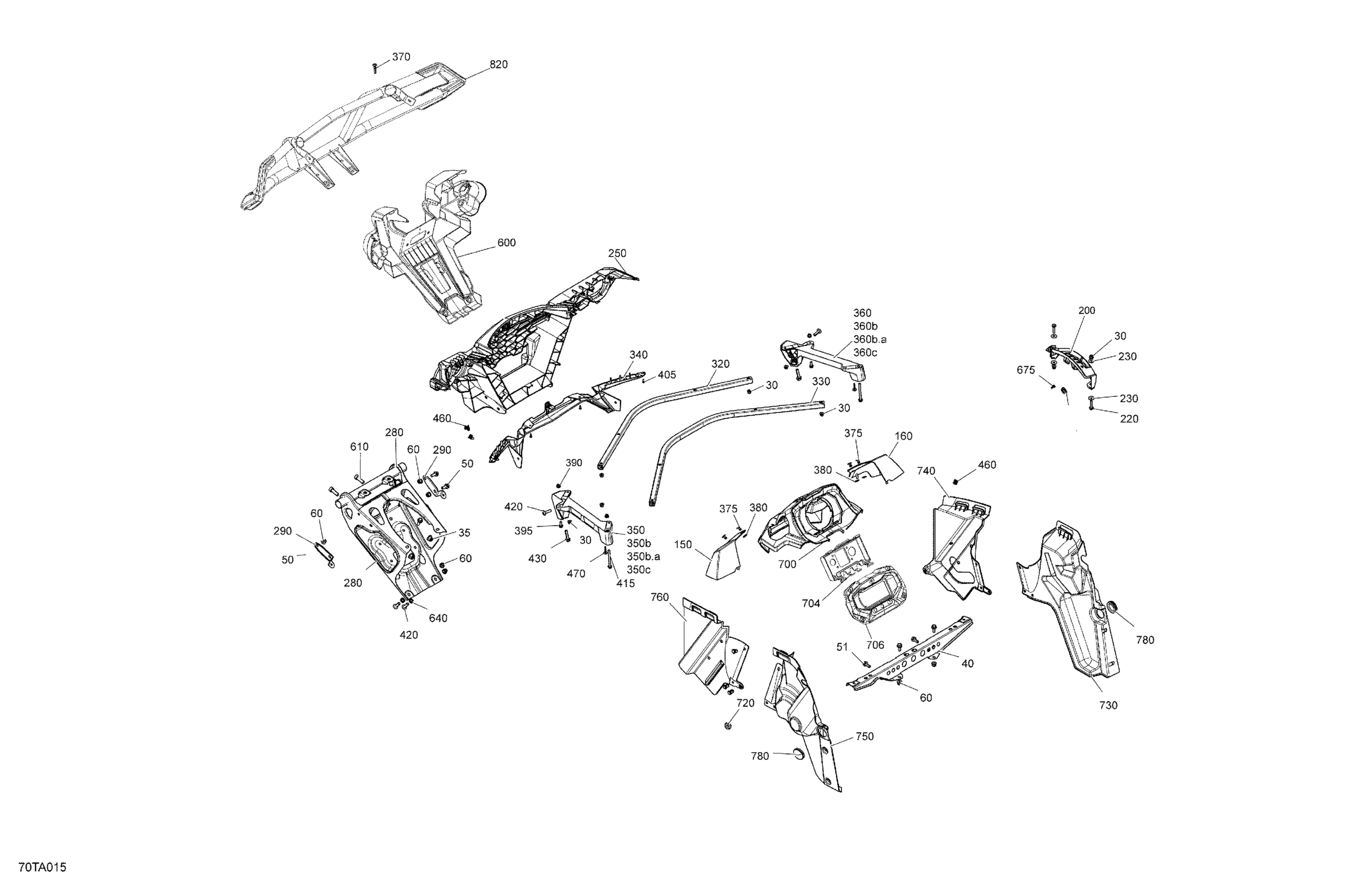

Can-Am Outlander T MAX 1000 EFI - DPS_XU+ - T Regulation, 2021 Body - Front Section Diagram

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Elastic Nut M8

233281434

$1.74

Hex. Flange Elastic Nut M10

233201434

$1.63

Cargo Rack Center Support

705006812

$55.19

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Elastic Nut M8

233281434

$1.74

LH Air Deflector

705006134

$23.85

RH Air Deflector

705006135

$22.36

Shifter Gate Ass'y

715007676

$23.85

Shifter Gate Ass'y

715007677

$23.85

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Flat Washer

224061201

$1.11

Fascia

705012822

$108.18

Front Bumper Support

705016893

$314.90

Lower Fender Support

705004565

$6.19

Sectional Bent Tube

705016640

$34.30

Bent Sectional Tube

705016092

$38.03

Lugage Rack Moulding

705004523

$21.61

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$17.88

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

Hex. Elastic Nut M8 Brass

232581200

$1.29

Hex. Elastic Stop Nut M6

232561600

$0.92

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$17.88

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

Hex. Elastic Nut M8 Brass

232581200

$1.29

Hex. Elastic Stop Nut M6

232561600

$0.92

Black, Torx Screw M6 X 35

250000646

$0.78

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

Washer

517124300

$0.16

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Screw K40 X 10

241140060

$1.25

Hex. Flange Screw M6x70, Scotch Grip

207567044

$1.74

Torx Screw M8 X 30

250000886

$1.74

Hex. Flange Screw M8 X 35

207683544

$1.39

Edge Clip

517302785

$0.70

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

Front Guard Plate | Europe

705006300

$39.52

Hex. Screw M8 X 20

236282054

$1.40

Socket Screw M10 x 30 | XT

205003044

$2.61

Ring

705004497

$3.87

Phillips Screw K40 X 16

250000723

$0.81

Extruded Panel Nut M4 X 0.7

250100143

$6.77

Interior Gauge Support

705015548

$5.48

Gauge Trim

705015549

$20.12

Torx Head Screw M4 X 16

250000797

$1.63

Gauge Support

705013984

$17.88

Grommet

705003264

$3.43

RH Wheel Arch Protector

705013925

$16.39

RH Front Inner Fender

705011463

$14.13

LH Wheel Arch Protector

705013924

$16.39

LH Front Wheel Arch Protector

705017001

$14.13

Rubber Cover

293250242

$5.18

Deep Black, Bumber Kit

715004837

$212.32
