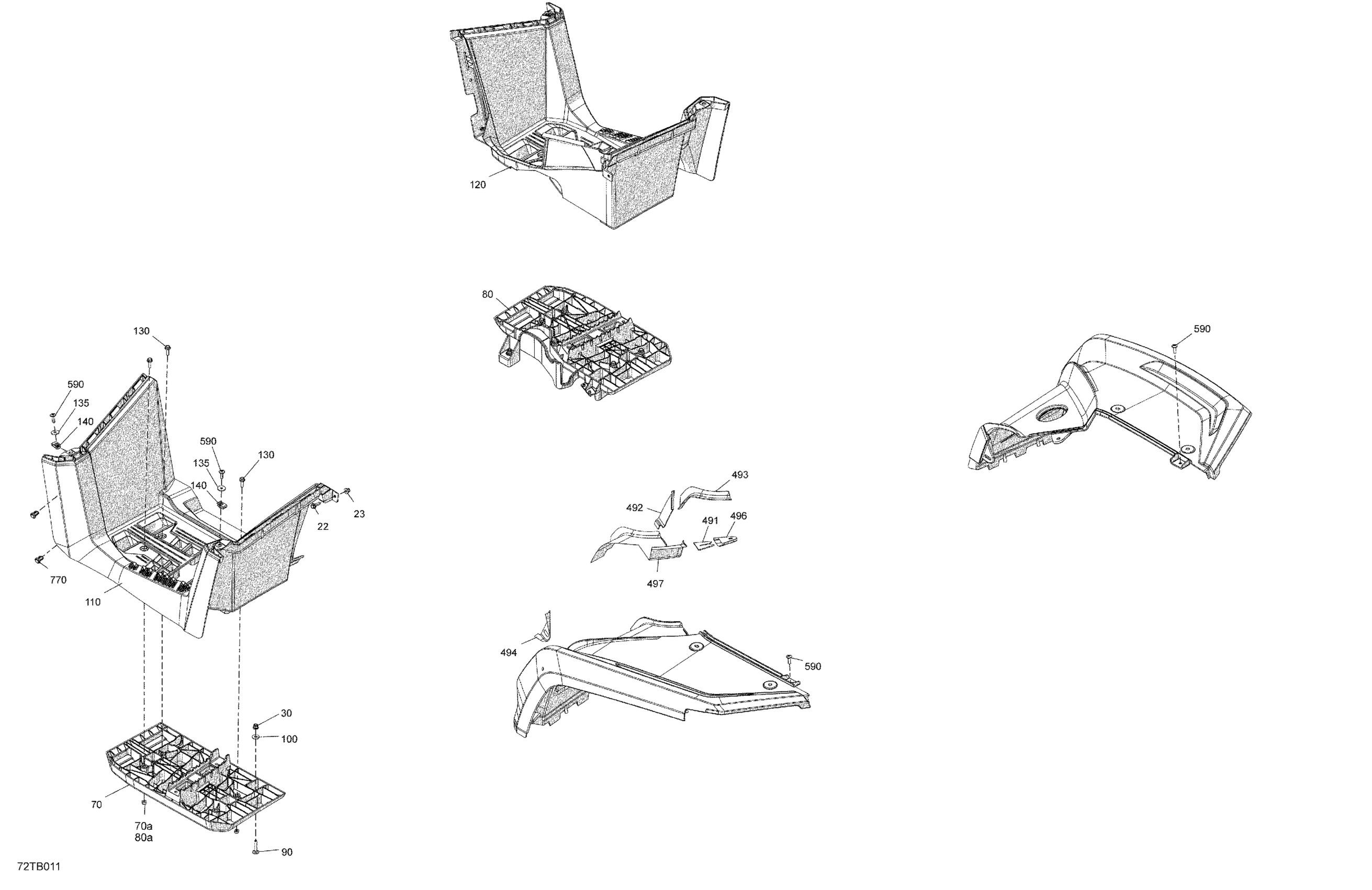

Can-Am Outlander T 6X6 - 1000 EFI - XT - T Regulation, 2022 Body - Rear Section Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662054

$0.96

Flange Elastic Nut M6

233261434

$4.15

Flange Elastic Nut M6

233261434

$4.15

LH Structural Footboard

705011540

$108.18

70a

Square Nut M6

232862412

$1.36

RH Structural Footboard

705011542

$95.49

80a

Square Nut M6

232862412

$1.36

Carriage Bolt M6 X 35

207763554

$1.96

100

Flat Washer 6 mm

234062410

$0.73

110

LH Step

705007040

$87.28

120

RH Step

705007039

$113.40

130

Hex. Flange Screw M6 X 20

207662054

$0.96

135

Flat Washer

224061201

$1.27

140

Panel Nut M6 X 1.0

250100198

$1.99

491

Heat Shield

707002456

$3.81

492

Heat Shield

707002457

$3.81

493

Heat Shield

707002458

$16.39

494

Heat Shield

707002459

$3.81

496

Heat Shield

707002461

$3.81

497

Heat Shield

707002462

$3.81

590

Torx Screw M6 X 20

250000722

$1.54

770

Tuflok Plastic Rivet

293150230

$1.39
