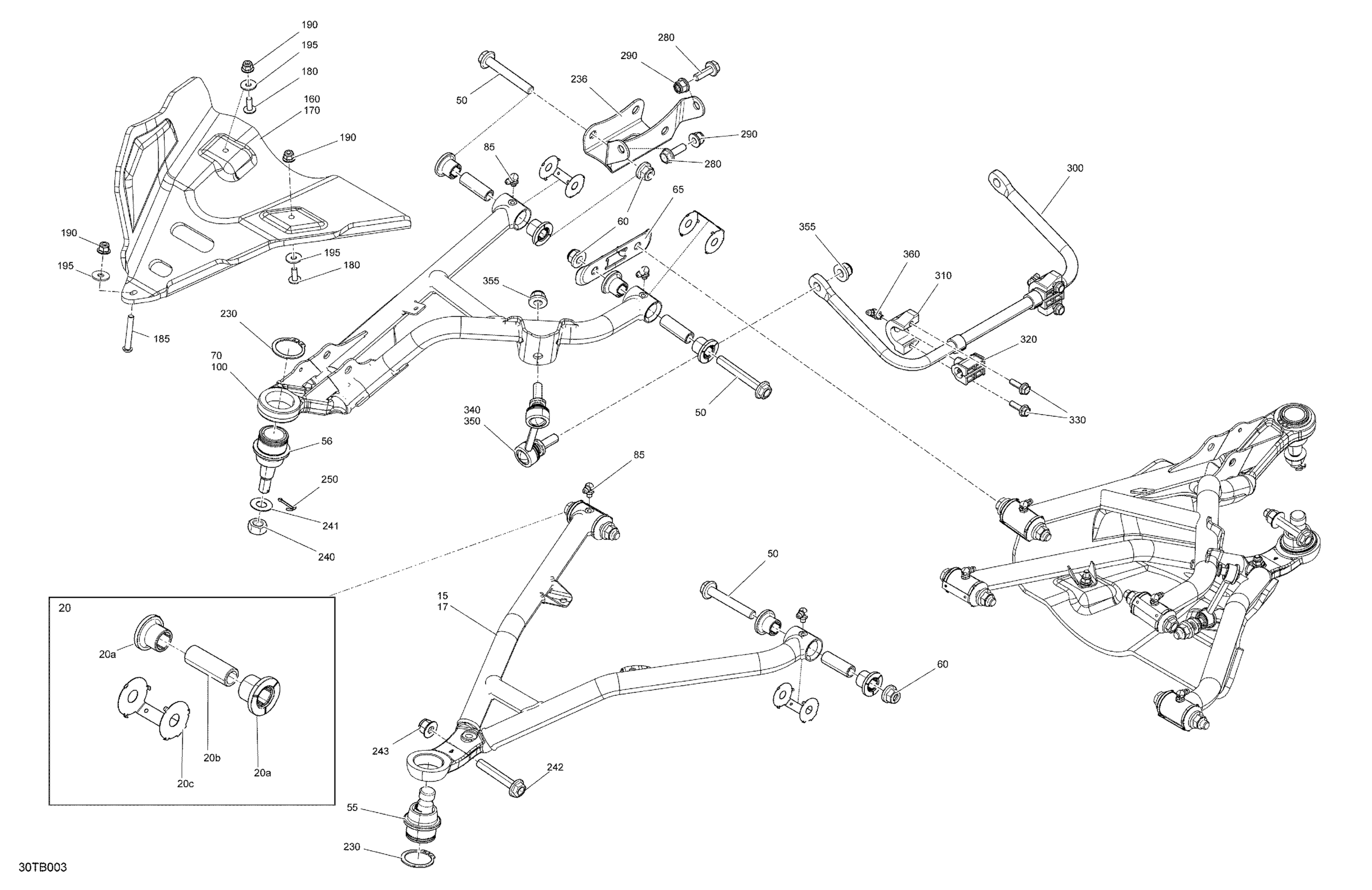

Can-Am Outlander 650 EFI - Mossy Oak Edition - 2022 Suspension - Front Components Diagram

#

Description
Price

15

LH Lower Suspension Arm

706204637

$158.99

17

RH Lower Suspension Arm

706204638

$158.99

20

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

20a

Not Available As Spare Part - Friction Washer

Unavailable

20b

Not Available As Spare Part - Friction Washer

Unavailable

20c

Not Available As Spare Part - Friction Washer

Unavailable

50

Hex. Flange Screw M10 X 70

207607046

$2.96

55

Ball Joint

706202045

$35.99

56

Ball Joint

706202044

$35.99

60

Hex. Flange Elastic Nut M10

233201436

$2.11

65

Front Suspension Cross Plate

706200998

$5.09

70

RH Upper Suspension Arm

706204572

$158.99

85

Grease Fitting 90°

293550056

$1.15

100

LH Upper Suspension Arm

706204571

$158.99

160

LH Front A-Arm Protector | Hunting Edition

715004822

$159.49

170

Not Available As Spare Part - Friction Washer

Unavailable

180

Torx Screw M6 X 25

250000758

$2.11

185

Screw-torx Button Head M6 X 40

235564054

$6.89

190

Hex. Flange Elastic Nut M6

233261494

$1.58

195

Stainless Steel Flat Washer

234062670

$2.11

230

Circlip

293370035

$2.64

236

Upper Front Holder

705203247

$15.99

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

242

Hex. Flange Screw M10 X 60

207606044

$3.38

243

Hex. Flange Elastic Nut M10

233201434

$2.09

250

Cotter Pin

211400017

$0.33

280

Hex. Flange Screw M8 X 25

207682544

$1.35

290

Hex. Flange Elastic Nut M8

233281414

$1.47

300

Sway Bar

706203715

$126.99

310

Clamp

706203929

$25.99

320

Stabilizer Bar Bushing

706204796

$12.65

330

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

340

LH Sway Bar Link

706203290

$72.99

350

RH Sway Bar Link

706203291

$72.99

355

Hex. Flange Elastic Nut M10

233201414

$1.58

360

Grease Fitting 90°

293550056

$1.15
