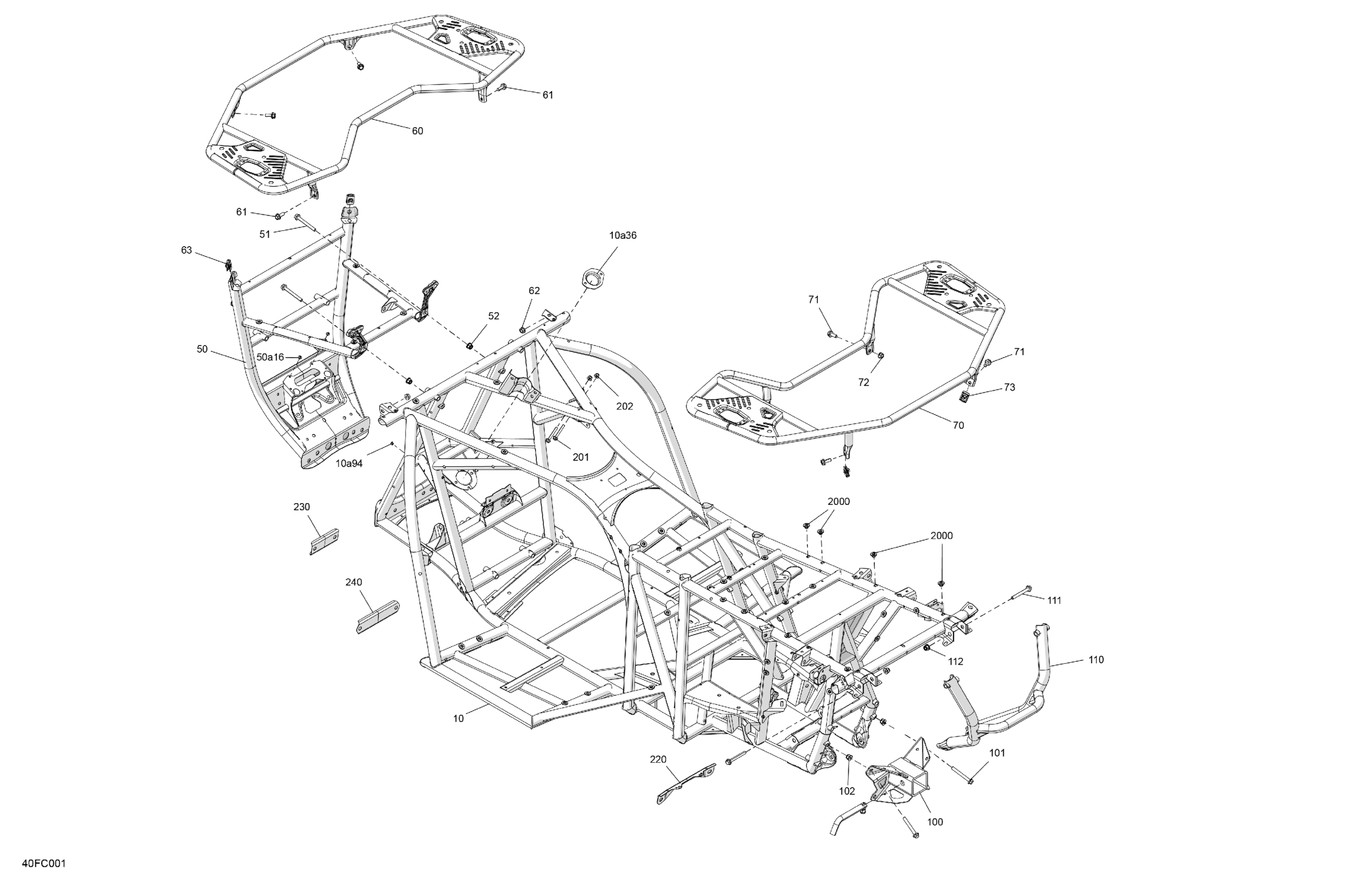

Can-Am Outlander MAX DPS 700 - CE, 2023 Frame - System Diagram

#

Description
Price

10

Chassis Ass'y | Includes 10 to 10a94 This part replaces 705211693.

715010299

$2.00

10a36

Lower Bearing Support

709402713

$43.99

10a94

Pop Rivet 3/16"

390402200

$0.35

50

Front Bumper | Includes 50 to 50a16

705208429

$264.99

50a16

Pop Rivet 3/16"

390402200

$0.35

51

Hex. Flange Screw M8 X 70

207687044

$7.41

52

Hex. Flange Elastic Nut M8

233281414

$1.47

60

Deep Black, Front Luggage Rack

705208148

$264.99

61

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

62

Hex. Flange Nut M8

233181414

$1.15

63

Panel Nut M8 X 1.25

250100236

$4.13

70

Deep Black, Rear Luggage Rack

705208247

$248.99

71

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

72

Hex. Flange Nut M8

233181414

$1.15

73

Panel Nut M8 X 1.25

250100236

$4.13

100

Trailer Hitch Kit

715009558

$122.99

101

Hex. Flange Screw, M8 X 65

207686544

$13.16

102

Hex. Flange Elastic Nut M8

233281414

$1.47

110

Rear Chassis Reinforcement Kit

715009552

$79.99

111

Hex. Flange Screw, M8 X 65

207686544

$13.16

112

Hex. Flange Elastic Nut M8

233281414

$1.47

201

Hex. Flange Screw M6 X 45

207664544

$1.46

202

Hex. Flange Elastic Nut M6

233261466

$2.00

220

Rear Suspension Arm Reinforcement

705209026

$5.29

230

Upper Front Suspension Arm Reinforcement

705209029

$5.29

240

Front Lower Suspension Arm Reinforcement

705211664

$5.49

2000

Threaded Insert

293450383

$2.61
