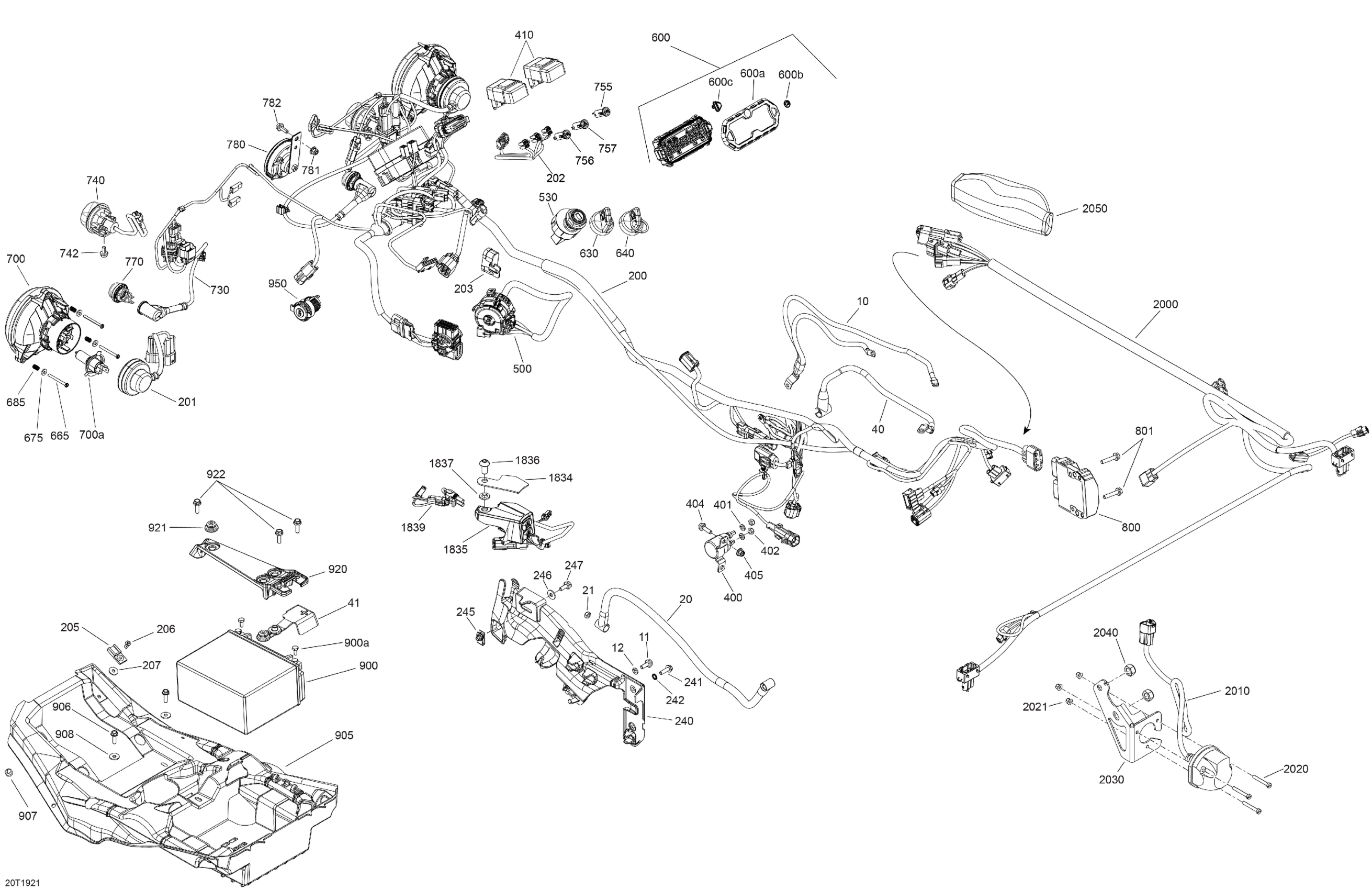

Can-Am Outlander MAX 6X6 - 450 EFI - T3, 2019 Electrical 6X6 - 450 EFI - T3 Diagram

#

Description
Price

10

Ground Cable

710004380

$17.88

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

12

Lock Washer Helical M6

234161601

$1.06

20

Positive Cable | Engine 450

710004381

$17.88

21

Elastic Stop Nut M6

232561414

$1.78

40

Positive Cable

710004376

$43.25

41

Battery Cable Cap

710006729

$6.72

200

No ABS Cable

710006170

$905.94

201

Light Cable

710005780

$19.37

202

Indicator Light Cable

710005840

$16.39

203

DPS Connector Cap | Not Shown

710005760

$14.34

205

Clip

270000141

$9.57

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

240

Cable Bracket

707001280

$11.81

241

Hex. Flange Screw M6 X 20

210262040

$2.00

242

External Serrated Lock Washer 6 mm

234461608

$1.06

245

Panel Nut M6 X 1.0

250100198

$1.99

246

Flat Washer 6 mm

234062410

$0.73

247

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

400

Starter Relay

710007777

$45.49

401

Lock Washer Helical M6

234161601

$1.06

402

Elastic Stop Nut M6

232561414

$1.78

404

Hex. Flange Screw M6 X 20

207662054

$0.96

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

410

Flasher Unit

710003239

$73.10

500

LH Multi Fonction Control

710006211

$154.45

530

Ignition Switch

710008400

$72.36

600

Speedometer

710006216

$305.19

600a

Trim Ring Ass'y

710001183

$17.88

600b

BRP Logo13 mm

704904615

$11.09

600c

Button

715900265

Unavailable

630

Grey, Electronic Key

710002183

$53.70

640

Black, Electronic Key

710000817

$53.70

665

Hex. Screw K40 X 45

250000718

$2.00

675

Flat Washer

517225900

$0.16

685

Spring

517168600

$6.70

700

Low Beam

710003900

$101.46

700a

Bulb, 12V 35/35W

710000871

$32.06

730

Position Light Harness

710005676

$12.61

740

Flasher | Europe

710002964

$34.30

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

755

Pilot Light Trailer Flasher

710005766

$7.64

756

Pilot Light Tail Lamp

710005767

$7.64

757

Pilot Lamp | Model-Europe

710003909

$20.12

770

Day Light | Europe

710001726

$32.81

780

Horn

710004791

$36.54

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

782

Hex. Flange Screw M6 X 70

207667044

$0.81

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

801

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

900a

Battery Bolt Kit

250000282

$3.39

905

Battery Support

710008370

$41.76

906

Hexagonal Head Screw

210262050

$2.00

907

Rubber Bumper

293830005

$6.12

908

Stainless Steel Flat Washer

234062670

$2.00

920

Retaining Plate

710009129

$7.09

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.96

950

DC Outlet

710001248

$35.79

1834

Top Plate

715004008

$19.37

1835

Multifonction Housing Ass'y

710004990

$138.78

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$8.67

1837

Washer

503192496

$0.73

1839

Cable

710004567

$12.60

2000

Rear Lighting Wiring Harness | Not Shown

710009472

$273.85

2010

Trailer Harness

710005846

$202.96

2020

Screw M5 X 35 | Not Shown

40233

Unavailable

2021

Hex. Flange Elastic Nut M5

233251414

$1.91

2030

Plug Fastening Plate

705204572

Unavailable

2040

Elastic Stop Nut M10

232500416

$1.79

2050

Sheath | Not Shown

710004193

$18.63
