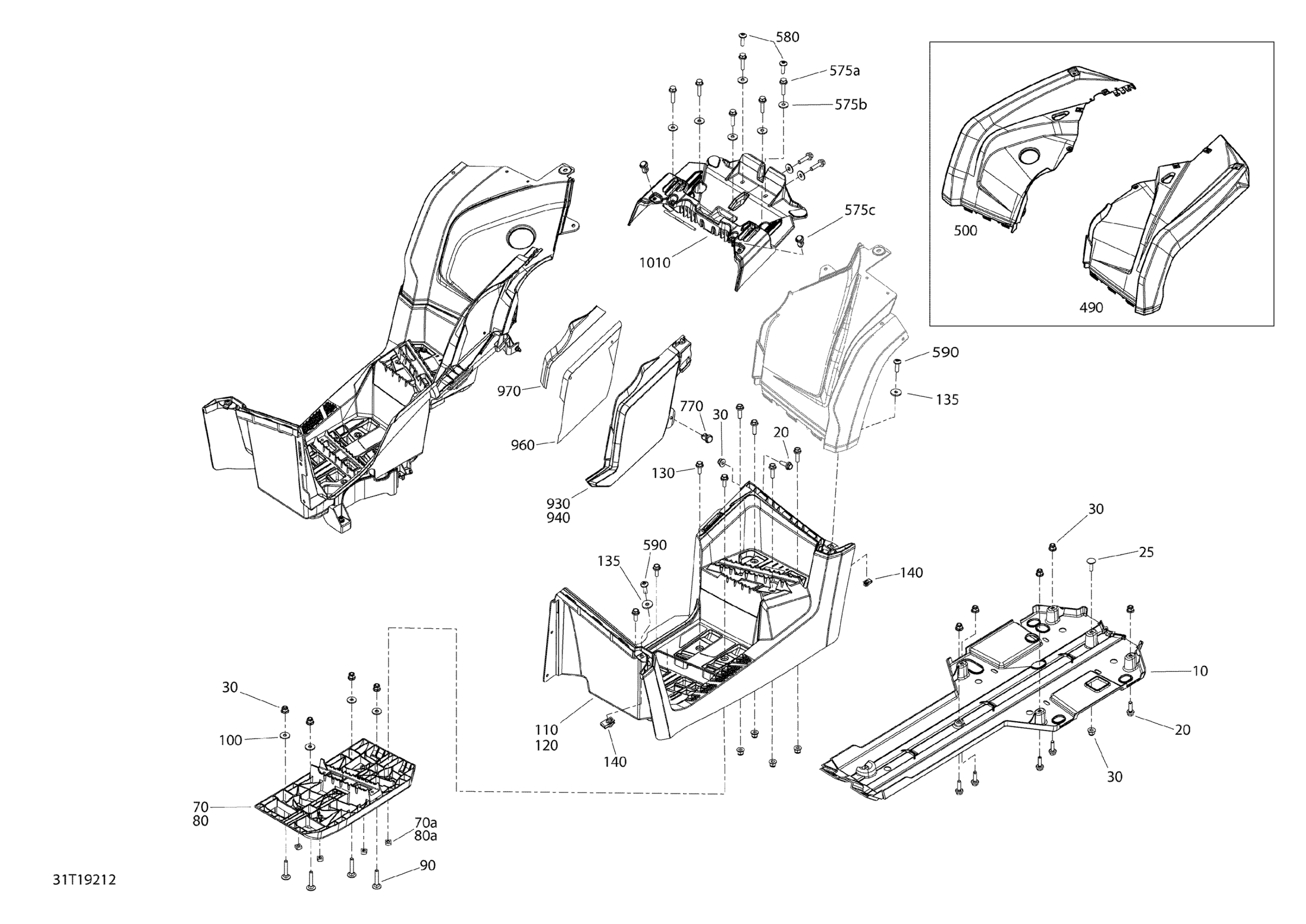

Can-Am Outlander MAX 6X6 - 450 EFI - T3, 2019 Body And Accessories 6X6 - 450 EFI - Squadron Green - Middle Diagram

Description

Price

Protective Plate Kit

715002374

$64.58

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Screw M6 X 20

207662054

$0.83

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

Flange Elastic Nut M6

233261434

$3.61

Flange Elastic Nut M6

233261434

$3.61

LH Structural Footboard

705011540

$115.35

70a

Square Nut M6

232862412

$1.18

RH Structural Footboard

705011542

$98.43

80a

Square Nut M6

232862412

$1.18

Carriage Bolt M6 X 35

207763554

$1.70

100

Flat Washer 6 mm

234062410

$0.64

110

LH Footrest Max

705003525

$124.58

120

RH Footrest Max | Engine 450 MAX Model

705007724

$96.89

130

Hex. Flange Screw M6 X 16

207661654

$1.74

135

Flat Washer

224061201

$1.11

140

Panel Nut M6 X 1.0

250100198

$1.73

575a

Hex Flange Screw M6 X 25

250000841

$6.15

575b

Stainless Steel Flat Washer

234062670

$1.74

575c

Tuflok Plastic Rivet

293150230

$1.21

490

Squadron Green Rear LH Fender

715006165

$128.43

500

Squadron Green Rear RH Fender

715006168

$128.43

580

Torx Truss Screw M6 X 25

250000807

$1.74

590

Torx Screw M6 X 20

250000722

$1.34

770

Tuflok Plastic Rivet

293150230

$1.21

930

LH Extension Panel

715001897

$27.66

940

RH Extension Panel

705004348

$27.66

960

Heat Shield

705006870

$5.52

970

Heat Shield

705006871

$5.52

1010

Seat Holder

705007948

$55.35
