Partiron

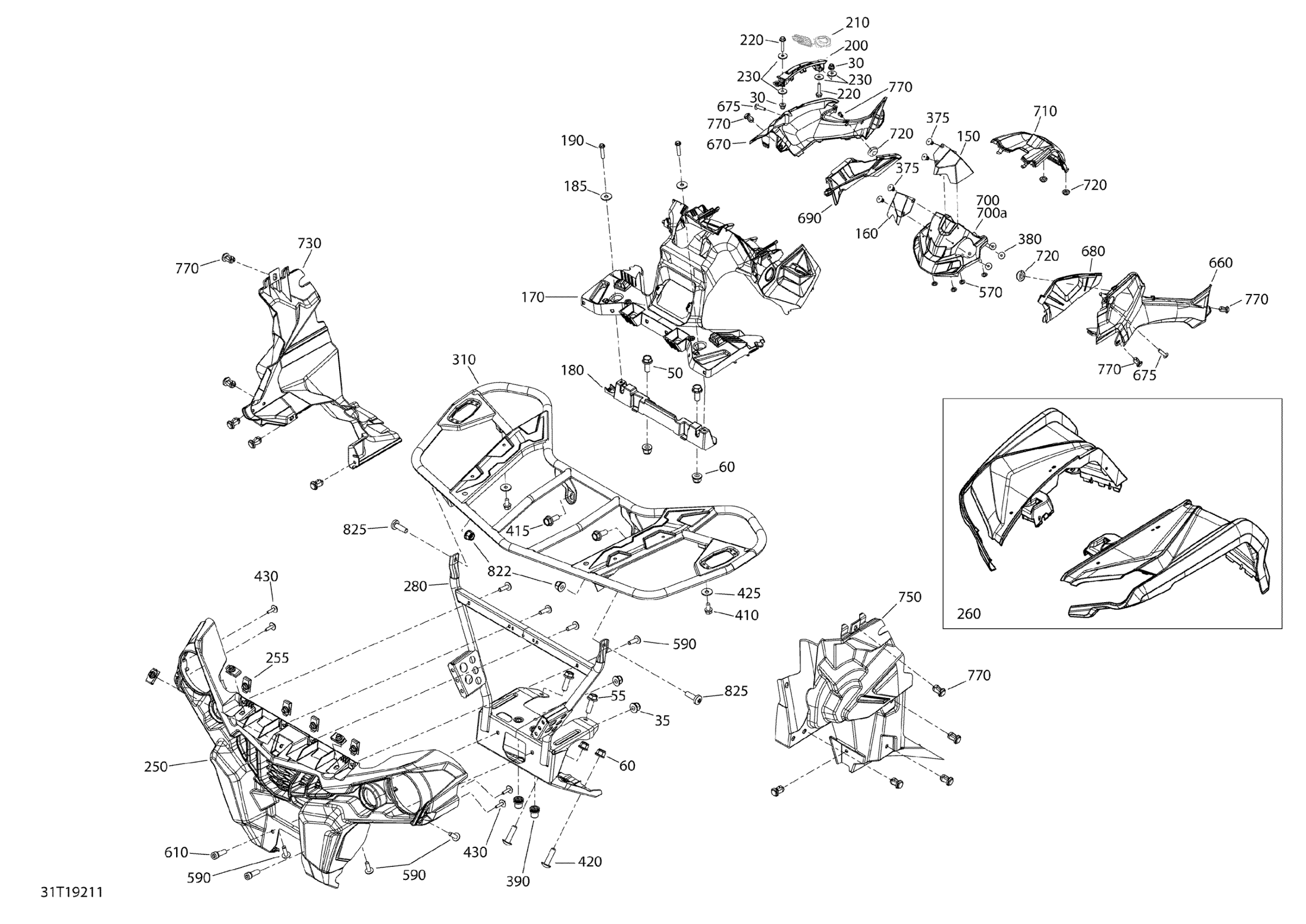

Can-Am Outlander MAX 6X6 - 450 EFI - T3, 2019 Body And Accessories 6X6 - 450 EFI - Squadron Green - Front Diagram

#

Description
Price

30

Flange Elastic Nut M6

233261434

$3.61

35

Hex. Flange Elastic Nut M10

233201434

$1.63

50

Hex. Flange Screw M8 X 20

207682044

$0.92

55

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

60

Hex. Flange Elastic Nut M8

233281434

$1.74

150

LH Air Deflector

705006134

$24.58

160

RH Air Deflector

705006135

$23.05

170

Console Support Ass'y | Model-Europe/International

715006101

$54.58

180

Console Support Insert

705010406

$13.85

185

Flat Washer M6, Stainless

234062600

$0.64

190

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

200

Shifter Gate

715006171

$41.51

210

Shiftgate Trim | Europe

705005003

$8.46

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

230

Flat Washer

224061201

$1.11

250

Front Facia | Model-Europe

705009335

$92.28

255

Panel Nut M6 X 1.0

250100198

$1.73

260

Squadron Green Front Fender

715006160

$189.97

280

Front Frame

705017337

$243.82

310

Black, Front Luggage Rack

705006887

$226.12

375

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

380

Washer

517124300

$0.16

390

Insert Half Hex Body M8 x 1.25

293450307

$2.03

410

Hex. Flange Screw M6 X 12

210261250

$1.56

415

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

420

Torx Screw M8 X 30

250000886

$1.74

425

Stainless Steel Flat Washer

234062670

$1.74

430

Screw M4 X 16

250000725

$2.87

570

Push Nut

732610072

$1.72

590

Torx Screw M6 X 20

250000722

$1.34

610

Socket Screw M10 x 30 | XT

205003044

$2.61

660

Squadron Green, LH Lateral Panel | Green Model

705009760

$73.82

670

Squadron Green, RH Lateral Panel | Green Model

705009764

$73.82

675

Phillips Screw K40 X 16

250000723

$0.81

680

Deflector_Body Panel Kit

715007008

$51.51

690

Engine Cover

705003444

$20.74

700

Gauge Support | Includes 700 to 700a

705012572

$41.51

710

Dash Kit | Europe, Int'l

715002783

$64.58

720

Grommet

705003264

$3.43

730

RH Front Wheel Arch Protector

705017023

$27.66

750

LH Front Wheel Arch Protector

705017022

$27.66

770

Tuflok Plastic Rivet

293150230

$1.21

822

Elastic Flange Nut M8

233281464

$0.83

825

Pan Torx Screw M8 X 25

250000898

$1.74
