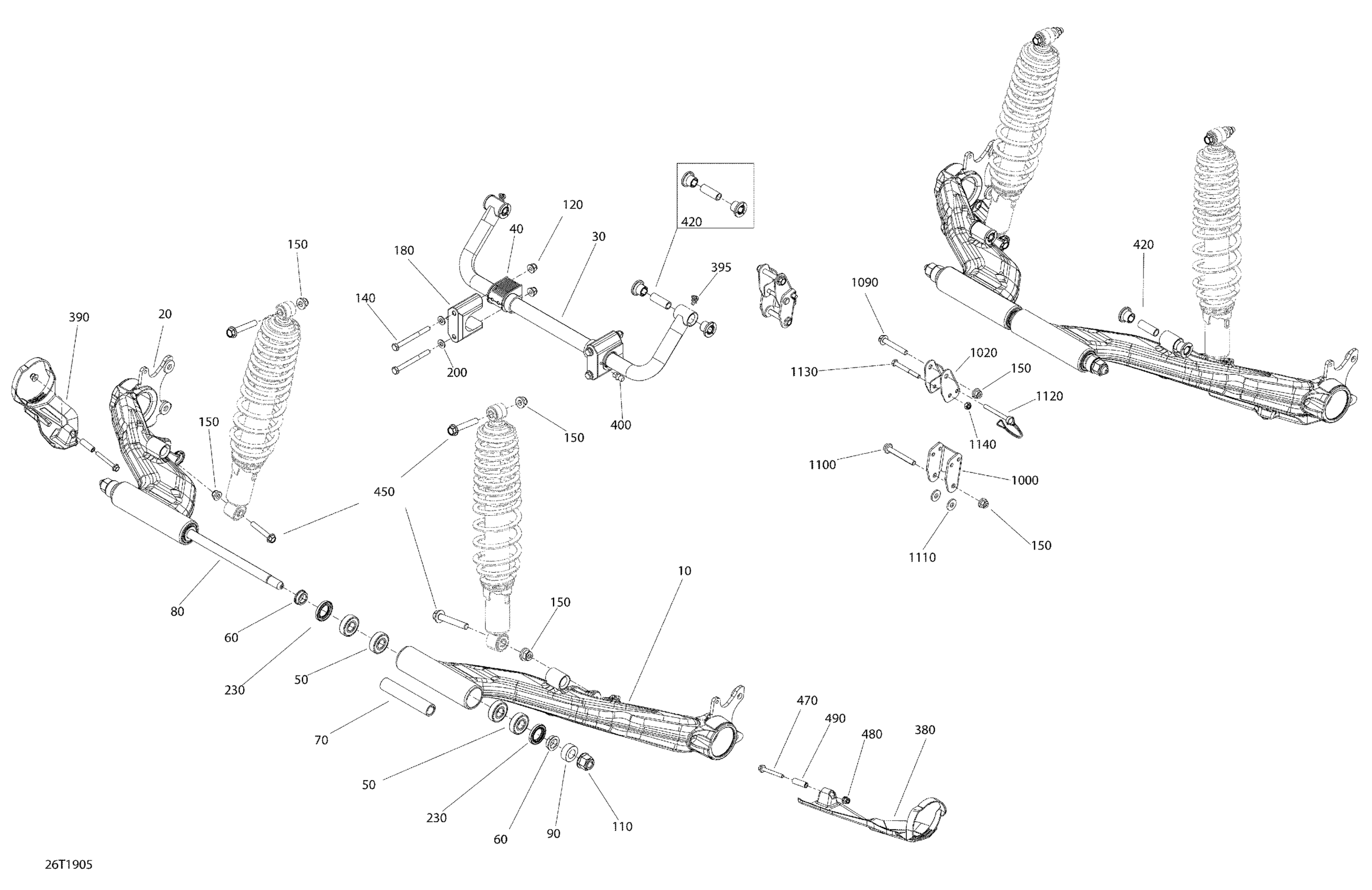

Can-Am Outlander MAX 6X6 - 450 EFI - T3, 2019 Rear Suspension 6X6 - Europe Diagram

#

Description
Price

10

Black LH Rear Swing Arm

706003471

$296.99

20

Black, RH Rear Swing Arm

706004525

$296.99

30

Sway Bar

706001678

$126.99

40

Stabilizer Bar Bushing

706004640

$8.89

50

Ball Bearing

293350145

$13.75

60

Spacer

706001282

$12.99

70

Spacer

706002258

$28.99

80

Axial Pivot M16

706001664

$72.99

90

Flat Washer M17

250200112

$7.99

110

Hex. Flange Elastic Nut M16

233211466

$1.99

120

Hex. Flange Elastic Nut M8

233281434

$2.11

140

Hex. Screw M8 X 85

250001035

$1.89

150

Hex. Flange Elastic Nut M10

233201436

$2.11

180

Bushing Holder

706001099

$33.99

200

Flat Washer M8

234081430

$2.11

230

Seal

293200144

$5.09

380

LH Protector

706002482

$15.82

390

RH Protector

706002483

$14.82

395

Grease Fitting 90°

293550056

$1.15

400

Grease Fitting

250000315

$5.82

420

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

450

Hex. Flange Screw M10 X 6

207606046

$4.12

470

Hex. Flange Screw M6 X 50

207665044

$4.12

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

490

Bushing

707001376

$5.24

1000

Linkage Outer Part

706003107

$24.99

1020

Linkage Inner Part

706003109

$24.99

1090

Hex. Flange Screw M10 X 65

207606536

$4.44

1100

Hex. Flange Screw M10 X 75

250001038

$6.77

1110

Washer

505073634

$2.42

1120

Pin Onto The Shaft

706001602

$15.80

1130

Hex. Screw M8 X 70

207087044

$2.19

1140

Hex. Elastic Stop Nut M8

232581414

$0.56
